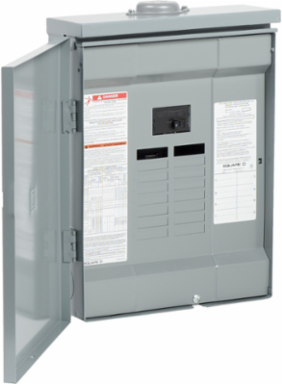

Square D CQO18M100RB100 QO Loadcentre 100A, 1 Phase, 8 Spaces, NEMA 3R, CSA
- MPN: CQO18M100RB100
- UPC: 785901252061
- PPN: SCH-CQO18M100RB100
CAD
$535.14
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
CQO Load Centers offer premium features by allowing QO breakers, ground arc fault interrupters arc fault interrupters and surge arresters to be installed inside CQO Load Centers enable the use of a full complement of accessories. Systems can be single or three phase and have indoor and outdoor versions. Indoor enclosures are designed to rotate 180 degrees to accommodate top or bottom service entrance feed which saves expensive service cable. CQO Load Centers feature plated copper bus, providing superior performance and durability. This CQO load center with a factory installed 100A main breaker that has bus rated 100A single phase. This CQO load center provides a 22 kA breaking capacity. This system provides 18 spaces in a NEMA 3R outdoor enclosure. The electrical connections are lugs. The box lugs will accept a wire range of 6 AWG to 2/0 AWG copper or aluminum wire. Load center has a surface mounted cover. CQO load centers are CSA certified.
Features
- This 100-amp load center features the industry-leading Schneider Electric QO "Plug-On Neutral" architecture, which allows compatible CAFI and GFI breakers to connect directly to the neutral bar. By eliminating the need for pigtails, you significantly reduce wire clutter within the enclosure, speeding up installation for electrical contractors and ensuring a cleaner, more professional panel layout that is easier to troubleshoot.
- Housed in a rugged, galvanized steel NEMA 3R rainproof enclosure, this unit is specifically designed for outdoor or exposed residential and commercial applications. The superior corrosion resistance and protective "B-hub" compatibility ensure your electrical distribution remains safe and operational despite rain, sleet, or snow, making it the ideal choice for exterior service entrances or detached garage sub-panels.
- Featuring 8 physical pole spaces that accommodate up to 16 circuits when utilizing QO tandem breakers, this compact panel offers maximum wiring flexibility within a small footprint. This high circuit-to-space ratio allows you to dedicate separate lines for modern essentials like EV chargers, heat pumps, and workshop equipment without needing to upgrade to a physically larger, more expensive enclosure.
- Engineered with an innovative shielded copper bus bar, this panel supports the latest Square D QO plug-on neutral circuit breakers. By eliminating the need for pigtail wires on Arc Fault (AFCI) and Ground Fault (GFCI) breakers, you achieve a significantly cleaner gutter space, faster installation times, and reduced points of failure, ensuring your home is equipped with the highest level of fire and shock protection.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | United States |
|---|
| Depth | 95 mm |
|---|
Complementary Attributes
| Line Rated Current | 100 A |
|---|
Important Information Attributes
| Persona Type Ids | EU, LC, SC |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 3.5392339286, 4 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0082614019, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 0.1 kg CO2 eq., 0.087341 |
| Local Publishable Date | 2026-07-14 |
| Stocking Flag | Y |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | No |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...1/0 AWG copper14 AWG...12 AWG aluminium |
| Device Composition | grounding bar (factory installed) |
| Enclosure Material | welded galvannealed steel |
| Load Center Type | main breaker |
| Mounting Mode | vertical |
| Number Of Spaces | 8 |
| Phase | 1 phase 3 wires |
| Product Or Component Type | Load Center |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Sustainable Packaging | No |
| Pep Code | ENVPEP2212001EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | extrapolated product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 483 mm |
| Certificate Agency | CSA |
| Short-circuit Current | 22 kA |
| Package Weight(Lbs) | 10.478 kg |
| Warranty (In Months) | 18 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 1.0634 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 1.1758 |
| Water Pollution (M3) Operational Energy Use [B6] | 4.3059 |
| Persona Type Names | End User, Contractor, Electrician |
|---|---|
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 1 kg CO2 eq., 1.0977553046 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 76 kg CO2 eq., 75.5533676471 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 1 |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | No |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Cover Type | surface cover |
| Electrical Connection | lugs |
| Energy Efficiency Optimized | False |
| Material | tin plated copper: busbar |
| Number Of Circuits | 16 |
| Number Of Tandem Circuit Breakers | 8 |
| Product Availability | Stock - Normally stocked in distribution facility |
| Provided Equipment | grounding bar |
| Returnability | Yes |
| Surface Finish | baked enamel Gray |
| Total Lifecycle Carbon Footprint | 80 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect persons during 20 years against direct contact with live parts and allow grouping monitoring, control and protection devices in a single enclosure or a cabinet having the following dimensions 858mm×361mm×95mm, comply with UL 67 and CSA22.2 with an available offer:& 10•Suitable for use on 120/240 Vac and 48 Vdc systems& 10•Rated 30 to 400 amps 2 to 60 circuits& 10•3/4" circuit breaker width& 10•Single and three phase |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Lexington |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 88 |
| Width Nominal | 362 mm |
| [Ue] Rated Operational Voltage | 120/240 V AC |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Operational Energy Use [B6] | 7.4172 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 1.1052 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 1.1052 |
| Customs Code | 8537109150 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Take Back | No |
| Mercury Free | Yes |
| Environmental Disclosure | ENVPEP2212001EN |
| Nema Degree Of Protection | NEMA 3R weatherproof enclosure |
| Packaging Without Single Use Plastic | No |
| Pep Code | ENVPEP2212001EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Ambient Air Temperature For Operation | -5 °C, -5 °C, 40 °C |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 80.2859592821 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | No |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Phase | 1 phase 3 wires |
|---|---|
| Provided Equipment | grounding bar |
| Product Or Component Type | Load Center |
|---|---|
| Range Of Product | QO |
ETIM
| ETIM 8 | EC000214 |
|---|
| ETIM 9 | EC000214 |
|---|
