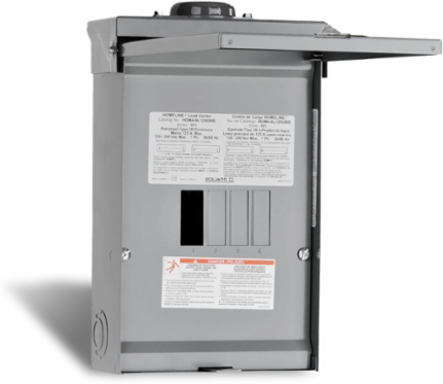

Schneider Electric CHOM48L125GRB Homeline Loadcentre 125A, 4 Spaces, 8 Circuits, NEMA 3R

Homeline Loadcentre 125A, 4 Spaces, 8 Circuits, NEMA 3R
  • MPN: CHOM48L125GRB
  • UPC: 785901852643
  • PPN: SCH-CHOM48L125GRB

Spec sheet

  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below
    • In Stock

    Company Stock:

    00

    Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    CAD$165.37/ EA

    Description

    CHOM Load Centers offer features HOM breakers, ground fault circuit breakers and arc fault interrupters. CHOM Load Centers enable the use of a full complement of accessories. Systems are single phase and are rated for indoor use or are rain proof. CHOM load centers are designed for residential and industrial use to protect electrical systems, equipment and people. This CHOM Load Center has main lugs that are rated at 125A single phase. This CHOM load center provides a 10kA breaking capacity. This system provides 4 spaces in a NEMA 3R enclosure. A grounding bar is included but not installed. The box lugs will accept a wire range of 4 AWG to 2/0 AWG copper or aluminum wire. HOM Homeline load centers are CSA certified.

    Specifications

    Amperage
    125 A
    Short-Circuit Current
    10 kA
    Number Of Circuits
    8
    Loadcentre Type
    Main lugs
    Wiring Configuration
    3-wire
    Ambient Operating Temperature
    -5 °C to 40 °C (23 °F to 104 °F)
    Enclosure Material
    welded sheet steel
    Device Composition
    grounding bar (factory installed)
    Cover Type
    surface cover
    Certification
    CSA Certified
    Toxic Heavy Metal Free
    Yes
    Environmental Disclosure
    ENVPEP1403002
    Rohs Exemption Information
    Yes
    Range Of Product
    Homeline
    Voltage120/240 V AC
    Number Of Spaces4
    Number Of Tandem Circuit Breakers4
    Electrical Connectionlugs
    PhaseSingle phase
    Materialtin plated aluminum (busbar)
    Busbar Materialtin plated aluminum
    Mounting Modewall mount
    Nema Degree Of ProtectionNEMA 3R indoor/outdoor
    Mercury FreeYes
    Eu Rohs DirectiveCompliant
    China Rohs RegulationPro-active China RoHS declaration
    Cover Plate Colour Tintgrey baked enamel
    Product Or Component TypeLoadcentre
