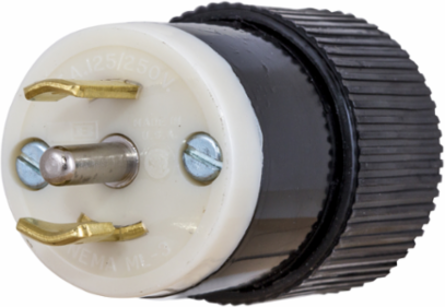

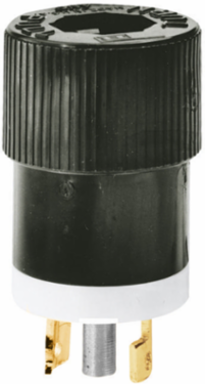

Hubbell 7485NP Midget Locking Male Plug, 15A 125/250V, 3-Pole, 3-Wire, Composite, 1.25 Inch
- MPN: 7485NP
- UPC: 781786669406
- PPN: HBL-7485NP
- UNSPSC: 39121402
CAD
$33.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Bryant Midget Locking, Industrial, Male Plug, 15A 125/250V, 3-Pole 3-Wire Non Grounding, ML-3P, Screw Terminal, Black
Features
- Smaller body size for use in tighter fit applications where larger products can't
- Abuse resistant nylon housing
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.60 in
- Amperage Rating
- 15 A
- Cord Type
- All Listed Portables
- NEMA Rating
- ML-3P
- Number of Wires
- 3-Wire
- Size
- 1.25 in x 1.25 in x 1.60 in
- Type
- Plugs
- Wire Size
- #18 AWG to #12 AWG
- Width
- 1.25 in
- Display Size
- Midget Locking
- Number Of Poles
- 3-Pole
- Style
- Non-Grounding
- Description - Invoice
- LKG PLUG,MIDGET,15A 125/250V, ML-3P,BRY
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 0.75 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.650 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 661.050 lb.
Dimensions1.25 in x 1.25 in x 1.60 in
Length1.25 in
ApplicationExtra Heavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
PhaseSingle Phase
Special FeaturesStandard Product
Voltage Rating125/250 V
Voltage Rating Description125/250 V
ConnectivityScrew Terminals
Nema RatingML-3P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A172
Cord Diameter0.281-0.625 in
MaterialComposite
BOX SIZE3.900x7.000x4.400 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786669406
Case - Total Units50 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70781786669405
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
