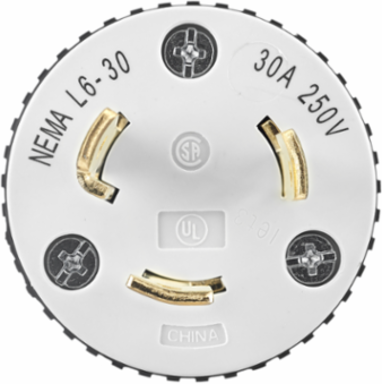

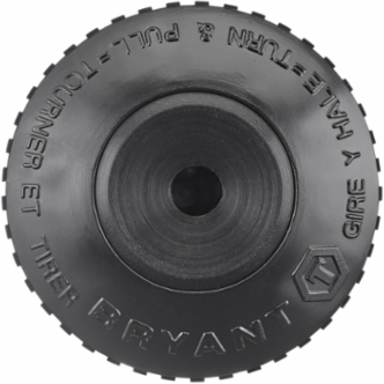

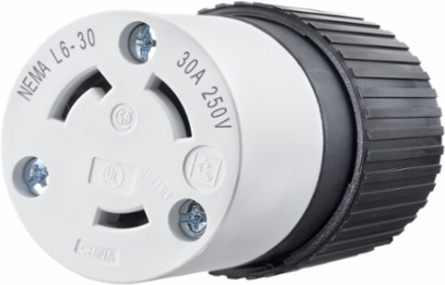

Bryant 70630NCCR Industrial Female Connector Body, 30A 250V, 2-Pole 3-Wire, Cord Clamp, Yellow
- MPN: 70630NCCR
- UPC: 781786706354
- PPN: HBL-70630NCCR
- UNSPSC: 39121402
CAD
$166.57
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Female Nylon Connector Body, 30A 250V, 2-Pole 3-Wire Grounding, L6-30R, Screw Terminal, Black and White.
Features
- Nickel-plated copper-alloy metallic components
- Molded of impact/chemical resistant high-visibility yellow nylon
- Stainless steel screws
- Triple Gripper® cord grip on plugs and connectors which feature three captive assembly screws to automatically tighten cord grip
- Individual wire pockets with clamp-type terminals
- Corrosion Resistant
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 3.90 in
- Amperage Rating
- 30 A
- Color
- Yellow, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Corrosion Resistant
- Voltage Rating
- 250 V
- Voltage Rating Description
- 250 V
- Connectivity
- Screw Terminals
- Nema Rating
- L6-30R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Cord Diameter
- 0.300-0.950 in
- Material
- Composite
- BOX SIZE
- 5.300x14.600x6.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786706354
- Each - Pack Description
- Each
Dimensions2.13 in x 2.13 in x 3.90 in
Length2.13 in
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL6-30R
Number of Wires3-Wire
Size2.13 in x 2.13 in x 3.90 in
TypeConnector Body
Wire Size#18 AWG to #8 AWG
Width2.13 in
Display SizeStandard Sized
Number Of Poles2-Pole
StyleInternal Cord Clamp
Description - InvoiceLKG PLUG, 30A 250V, L6-30P, B/W
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
