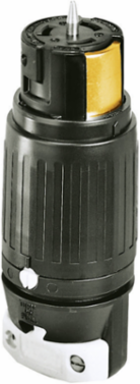

Bryant CS6364 Locking Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, 6.50 Inch
- MPN: CS6364
- UPC: 781786611771
- PPN: HBL-CS6364
- UNSPSC: 39121421
CAD
$325.75
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Female Connector Body, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Heavy Duty Black
Features
- Box terminal with hex socket threaded slug, permits high clamping pressure on conductors without damaging strands
- Thermoplastic polyester interior provides heat resistance and impact strength
- Oversized contacts minimize operating temperature
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Number of Conductors
- 4-Wire Grounding
- Size
- 6.50 in x 2.56 in x 2.56 in
- Country of Origin
- United States
- Dimensions
- 6.50 in x 2.56 in x 2.56 in
- Length
- 6.50 in
- Voltage Rating Description
- 125/250 VAC
- Amperage Rating
- 50 A
- Conductor Range
- #6 AWG
- Display Size
- Standard Sized Product
- Insulation
- Insulated Body
- Number Of Poles
- 3-Pole
- Style
- Extra Heavy Duty
- Type
- Connector Body
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A171
- Cord Diameter
- 0.830-1.250 in
- Material
- Composite
- BOX SIZE
- 8.200x13.400x7.200 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 781786611771
- Each - Pack Description
- Each
Number of Poles3-Pole
Special FeaturesStandard Product
ColorBlack
Height2.56 in
Voltage Rating125/250 VAC
Width2.56 in
ApplicationHeavy Duty Industrial
ConnectivityPressure Terminal Screws
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number Of Conductors4-Wire Grounding
Number Of Wires4-Wire
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Wire Size#8 AWG to #4 AWG
Description - InvoiceLKG CONN, 3P4W, 50A 125/250V
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareCord Mounted
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack11.2 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
