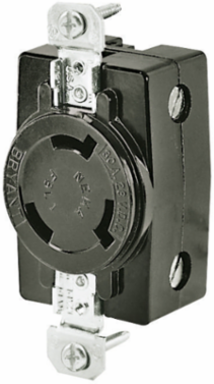

Bryant FSL1FR Industrial Flush Receptacle 30A 28VDC 2-Pole 3-Wire Size 3.28 x 1.71 x 1.14 Inch
- MPN: FSL1FR
- UPC: 781786638228
- PPN: HBL-FSL1FR
- UNSPSC: 39121406
CAD
$91.11
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Industrial, Flush Receptacle, 30A 28VDC, 2-Pole 3-Wire Grounding, NEMA FSL1, Screw Terminal, Black.
Features
- Combination back and side wiring terminals accept #14 through #8 AWG solid or stranded conductors
- Heavy duty mounting straps are nickel-plated to resist corrosion, wide width design assures secure assembly
- NEMA rating and configuration are molded into face for easy identification
- One-piece, rivetless copper-alloy contact design reduces heat buildup and provides secure blade retention
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Height
- 1.14 in
- Length
- 3.28 in
- Application
- Extra Heavy Duty Industrial Specification Grade
- NEMA Rating
- FSL1-R
- Number of Wires
- 3-Wire
- Size
- 3.28 in x 1.71 in x 1.14 in
- Standard
- WR Rating
- Voltage Rating
- 28 VDC
- Voltage Rating Description
- 28V DC
- Connectivity
- Terminal Screws
- Nema Rating
- FSL1-R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A172
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 2.6 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 7.800 lb.
- Lowest Level UOM
- Each
Dimensions3.28 in x 1.71 in x 1.14 in
Industry Standard(s)WR Rating
Amperage Rating30 A
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesStandard Product
TypeReceptacle
Wire Size#14 AWG to #8 AWG
Width1.71 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
StyleSingle Receptacle
Description - InvoiceLKG RCPT, 30A 28V, FSL1R
Harmonization Code8536698000
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialComposite
BOX SIZE3.200x8.600x4.300 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack781786638228
Case - Total Units30 EA
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
