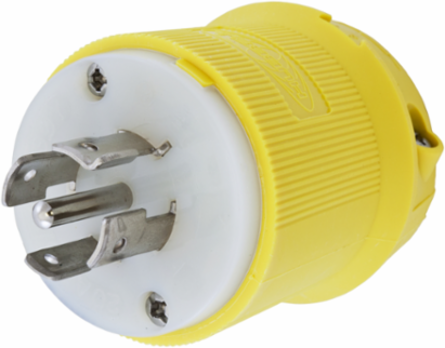

Hubbell Wiring Device-Kellems HBL25CM11 Twist-Lock Corrosion Resistant Plug 20A 120/208V 4-Pole
- MPN: HBL25CM11
- UPC: 783585038711
- PPN: HBL-HBL25CM11
- UNSPSC: 39121403
CAD
$113.48
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Twist-Lock® Corrosion Resistant Insulgrip® Plug, 20A, 3 Phase Y 120/208V AC, 4-Pole, 5 Wire Grounding, NEMA L21-20P Nylon
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design protects terminations from excess strain
- Integral dust shield protects wiring chamber from dust or contaminants
- Corrosion Resistant
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.75 in x 2.33 in x 2.33 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstand 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
- Application
- Extra Heavy Duty Industrial/Marine
- Cord Type
- All Listed Portables
- NEMA Rating
- L21-20P
- Number of Wires
- 5-Wire Grounding
- Size
- 2.75 in x 2.33 in x 2.33 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.3 lb.
- Engineering Drawing 1 Display Text
- HBL25CM11 AutoCAD Drawing
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L21-20P
- Number Of Wires
- 5-Wire Grounding
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 25CM11
- Cord Range
- 0.350"-1.150" (9-29)
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.850 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height2.33 in
Length2.75 in
Amperage Rating20 A
ColorYellow
Environmental ConditionsCorrosion Resistant
Number of Poles4-Pole
Phase3 Phase WYE
Special FeaturesCorrosion Resistant
Voltage Rating120/208 VAC
Voltage Rating Description120/208 VAC
Width2.33 in
ConnectivityPressure Terminal Screws
Display SizeStandard Sized
Number Of Poles4-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG PLUG,CM,20A 3PH120/208V,L21-20P,YL
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A110
Material - Mounting HardwareCord Mounted
MaterialNylon
BOX SIZE5.495x8.625x6.875 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585038711
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- Listings
- UL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
