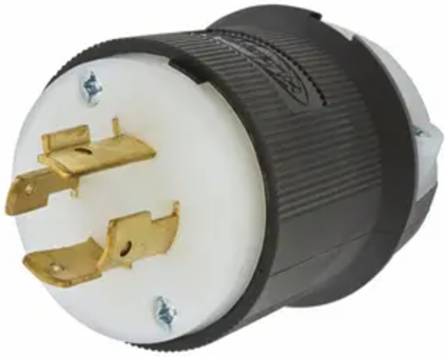

Hubbell Wiring Device-Kellems HBL2421 Twist-Lock® Male Plug, 20A 3-Phase 250V AC, 4-Wire, L15-20P
- MPN: HBL2421
- UPC: 783585038193
- PPN: HBL-HBL2421
- UNSPSC: 39121402
CAD
$53.28
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Male Insulgrip® Plug, 20A 3-Phase 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-20P, Screw Terminal, Black and White Nylon.
Features
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- Phase
- 3-Phase
- Number of Wires
- 4-Wire
- Cord Range
- 0.350-1.150 in (9-29 mm)
- Dielectric Strength
- Withstands 2,000 V minimum
- Width
- 2.33 in
- Size
- 2.33 in x 2.33 in x 2.75 in
- Terminal Accommodation
- #16 AWG to #8 AWG stranded copper wire
- Connectivity
- Pressure Terminal Screws
- Compliance
- Certified to CSA C22.2 No.42; Listed to UL 498; RoHS Compliant
- Flammability Rating
- HB or better per UL94/CSA 22.2 No.0.17
- Country of Origin
- US
Voltage250 V AC
Number of Poles3-Pole
Horsepower3 HP
Operating Temperature-40C to 75C continuous
Length2.33 in
Height2.75 in
MaterialNylon
Terminal Screws#10-32 Brass (Phillips / Slotted / Robertson)
NEMA RatingL15-20P
Environmental SuitabilityIP20 moisture resistance, Indoor Dry Unless Protected
ColorBlack and White
