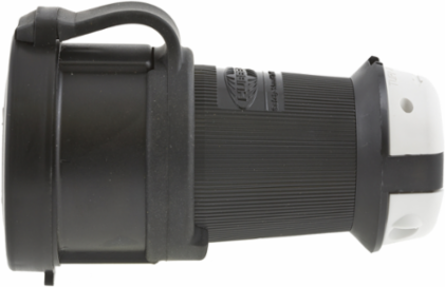

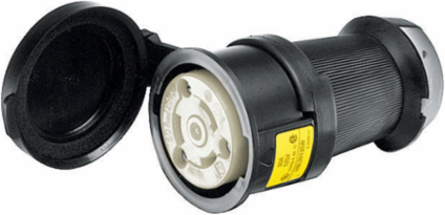

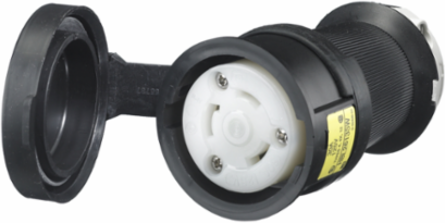

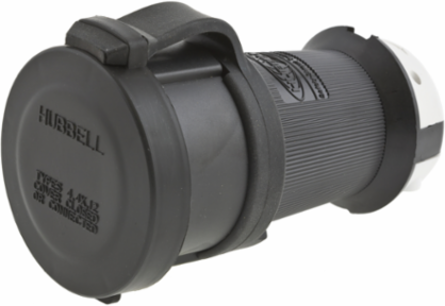

Hubbell Wiring Device-Kellems HBL2613SW Locking Female Connector Body 30A 125V L5-30R Watertight 2-Pole 3-Wire
- MPN: HBL2613SW
- UPC: 783585231624
- PPN: HBL-HBL2613SW
- UNSPSC: 39121421
CAD
$226.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 30A 125V AC, 2-Pole 3-Wire Grounding, NEMA L5-30R, Screw Terminal, Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 2.57 in x 2.57 in x 4.40 in
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 30 A
- Color
- Black, White
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Special Features
- Shrouded Watertight Construction
- Type
- Connector Body
- Voltage Rating Description
- 125 V
- Width
- 2.57 in
- General Literature Asset 1 Display Text
- Entertainment Product Solution Guide
- General Literature Asset 3 Display Text
- Pulp & Paper Solutions
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L5-30R
- Number Of Wires
- 3-Wire
- Phase
- Single Phase
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A130
- Cord Range
- 0.360"-0.930" (9-24)
- Cord Diameter
- 0.325-0.930 in
- Material
- Composite
- BOX SIZE
- 5.900x18.600x8.100 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585231624
- Case Weight
- 7.400 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 47.200 in
- Pallet Weight
- 710.400 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating30 A
Height4.40 in
Length2.57 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsWatertight
NEMA RatingL5-30R
Size2.57 in x 2.57 in x 4.40 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating125 V
Weight0.55 lb.
Engineering Drawing 1 Display TextHBL2613SW AutoCAD Drawing
General Literature Asset 2 Display TextWiring Device Solutions for Strategic Manufacturing Facilities
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Wire Size#16 AWG to #8 AWG
Description - InvoiceLKG WT S/SHRD CONN, 30A 125V, L5-30R
Harmonization Code8536694020
MSDS FlagNo
Cable Range0.360 - 0.930 in
Material - Mounting HardwareCord Mounted
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack6.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585231623
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
