Schneider Electric 70-788EL11-1 Socket, General Purpose Relays, for 782 relays, 3PDT, 11 pins, output lift terminals solid/stranded, separate contact, 25A, 300V
Schneider Electric 70-788EL11-1 Socket, General Purpose Relays, for 782 relays, 3PDT, 11 pins, output lift terminals solid/stranded, separate contact, 25A, 300V
- MPN: 70-788EL11-1
- PPN: SCH-70-788EL11-1
- UNSPSC: 39122335
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$16.55/ EA
Description

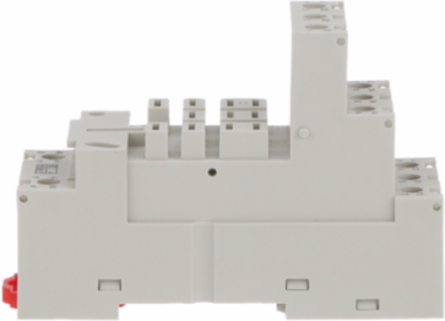

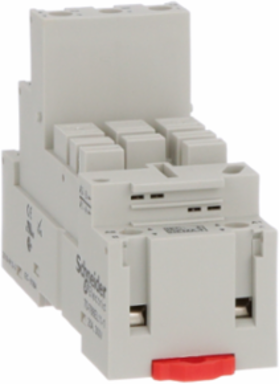

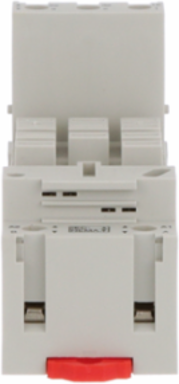

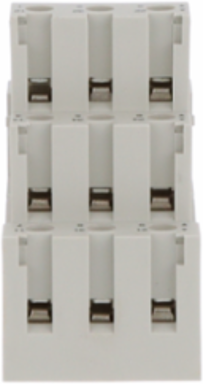

Legacy general purpose relay series accessory , optional socket for 782R series relays with 3PDT configuration contacts rated 25A at 300V. Lift connect terminals 11 pins offer customizable solutions including protection modules, holddown clips, and ID tags. Socket is finger-safe according to IP20, and compatible with DIN rail or panel mounting.
Features
- Compatible with plug in control relay Schneider Electric
- It is flexibility design for space-saving
- Easy installation and connect to the relay from its socket
- Workablity for hard-wired logic automated systems to complement the functions of industrial PLCs
Specifications
Conformance Attributes
- Product Certifications
- UL, CSA, CE
Complementary Attributes
- Line Rated Current
- 25 A
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Tightening Torque
- < 0.8 N.m, < 0.8 N.m
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.2 kg CO2 eq., 0.2267930175
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 1 kg CO2 eq., 1.1452967581
- Connections Terminals
- lift terminals solid for output, lift terminals stranded for output
- Local Data Status
- Publishable
- Legacy WEEE Scope
- Out
- EOLI Availability Display
- No need of specific recycling operations
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- ROHS EUR In Scope
- No
- ROHS EUR Full Compliance Status
- Pro-active compliance (Product out of EU RoHS legal scope)
- China ROHS In Scope
- Yes
- With Recycled Cardboard
- Yes
- Product Contributes To Saved And Avoided Emissions
- No
- Function Option Id
- STANDARD
- Contacts Type And Composition
- 3 NO + 3 NC
- Flame Retardance
- UL94-V0
- Product Availability
- Stock - Normally stocked in distribution facility
- Range Of Product
- Legacy
- Sustainable Packaging
- Yes
- Total Lifecycle Carbon Footprint
- 1 kg CO2 eq.
- Medium Desc
- Socket, General Purpose Relays, for 782 relays, 3PDT, 11 pins, output lift terminals solid/stranded, separate contact, 25A, 300V
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- This socket form a part of a circuit and are used to mount a relay.They provide the electrical interface between the relay itself and the circuit during 20 years and product is adhering to UL standard UL E70550.
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; CN
- Energy Model Use B6 2
- Electricity Mix; Production mix; Low voltage; US
- Contact Terminal Arrangement
- separate
- Ue Rated Operational Voltage5
- 300 V
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Carbon Footprint Of The Distribution Phase A40.0335233915, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase B2 B3 B4 B60 kg CO2 eq., 0
Connections Terminals3lift terminals solid for output, lift terminals stranded for output
Local Publishable Date2026-01-12
Scope PerimeterOutside of Europe
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
ROHS EUR StatusCompliant
ROHS EUR Full Compliance Status IdPRO_ACTIVE_COMPLIANCE
Green Premium Status For ReportingGreen Premium product
Without Single Use PlasticYes
Return IndicatorY
Function OptionStandard
Fixing Modeclip-on 35 mm symmetrical DIN rail
Package Weight Lbs96 g
Product Or Component Typesocket
ReturnabilityYes
Switch Function3PDT
Ue Rated Operational Voltage2300 V
Stocking FlagN
Pep CodeENVPEP2202006EN
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Energy Model Installation A5 2Electricity Mix; Production mix; Low voltage; US
Energy Model End Of Life C1 C4 2Electricity Mix; Production mix; Low voltage; US
Global Commercial StatusEnd of commerc. announced
Environment Attributes Main
- EU ROHS Directive
- Compliant , Pro-active compliance (Product out of EU RoHS legal scope)
- ROHS Exemption Information
- Yes
- Reach Free SHVC
- Yes
- China ROHS Regulation
- X
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -40-55 °C
- Environmental Disclosure
- ENVPEP2202006EN
- Packaging Made With Recycled Cardboard
- Yes
- Reach Free Of SVHC
- Yes
- Pep Code
- ENVPEP2202006EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Product Compatibilityrelay 788XBXR/XCXR, suppressor module 70-ASMM, diode 70-ASMD, signalling device 70-ASMLG
Take BackNo
Recycled Metal Content At Cr Level0 %
Toxic Heavy Metal FreeYes
Carbon Footprint1.4056131671
Ambient Air Temperature For Storage-40-105 °C
IP Degree Of ProtectionIP20
Packaging Without Single Use PlasticYes
Reach RegulationFree of Substances of Very High Concern above the threshold
Pep Verification Date2023-01-01
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- socket
Range Of ProductLegacy
Specifications
- Depth
- 57 mm
