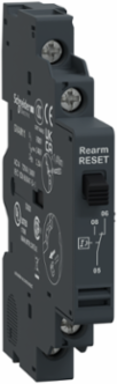

Schneider Electric GVAM11 TeSys Deca Short-Circuit Signalling Contact Block 1C/O for GV2/GV3, 2A/240V AC

  • MPN: GVAM11
  • PPN: SCH-GVAM11
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $87.88

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    TeSys GV auxiliary contact block, for motor circuit breakers GV2 and GV3. 1C/O contact for short circuit signaling. Rated for operation up to 2A/240V AC and 1A/60V DC. To be installed on left-hand side of the circuit breaker (1 block mounting maximum), connection by screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC).

    Features

    • Engineered with an explicit 1 C/O (Changeover/SPDT) contact mechanism, the GVAM11 triggers exclusively during high-current short-circuit events rather than everyday thermal trips. This immediate segmentation allows automated control networks or system operators to diagnose severe electrical faults instantly, avoiding risky, blind motor restarts and reducing machine troubleshooting downtime.
    • This auxiliary block offers plug-and-play mechanical compatibility across the entire Schneider Electric TeSys Deca family, seamlessly fitting GV2L, GV2LE, GV2ME, GV2P, GV2RT, GV3L, and GV3P series motor circuit breakers. This universal design ensures control panel builders can standardize on a single signaling component for varied motor frames, minimizing active inventory overhead and parts-matching confusion.
    • Built for sleek, snap-on installation on the left-hand side of the motor starter, this 9.3 mm ultra-slim module requires zero mounting hardware or specialty brackets. It expands your system's signaling metrics without consuming premium DIN-rail space, allowing field technicians to complete control panel retrofits and additions in seconds.
    • Rated to safely manage voltages from 24 to 240V AC and 24 to 60V DC with a minimum switching capacity of 17V / 5mA, this module interfaces smoothly with both traditional relay control loops and modern solid-state PLC inputs. This electrical flexibility ensures clean, low-resistance signal transitions across diverse automation infrastructures without risking signal degradation or contact oxidation.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, Czechia, France, United Kingdom, United States
    Depth66 mm

    Physical Attributes

    Color
    dark grey

    Complementary Attributes

    Rated Operational Power In Va
    36 VA 24-24 V AC-14 1000 cycles 1.5 A, 48 VA 48-48 V AC-14 1000 cycles 1 A, 72 VA 110-127 V AC-14 1000 cycles 0.5 A72 VA 230-240 V AC-14 1000 cycles 0.3 A
    Minimum Switching Current
    5 mA
    Rated Operational Power In W120 W 240 V DC-13 100000 cycles140 W 110 V DC-13 100000 cycles, 140 W 24 V DC-13 100000 cycles180 W 60 V DC-13 100000 cycles240 W 48 V DC-13 100000 cycles15 W 48 V DC-13 1000 cycles, 24 W 24 V DC-13 1000 cycles, 9 W 60 V DC-13 1000 cycles
    Minimum Switching Voltage17 V

    Important Information Attributes

    Persona Type Ids
    EU, LC, OM, OM8, PB, SC
    Market Segmentation Id
    COMMERCIAL, INDUSTRIAL
    Range
    TeSys, TeSys Deca
    [Ui] Rated Insulation Voltage
    690 V IEC 60947-1300 V UL 508, 300 V CSA C22.2 No 14
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0.1 kg CO2 eq., 0.09669577762207152
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    0.3 kg CO2 eq., 0.2692288254132501
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Traceability
    No
    Service Catalog Item
    Finished good
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Free of Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Free of Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant
    Rohs Eur Full Compliance Status
    Compliant
    China Rohs Label
    1
    Without Single Use Plastic
    Yes
    Tier Id
    1
    Function Option Id
    STANDARD
    Product Kit Identifier
    N
    Device Short Name
    GVAM
    Mechanical Durability
    100000 cycles
    Pole Contact Composition
    1 C/O
    Product Or Component Type
    auxiliary contact block
    Returnability
    Yes
    Sustainable Packaging
    Yes
    Total Lifecycle Carbon Footprint
    0.4 kg CO2 eq.
    Pole Contact Comp
    1 C/O
    Pep Code
    ENVPEP2207006EN
    Pep Verification Date
    2025-06-17
    Psr Version
    PSR-0005-ed2-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Installation [A5]
    Electricity Mix; Production mix; Low voltage; FR
    Energy Model - End Of Life [C1-c4]
    Electricity Mix; Production mix; Low voltage; FR
    Height Nominal
    89 mm
    [Ith] Conventional Free Air Thermal Current
    2.5 A for fault signalling
    Nbr. Of Units In Pkg.
    1
    Take-back
    No
    Customs Code
    8536509065
    Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
    Market SegmentationCommercial, Industrial
    Certificate AgencyCB Scheme, CE, UKCA, CCC, cULus, EAC
    Carbon Footprint Of The Distribution Phase [A4]0.012967042303320249, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0034069806388959695, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.0025283999999999997
    Local Publishable Date2026-07-07
    Stocking FlagN
    ServiceabilityNo
    Field Service DivisionPPIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI2207006
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeYes
    Rohs Eur Conformity Date1826
    China Rohs In ScopeNo
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Compatibility CodeGVAM
    Environmental Characteristicnormal environment
    Mounting Locationleft side
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection TypeGB2CB... circuit breakergG fuse 10 A
    Software Versionv5.9.4
    Tightening Torque1.4-1.4 N.m screw clamp terminals
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Auxiliary Contacts Operation 2short-circuit signal
    Database Version2022-01
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo add instantaneous auxiliary contact blocks in front face on TeSys GV Circuit breakers as NO and/or NC contacts for 20 years.
    Functional-unit Unitunit
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Production mix; Low voltage; UE-27
    Energy Model - Use [B6]Electricity Mix; Production mix; Low voltage; FR
    Recyclability Potential In %42
    Width Nominal9.3 mm
    [Ue] Rated Operational Voltage24...240 V AC24...60 V DC
    Package Weight(Lbs)39 g
    Warranty (In Months)18

    Environment Attributes Main

    China Rohs Regulation
    Product out of China RoHS scope , Pro-active China RoHS declaration (out of China RoHS legal scope)
    Take Back
    No
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI2207006
    Eu Rohs Directive
    Compliant
    Packaging Without Single Use Plastic
    Yes
    Reach Regulation
    Free of Substances of Very High Concern above the threshold
    Pep Verification Date
    2025-06-17
    Psr Version
    PSR-0005-ed2-2016 03 29
    Product CompatibilityGV2P, GV2L, GV2ME, GV2LE, GV2RT, GV2LM, GV3P, GV3L
    Reach Free ShvcYes
    Toxic Heavy Metal FreeYes
    Carbon Footprint0.3848270259775378
    Environmental DisclosureENVPEP2207006EN
    Packaging Made With Recycled CardboardYes
    Reach Free Of SvhcYes
    Pep CodeENVPEP2207006EN
    Pcr VersionPEP-PCR-ed4-2021 09 06
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    auxiliary contact block

    ETIM

    ETIM 8
    EC000041
    ETIM 9EC000041

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months
