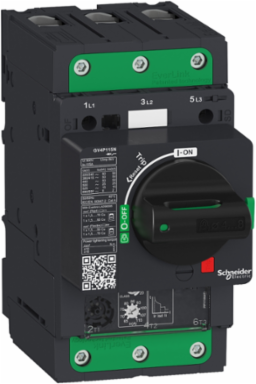

Schneider Electric GV4P80N Motor circuit breaker, TeSys GV4, 3P, 80A, Icu 50kA, thermal magnetic, Everlink terminals
- MPN: GV4P80N
- PPN: SCH-GV4P80N
CAD
$1551.42
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 80A/690V, for protection of 3-phase motors 22-37kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by rotary handle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 40-80A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, United Kingdom, Poland

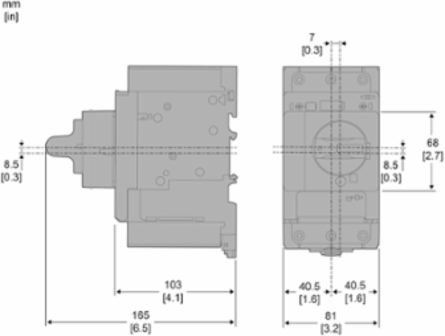

Depth165 mm
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Line Rated Current
- 80 A
- Rated Current
- 80 A
Maximum Operating Rate25 cyc/h
Rated Dutycontinuous IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 5000 cycles AC-3 415 V opening, 5000 cycles AC-3 415 V closing
- Motor Power Kw
- 45-45 kW 660...690 V AC 50/60 Hz, 30-30 kW 400...415 V AC 50/60 Hz, 37-37 kW 500 V AC 50/60 Hz37-37 kW 400...415 V AC 50/60 Hz, 45-45 kW 500 V AC 50/60 Hz, 22-22 kW 400...415 V AC 50/60 Hz, 30-30 kW 500 V AC 50/60 Hz, 37-37 kW 660...690 V AC 50/60 Hz, 55-55 kW 660...690 V AC 50/60 Hz
- Trip Unit Technology
- thermal-magnetic, electronic
- Certificate Agency
- IEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
- Carbon Footprint Of The Distribution Phase [A4]
- 0.47468058383889494, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.4 kg CO2 eq., 0.4230082168262299
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 74 kg CO2 eq., 74.322
- Local Publishable Date
- 2025-04-05
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Device Application
- motor protection
- Direct Connector
- without
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 40000 cycles
- Operating Position
- any position
- Power Dissipation Per Pole
- 4.6 W
- Product Name
- TeSys GV4
- Range
- TeSys Deca
- Returnability
- No
- Suitability For Isolation
- yes IEC 60947-1
- Total Lifecycle Carbon Footprint
- 90 kg CO2 eq.
- R Magnetic Tripping Current
- 1360-1360 A
- Connections Terminals 119 Connections Terminals
- EverLink BTR screw connectors
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential, In %
- 49
- Width Nominal
- 81 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]
- 0.4241
- Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]
- 74.322
- Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]
- 800.39
- Ionizing Radiation, Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]
- 110.51
- Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]
- 2257.1
- Use Of Non-renewable Primary Energy, Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 1893.5
- Water Use (M3 Eq) Operational Energy Use [B6]
- 2.6298
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, shocks 15 gn 11 ms IEC 60068-2-27
Tightening Torque9 N.m 16-95 mm², 5 N.m 1.5-10 mm²
Utilisation Categorycategory A IEC 60947-2, AC-3 IEC 60947-4-1
Connections - TerminalsEverLink BTR screw connectors (bottom): 1 cable(s) 2.5-70 mm² - flexibleEverLink BTR screw connectors (top): 1 cable(s) 1.5-70 mm² - solid, EverLink BTR screw connectors (top): 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-95 mm² - solid
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.825043835911551, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 11.224913395217486
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Use Carbon Footprint74.322
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1704004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1903
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Control Typerotary handle
Device Short NameGV4P
Energy Efficiency OptimizedFalse
Magnetic Tripping Current1360-1360 A
Number Of Poles3P
Phase Failure Sensitivityyes IEC 60947-4-1
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Product Or Component Typemotor circuit breaker
Range Of ProductTeSys GV4
Software Versionv5.9.4
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Rated Current 180 A
Pep CodeENVPEP1704004EN
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal155 mm
[Ith] Conventional Free Air Thermal Current115 A IEC 60947-4-1
[Ui] Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Halogen-free StatusHalogen free plastic parts product
Package Weight(Lbs)1.85 kg
Warranty (In Months)18
Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]74.223
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]1893.5
Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]1.4788
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]10.693
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]363.6
Use Of Renewable Primary Energy, Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]363.6
Environment Attributes Main
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 90.26964603179417
- Circularity Profile
- ENVEOLI1704004EN
- Environmental Disclosure
- ENVPEP1704004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1704004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
