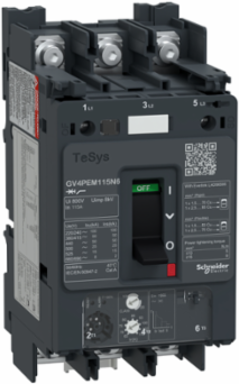

Schneider Electric GV4PEM115N6 Motor circuit breaker, TeSys GV4, 3P, 115A, Icu 50kA, thermal magnetic multifunction, lugs terminals
- MPN: GV4PEM115N6
- PPN: SCH-GV4PEM115N6
CAD
$1685.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
TeSys GV motor circuit breaker, 3 poles (3P), 115A/690V, for protection of 3-phase motors 37-55kW@400V. Multifunction circuit breaker, it provides thermal magnetic protection and advanced motor protection, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection for bars or cables with lugs. Thermal protection adjustable by dials with a setting current Ir in range 65-115A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Advanced protections are adjustable with a smartphone using wireless NFC and include short time delay protection Isd with a setting range 5-13 Ir, phase unbalance and loss protection, ground fault protection, locked rotor (jam), long start. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). It can be equiped externally with 1 or 2 auxiliary SDx modules in order to have alarming and fault differentiation. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Poland
Depth116 mm
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Rated Current
- 115 A
- Maximum Operating Rate
- 25 cyc/h
Line Rated Current115 A
Rated Dutycontinuous IEC 60947-4-1
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Motor Power Kw
- 55-55 kW 500 V AC 50/60 Hz, 37-37 kW 400...415 V AC 50/60 Hz, 45-45 kW 400...415 V AC 50/60 Hz, 55-55 kW 400...415 V AC 50/60 Hz, 45-45 kW 500 V AC 50/60 Hz, 75-75 kW 500 V AC 50/60 Hz, 75-75 kW 660...690 V AC 50/60 Hz, 90-90 kW 660...690 V AC 50/60 Hz, 110-110 kW 660...690 V AC 50/60 Hz
- Rated Current 1
- 115 A
- Carbon Footprint Of The Distribution Phase [A4]
- 0.4598123984982335, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.4 kg CO2 eq., 0.4097585395010464
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 74 kg CO2 eq., 74.322
- Local Publishable Date
- 2025-02-26
- Stocking Flag
- Y
- Device Type
- LV equipment - Low voltage circuit breaker
- Traceability
- Yes
- Average Life Duration
- 15 year(s)
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 7
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- toggle
- Device Short Name
- GV4PEM
- Electrical Durability
- 5000 cycles AC-3 415 V opening5000 cycles AC-3 440 V closing
- Fire Resistance
- 960 °C IEC 60695-2-11
- Mechanical Durability
- 40000 cycles
- Number Of Poles
- 3P
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Range Of Product
- TeSys GV4
- Software Version
- v5.9.4
- Sustainable Packaging
- No
- Total Lifecycle Carbon Footprint
- 90 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- Protect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
- Functional-unit Unit
- unité (unit)
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Production mix; Low voltage; CZ
- Energy Model - Use [B6]
- Electricity Mix; Production mix; Low voltage; UE-27
- Recyclability Potential In %
- 49
- Width Nominal
- 81 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Halogen-free Status
- Halogen free plastic parts product
- Package Weight(Lbs)
- 1.475 kg
- Warranty (In Months)
- 18
- Climate Change - Fossil Fuels ( Kg Co2 Eq.) Operational Energy Use [B6]
- 74.223
- Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]
- 1893.5
- Impacts Related To Land Use/Soil Quality (-) Operational Energy Use [B6]
- 1.4788
- Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]
- 10.693
- Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
- 363.6
- Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
- 363.6
- Customs Code
- 8536200020
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Trip Unit Technologyelectronic, thermal-magnetic
Certificate AgencyIEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
Carbon Footprint Of The End-of-life Phase [C1 To C4]3.7052338781741825, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]11 kg CO2 eq., 10.873320980286081
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityYes
Field Service DivisionPPIBS
Use Carbon Footprint74.322
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1704004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1903
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Connection Pitch27 mm without spreaders35 mm with spreaders
Device Applicationmotor protection
Direct Connectorwithout
Energy Efficiency OptimizedFalse
Magnetic Tripping Current1955-1955 A
Mechanical Robustnessvibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6shocks 15 gn 11 ms IEC 60068-2-27
Operating Positionany position
Power Dissipation Per Pole4.6 W
Product NameTeSys GV4
RangeTeSys Deca
ReturnabilityNo
Suitability For Isolationyes IEC 60947-1
Tightening Torque9 N.m 16-95 mm²5 N.m 1.5-10 mm²
Utilisation Categorycategory A IEC 60947-2AC-3 IEC 60947-4-1
Pep CodeENVPEP1704004EN
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y20
Energy Model - Installation [A5]Electricity Mix; Production mix; Low voltage; UE-27
Energy Model - End Of Life [C1-c4]Electricity Mix; Production mix; Low voltage; UE-27
Height Nominal155 mm
[Ith] Conventional Free Air Thermal Current115 A IEC 60947-4-1
[Ui] Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Connections - Terminalslugs-ring terminals
Nbr. Of Units In Pkg.1
Take-backNo
Acidification (Ap) (Mole Of H+ Equiv) Operational Energy Use [B6]0.4241
Climate Change - Total ( Kg Co2 Eq.) Operational Energy Use [B6]74.322
Ecotoxicity (Fresh Water) (Ctue) Operational Energy Use [B6]800.39
Ionizing Radiation Human Health (Kbq Of U235 Equiv.) Operational Energy Use [B6]110.51
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]2257.1
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]1893.5
Water Use (M3 Eq) Operational Energy Use [B6]2.6298
Environment Attributes Main
- Ambient Air Temperature For Storage
- -50-85 °C, -50-85 °C
- Halogene Performance
- Halogen free plastic parts product
- China Rohs Regulation
- X
- Carbon Footprint
- 89.77012579645955
- Circularity Profile
- ENVEOLI1704004EN
- Environmental Disclosure
- ENVPEP1704004EN
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1704004EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Take BackNo
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Operation-25-70 °C-25-70 °C
Climatic WithstandIACS E10
Eu Rohs DirectiveCompliant By Exemption
Ip Degree Of ProtectionIP40 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-19
Psr VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
