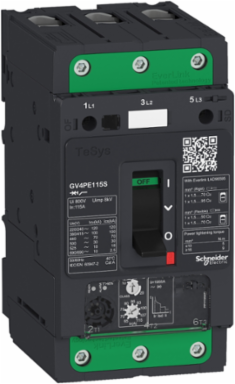

Schneider Electric GV4PE25N Motor circuit breaker, TeSys GV4, 3P, 25A, Icu 50kA, thermal magnetic, Everlink terminals
Schneider Electric GV4PE25N Motor circuit breaker, TeSys GV4, 3P, 25A, Icu 50kA, thermal magnetic, Everlink terminals
- MPN: GV4PE25N
- PPN: SCH-GV4PE25N
- UNSPSC: 39121601
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$977.12/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 25A/690V, for protection of 3-phase motors 5.5-11kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 50kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 10-25A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- New modern look & feel of all machines
- Wide range of GVs: Magnetic, thermal magnetic, different sizes (GV2,GV3,GV4)
- Easier to install and operate with multi-standard screws
- Sturdy and long-lasting power connection with EverLink terminals
- Digital customer experience for technical documents
- Maintenance guide via EcoStruxureTM Facility Expect
Specifications
Physical Attributes
- Color
- Gray RAL 7016)
Conformance Attributes
- Product Certifications
- IEC, UL, CSA, CCC, EAC, ATEX, EU-RO MR
StandardsCSA C22.2 No 60947-4-1, UL 60947-4-1, EN/IEC 60947-4-1, EN/IEC 60947-2
Complementary Attributes
- Line Rated Current
- 25 A
- Rated Duty
- continuous IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 5000 cycles AC-3 415 V opening, 5000 cycles AC-3 415 V closing
- Motor Power KW
- 7.5-7.5 kW 400...415 V AC 50/60 Hz, 9-9 kW 400...415 V AC 50/60 Hz, 11-11 kW 400...415 V AC 50/60 Hz, 9-9 kW 500 V AC 50/60 Hz, 11-11 kW 500 V AC 50/60 Hz, 15-15 kW 660...690 V AC 50/60 Hz, 7.5-7.5 kW 660...690 V AC 50/60 Hz, 5.5-5.5 kW 400...415 V AC 50/60 Hz, 7.5-7.5 kW 500 V AC 50/60 Hz, 9-9 kW 660...690 V AC 50/60 Hz, 11-11 kW 660...690 V AC 50/60 Hz, 15-15 kW 500 V AC 50/60 Hz, 18.5-18.5 kW 660...690 V AC 50/60 Hz
- Trip Unit Technology
- electronic, thermal-magnetic
- Carbon Footprint Of The Distribution Phase A4
- 0.4598123984982335, 0.5 kg CO2 eq.
- Carbon Footprint Of The Installation Phase A5
- 0.4 kg CO2 eq., 0.4097585395010464
- Carbon Footprint Of The Use Phase B2 B3 B4 B6
- 74 kg CO2 eq., 74.322
- Connections Terminals3
- EverLink BTR screw connectors (top): 1 cable(s) 1.5-70 mm² - solid, EverLink BTR screw connectors (top): 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-95 mm² - solid, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-70 mm² - flexible
- Local Publishable Date
- 2025-02-26
- Serviceability
- Yes
- Field Service Division
- PPIBS
- WEEE Applicability
- Finished product
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option
- Standard
- Device Application
- motor protection
- Energy Efficiency Optimized
- False
- Halogen Free Status
- Halogen free plastic parts product
- Mechanical Durability
- 40000 cycles
- Package Weight Lbs
- 1.67 kg
- Poles Description
- 3P
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Range
- TeSys Deca
- Returnability
- No
- Sustainable Packaging
- Yes
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Ue Rated Operational Voltage2
- 690 V AC 50/60 Hz IEC 60947-2
- Uimp Rated Impulse Withstand Voltage2
- 8 kV IEC 60947-2
- Stocking Flag
- Y
- Pep Code
- ENVPEP1704004EN
- Pep Verification Date
- 2023-08-19
- Psr Version
- PSR-0005-ed2-2016 03 29
- Data Source
- extrapolated product
- Functional Unit Unit
- unité (unit)
- Energy Model Installation A5 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Energy Model End Of Life C1 C4 2
- Electricity Mix; Production mix; Low voltage; UE-27
- Global Commercial Status
- Commercialised
- Ith Conventional Free Air Thermal Current5
- 115 A IEC 60947-4-1
- Ui Rated Insulation Voltage5
- 800 V AC 50/60 Hz IEC 60947-2
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, shocks 15 gn 11 ms IEC 60068-2-27
Tightening Torque9 N.m 16-95 mm², 5 N.m 1.5-10 mm²
Utilisation Categorycategory A IEC 60947-2, AC-3 IEC 60947-4-1
Carbon Footprint Of The End Of Life Phase C1 To C43.7052338781741825, 4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase A1 To A311 kg CO2 eq., 10.873320980286081
Connections TerminalsEverLink BTR screw connectors (top): 1 cable(s) 1.5-70 mm² - solid, EverLink BTR screw connectors (top): 1 cable(s) 1.5-50 mm² - flexible, EverLink BTR screw connectors (bottom): 1 cable(s) 2.5-95 mm² - solid
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1704004EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Control Typetoggle
Device Short NameGV4PE
Fire Resistance960 °C IEC 60695-2-11
Magnetic Tripping Current425-425 A
Operating Positionany position
Phase Failure Sensitivityyes IEC 60947-4-1
Power Dissipation Per Pole4.6 W
Product Or Component Typemotor circuit breaker
Range Of ProductTeSys GV4
Suitability For Isolationyes IEC 60947-1
Total Lifecycle Carbon Footprint90 kg CO2 eq.
Ith Conventional Free Air Thermal Current2115 A IEC 60947-4-1
Ui Rated Insulation Voltage2800 V AC 50/60 Hz IEC 60947-2
Medium DescMotor circuit breaker, TeSys GV4, 3P, 25A, Icu 50kA, thermal magnetic, Everlink terminals
Product Kit IdentifierN
Database Version2022-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit DescriptionProtect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
Energy Model Manufacturing A1 A3 2Electricity Mix; Production mix; Low voltage; CZ
Energy Model Use B6 2Electricity Mix; Production mix; Low voltage; UE-27
Direct Connectorwithout
Product NameTeSys GV4
Ue Rated Operational Voltage5690 V AC 50/60 Hz IEC 60947-2
Uimp Rated Impulse Withstand Voltage58 kV IEC 60947-2
Environment Attributes Main
- Take Back
- Nej, No
- EU ROHS Directive
- Compliant By Exemption , Compliant with Exemptions
- Halogene Performance
- Halogen free plastic parts product
- China ROHS Regulation
- X
- Carbon Footprint
- 89.77012579645955
- Circularity Profile
- ENVEOLI1704004EN
- Environmental Disclosure
- ENVPEP1704004EN
- IP Degree Of Protection
- IP40 IEC 60529
- Packaging Made With Recycled Cardboard
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-19
- Psr Version
- PSR-0005-ed2-2016 03 29
Ambient Air Temperature For Operation-25-70 °C, -25-70 °C
ROHS Exemption InformationYes
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Ambient Air Temperature For Storage-50-85 °C
Climatic WithstandIACS E10
Halogen Content PerformanceHalogen free plastic parts product
Operating Altitude5000 m
Packaging Without Single Use PlasticYes
Pep CodeENVPEP1704004EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
Specifications
- Country of Origin
- Poland
Depth116 mm
