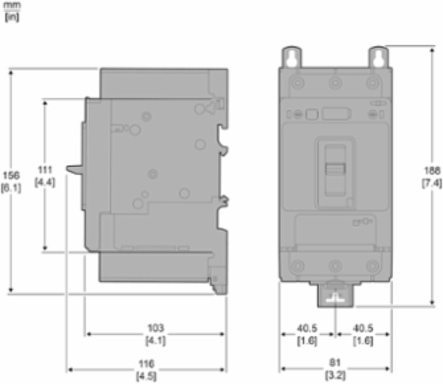

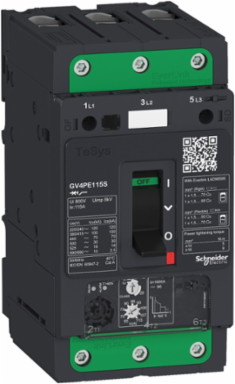

Schneider Electric GV4PE50B Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 25kA, thermal magnetic, Everlink terminals
Schneider Electric GV4PE50B Motor circuit breaker, TeSys GV4, 3P, 50A, Icu 25kA, thermal magnetic, Everlink terminals
- MPN: GV4PE50B
- PPN: SCH-GV4PE50B
- UNSPSC: 39121601
Spec sheet
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$829.08/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 50A/690V, for protection of 3-phase motors 11-22kW@400V. It provides thermal magnetic protection and additional motor protection functions, breaking capacity Icu 25kA@400V, start-stop control by toggle, connection by Everlink BTR screw terminals. Thermal protection adjustable by dials with a setting current Ir in range 20-50A and a selectable tripping class 10 or 20, magnetic protection at 17 In. Additional protections have fixed pick-up and include short time delay protection Isd at 13 Ir, phase unbalance and loss protection, ground fault protection. It makes internal locations available for additional auxiliary contact blocks (OF, SD), and voltage trip units (MN, MX). Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Specifications
Physical Attributes
- Color
- Gray RAL 7016)
Complementary Attributes
- Line Rated Current
- 50 A
- UE Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- UIMP Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
Rated Dutycontinuous IEC 60947-4-1
UI Rated Insulation Voltage800 V AC 50/60 Hz IEC 60947-2
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 20000 cycles AC-3 440 V In/2, 10000 cycles AC-3 440 V In
- Motor Power KW
- 11-11 kW 400...415 V AC 50/60 Hz, 15-15 kW 500 V AC 50/60 Hz, 18.5-18.5 kW 660...690 V AC 50/60 Hz, 15-15 kW 400...415 V AC 50/60 Hz, 18.5-18.5 kW 400...415 V AC 50/60 Hz, 22-22 kW 400...415 V AC 50/60 Hz, 18.5-18.5 kW 500 V AC 50/60 Hz, 22-22 kW 500 V AC 50/60 Hz, 30-30 kW 500 V AC 50/60 Hz, 22-22 kW 660...690 V AC 50/60 Hz, 30-30 kW 660...690 V AC 50/60 Hz, 37-37 kW 660...690 V AC 50/60 Hz, 45-45 kW 660...690 V AC 50/60 Hz
- Utilisation Category
- category A IEC 60947-2, AC-3 IEC 60947-4-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 3.17274517711921, 3 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 9 kg CO2 eq., 9.310688025035386
- Connections Terminals
- EverLink BTR screw connectors top) 1 1.5-70 mm² - solid, EverLink BTR screw connectors top) 1 1.5-50 mm² - flexible, EverLink BTR screw connectors bottom) 1 2.5-95 mm² - solid, EverLink BTR screw connectors bottom) 1 2.5-70 mm² - flexible
- Local Publishable Date
- 2025-02-26
- Serviceability
- Yes
- Field Service Division
- PPIBS
- WEEE Applicability
- Finished product
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant with Exemptions
- ROHS EUR Full Compliance Status Id
- COMPLIANT_WITH_EXEMPTIONS
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- Yes
- Return Indicator
- N
- Function Option Id
- STANDARD
- Device Short Name
- GV4PE
- Energy Efficiency Optimized
- False
- Halogen Free Status
- Halogen free plastic parts product
- Operating Position
- any position
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Or Component Type
- motor circuit breaker
- Range Of Product
- TeSys GV4
- Suitability For Isolation
- yes IEC 60947-1
- Total Lifecycle Carbon Footprint
- 88 kg CO2 eq.
- ITH Conventional Free Air Thermal Current
- 115 A IEC 60947-4-1
- Add Ons
- GV4AE11
- Pep Verification Date
- 2023-08-19
- PSR Version
- PSR-0005-ed2-2016 03 29
- Functional Unit Description
- Protect during 20 years the motor against overloads and short-circuits in circuit with assigned voltage up to 690VAC and 115A rated current. This protection is ensured in accordance with the following parameters:& 10- Number of poles: 3& 10- Rated service breaking capacity Ics at 440VAC = 50kA (according to IEC 60947-2) & 10- Tripping curve: long time, short time and instantanous protections, dual class (10 and 20)
- Product Kit Identifier
- N
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Mechanical Robustnessvibrations +/- 1 mm 2...13.2 Hz IEC 60068-2-6, vibrations 0.7 gn 13.2...100 Hz IEC 60068-2-6, shocks 15 gn 11 ms IEC 60068-2-27
Tightening Torque9 N.m 16-95 mm², 5 N.m 1.5-10 mm²
Carbon Footprint Of The Distribution Phase A40.3937315747619604, 0.4 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50.4 kg CO2 eq., 0.3508710847224529
Carbon Footprint Of The Use Phase B2 B3 B4 B674 kg CO2 eq., 74.322
Local Data StatusPublishable
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityYes
Average Life Duration15 year(s)
WEEE ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1704004EN
Reach Full Compliance Status IdCONTAINS_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant with Exemptions
China ROHS In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
WD Status1 - GSC certified
Function OptionStandard
Direct Connectorwithout
Fire Resistance960 °C IEC 60695-2-11
Magnetic Tripping Current850-850 A
Package Weight Lbs1.67 kg
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
RangeTeSys Deca
ReturnabilityNo
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Relationship TypeCompatible relationship
Pep CodeENVPEP1704004EN
PCR VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional Unit Unitunité (unit)
Product ManagerMANISH DEV PANWAR
Environment Attributes Main
- EU ROHS Directive
- Compliant By Exemption?, Compliant with Exemptions
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -25-70 °C
- Climatic Withstand
- IACS E10
- Halogen Content Performance
- Halogen free plastic parts product
- Operating Altitude
- 5000 m
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP1704004EN
- PCR Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
ROHS Exemption InformationYes
Halogene PerformanceHalogen free plastic parts product
China ROHS RegulationX
Carbon Footprint87.55003586163902
Circularity ProfileENVEOLI1704004EN
Environmental DisclosureENVPEP1704004EN
IP Degree Of ProtectionIP40 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-19
PSR VersionPSR-0005-ed2-2016 03 29
General Attributes
- Product Or Component Type
- motor circuit breaker
Range Of ProductTeSys GV4
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
