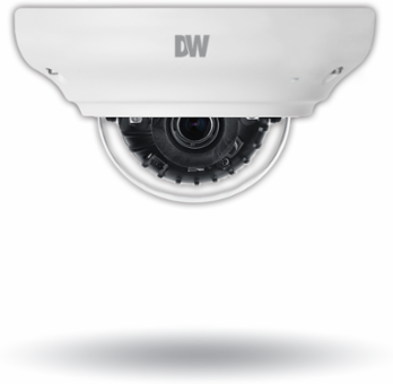

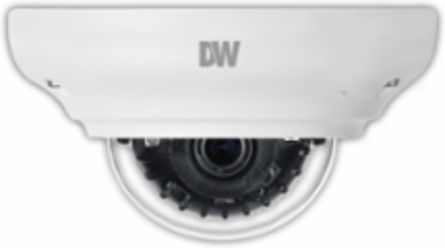

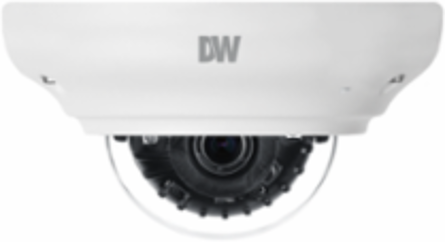

Digital Watchdog DWC-MV75Wi4TW MEGApix IVA™ 5MP Vandal Dome IP Camera, 2.8mm to 6.0mm Lenses, IP67, IK10
- MPN: DWC-MV75Wi4TW
- UPC: 812226032280
- PPN: DWD-DWC-MV75Wi4TW
CAD
$739.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Experience advanced surveillance capabilities with the MEGApix IVA™ 5MP ultra low-profile vandal dome IP camera from Digital Watchdog. Designed for both durability and high performance, this camera features a robust IK10-rated aluminum housing and is IP67-rated, ensuring it withstands harsh environments while delivering exceptional image quality. With its advanced 5MP Star-Light Plus CMOS sensor, this camera excels in low-light conditions, providing color images in near-total darkness and featuring an IR distance of up to 80 feet.
Equipped with multiple fixed lens options (2.8mm, 4.0mm, and 6.0mm), this camera offers flexibility in installation and field of view, catering to various surveillance needs. The integration of Intelligent Video Analytics (IVA) and true wide dynamic range (WDR) technology enhances its functionality, allowing for precise monitoring and motion detection. With seamless compatibility with DW Spectrum® IPVMS and support for multiple video compression formats, this camera is an ideal choice for comprehensive security solutions.
Features
- 5MP 1/2.8” image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MV75Wi28TW)
- 4.0mm fixed lens (DWC-MV75Wi4TW)
- 6.0mm fixed lens (DWC-MV75Wi6TW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80’ Smart IR™ with intelligent camera sync
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- PoE class 3 and DC12V
- UL listed
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact-resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
MECHANICAL
- Material
- Aluminum vandal housing, polycarbonate dome
- Warranty
- 5 year warranty
Weight0.79 lbs (0.36kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumptionDC12V - max 6W; PoE - max 7.2W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP, alarm output and SD card recording
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
Memory slotMicro SD / SDHC / SDXC (card not included)
LENS
- Focal length
- 2.8mm, F1.8 (DWC-MV75Wi28TW), 4.0; mm, F2.0 (DWC-MV75Wi4TW); 6.0mm, F2.0 (DWC-MV75Wi6TW);
- Field of view (FoV)
- 102.4° (DWC-MV75Wi28TW); 82.3° (DWC-MV75Wi4TW), 51.9; ° (DWC-MV75Wi6TW)
Lens typeFixed lens
IR distance80ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- H.265 - 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2592x1944, 2304x1296, 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 2.1MP/1080p, 720p, 800x600, VGA, 768x432, D1, CIF
- Video bitrate
- 100Kbps ~ 10Mbps, multi-rate for preview and recording
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux®, Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®, NOTE - Chrome browser is recommended for IVA configuration.
Video compression typeH.265, H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 5MP 1/2.8” Star-Light Plus CMOS
- Test Monitor Video Output
- Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio
Total pixels2592 (H) × 1944 (V)
