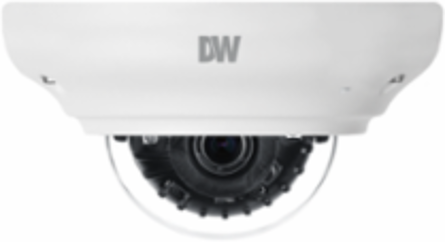

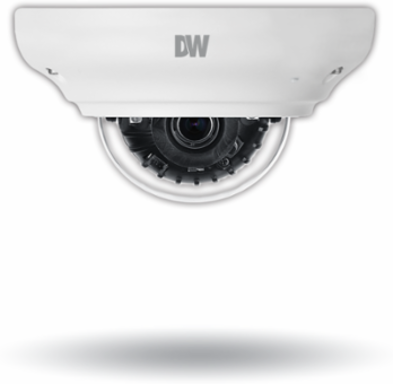

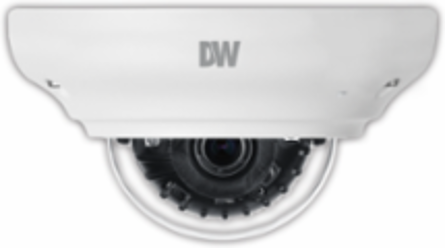

Digital Watchdog DWC-MV72Wi28ATW MEGApix IVATM 2.1MP Vandal Dome IP Camera with 2.8mm/4.0mm Lenses, IP67
- MPN: DWC-MV72Wi28ATW
- UPC: 812226032181
- PPN: DWD-DWC-MV72Wi28ATW
CAD
$654.92
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Experience unparalleled surveillance capabilities with the MEGApix IVATM ultra low-profile vandal dome IP camera from Digital Watchdog. Designed for durability and versatility, this camera features a robust IK10-rated housing, ensuring resilience against impacts, while its IP67 rating guarantees protection against dust and water. Equipped with advanced technologies such as Star-Light PlusTM for color imaging in near-total darkness and Smart DNRTM for superior noise reduction, it delivers exceptional video quality at 2.1MP/1080p resolution with a frame rate of up to 30fps.
The camera's dual-lens options (2.8mm and 4.0mm) provide flexibility in field of view, making it suitable for various installation environments. With built-in two-way audio, intelligent video analytics, and the ability to integrate seamlessly with DW Spectrum IPVMS, this camera is a perfect solution for comprehensive security monitoring. Additionally, the inclusion of features like programmable privacy zones and motion detection enhances its functionality, ensuring that you have complete control over your surveillance needs.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- 2.8mm fixed lens (DWC-MV72Wi28ATW)
- 4.0mm fixed lens (DWC-MV72Wi4ATW)
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 80' Smart IR™ with intelligent camera sync
- Audio input through built-in microphone
- Ultra low-profile vandal dome camera
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Two-way audio with built-in microphone
- Micro SD/SDHC/SDXC class 10 card slot (card not included)
- Web server built-in
- PoE class 2 and DC12V
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Documentation & Downloads
Specifications
ENVIRONMENTAL
| Operating temperature | -4°F ~ 122°F (-20°C ~ 50°C) |
|---|---|
| IK rating | IK10 impact-resistant |
| Other certifications | CE, FCC, RoHS |
| Operating humidity | 10–90% RH (non–condensing) |
|---|---|
| IP rating | IP67-rated |
MECHANICAL
| Material | Aluminum vandal housing, polycarbonate dome |
|---|---|
| Warranty | 5 year warranty |
| Weight | 0.79 lbs (0.36kg) |
|---|
ELECTRICAL
| Power requirement | DC12V, POE IEEE 802.3af class 2 (adaptor not Included) |
|---|
| Power consumption | DC12V - max 3.7W; PoE - max 5.5W |
|---|
OPERATIONAL
| Shutter mode | Auto, manual, anti-flicker, slow shutter |
|---|---|
| Slow shutter | 1/2,1/3,1/5,1/6,1/7.5, 1/10 |
| Day / night | Auto, day (color), night (B/W) |
| Wide dynamic range (WDR) | True WDR (D-WDR) On, Off |
| Privacy zones | 16 programmable privacy masks |
| Alarm notifications | Notifications via e-mail, FTP, alarm output and SD card recording |
| Shutter speed | 1/15 ~ 1/32,000 |
|---|---|
| Auto gain control | Auto |
| Smart DNR™ 3D digital noise reduction | 3D DNR |
| Wide dynamic range (WDR) dB | 120dB |
| Mirror and flip | Yes |
| Memory slot | Micro SD / SDHC / SDXC (card not included) |
I/O
| Audio compression | G.711 |
|---|
LENS
| Focal length | 2.8mm, F2.0 (DWC-MV72Wi28ATW), 4.0; mm, F2.6 (DWC-MV72Wi4ATW); |
|---|---|
| Field of view (FoV) | 111° (DWC-MV72Wi28ATW); 86° (DWC-MV72Wi4ATW) |
| Lens type | Fixed lens |
|---|---|
| IR distance | 80ft range |
NETWORK
| LAN | RJ45 (10/100Base-T) |
|---|---|
| Resolution | H.265 - 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 1280x720, 800x600, VGA, 768x432, D1, CIF |
| Video bitrate | 100Kbps ~ 10Mbps, multi-rate for preview and recording |
| Streaming capability | Dual-stream at different rates and resolutions |
| Protocol | TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF |
| Web viewer | OS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari® |
| Video compression type | H.265, H.264, MJPEG |
|---|---|
| Frame rate | Up to 30fps at all resolutions |
| Bitrate control | Multistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth) |
| IP | IPv4, IPv6 |
| ONVIF conformance | Yes |
| Video management software | DW Spectrum® IPVMS |
| Image sensor | 2.1MP/1080p 1/2.8” Star-Light Plus CMOS |
|---|---|
| Test Monitor Video Output | Local video output CVBS 1.0V p-p (75Ω), 4:3 aspect ratio |
| Total pixels | 1945 (H) × 1109 (V) |
|---|
