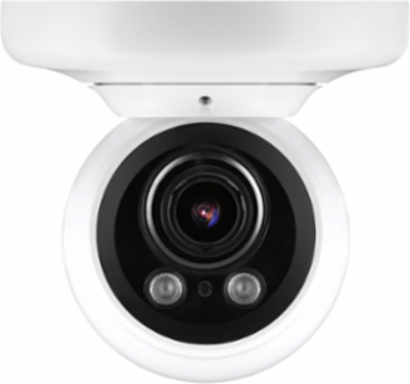

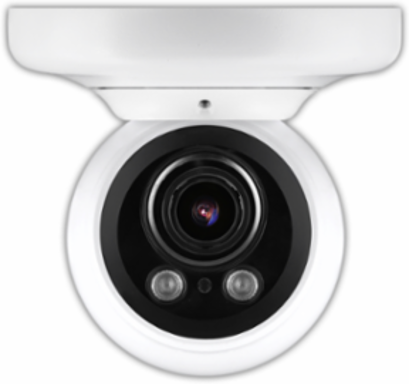

Digital Watchdog DWC-MVA2Wi28T MEGApix® IVA™ vandal ball IP camera with 2.8mm fixed lens and color in near-total darkness and IR




Digital Watchdog DWC-MVA2Wi28T MEGApix® IVA™ vandal ball IP camera with 2.8mm fixed lens and color in near-total darkness and IR
- MPN: DWC-MVA2Wi28T
- UPC: 812226031887
- PPN: DWD-DWC-MVA2Wi28T
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$683.61/ EA
Description
This MEGApix® IVA™ IP camera is your gateway to powerful video analytics features. It is NDAA compliant and provides 2.1MP/1080p resolution at real-time 30fps. The MEGApix IVA cameras have a powerful engine to detect and classify people and vehicles in real-time. IVA+ license upgrade offers advanced Video Content Analysis detection capabilities. This camera includes a 2.8mm fixed lens, simultaneous H.265/H.264/MJPEG codec support and Star-Light Plus™ color in near-total darkness technology for quality video in any lighting condition. The weather-resistant vandal ball cameras are IP67 rated, eliminate IR reflections and offer easy angle adjustment for optimal image quality. All MEGApix cameras are ONVIF conformant, assuring their successful integration with any open platform solution on the market.
Features
- 2.1MP/1080p 1/2.8" image sensor at real-time 30fps
- Star-Light Plus™ color in near-total darkness technology
- Intelligent Video Analytics (IVA)
- Extended Intelligent Video Analytics (IVA+ license required)
- Seamless integration and control of IVA rules with DW Spectrum® IPVMS
- Reduce false alarms
- Increase your recording storage with logic rules and smart recording
- 2.8mm fixed lens
- True Wide Dynamic Range (WDR)
- Triple codecs (H.265, H.264, MJPEG) with simultaneous streaming
- 100' Smart IR™ with intelligent camera sync

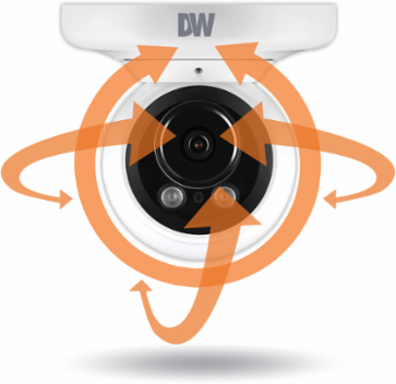

- Vandal ball housing reduces IR reflection
- Smart DNR™ 3D digital noise reduction
- True day/night mechanical IR cut filter
- Programmable privacy zones
- Auto gain control (AGC)
- Auto white balance (AWB)
- Motion detection
- Web server built-in
- PoE class 3 and DC12V
- Waterproof cabling
- UL listed
- ONVIF conformant, profile S
- NDAA compliant
- IP67 dust-tight and waterproof to 3 feet
- IK 10-rated impact-resistant
- 5 year warranty
Specifications
ENVIRONMENTAL
- Operating temperature
- -4°F ~ 122°F (-20°C ~ 50°C)
- IK rating
- IK10 impact resistant
- Other certifications
- CE, FCC, RoHS
Operating humidity10–90% RH (non–condensing)
IP ratingIP67-rated
MECHANICAL
- Material
- Aluminum vandal ball housing
- Warranty
- 5 year warranty
Weight1.87 lbs (0.85kg)
ELECTRICAL
- Power requirement
- DC12V, POE IEEE 802.3af class 3 (adaptor not Included)
Power consumptionDC12V - max 5.7W; PoE - max 7.2W
OPERATIONAL
- Shutter mode
- Auto, manual, anti-flicker, slow shutter
- Slow shutter
- 1/2,1/3,1/5,1/6,1/7.5, 1/10
- Day / night
- Auto, day (color), night (B/W)
- Wide dynamic range (WDR)
- True WDR (D-WDR) On, Off
- Privacy zones
- 16 programmable privacy masks
- Alarm notifications
- Notifications via e-mail, FTP and alarm output
Shutter speed1/30 ~ 1/32,000
Auto gain controlAuto
Smart DNR™ 3D digital noise reduction3D DNR
Wide dynamic range (WDR) dB120dB
Mirror and flipYes
LENS
- Focal length
- 2.8mm, F2.0
- Field of view (FoV)
- 110°
Lens typeFixed lens
IR distance100ft range
NETWORK
- LAN
- RJ45 (10/100Base-T)
- Resolution
- H.265 - 2.1MP/1080p, 720p, VGA, D1, CIF; H.264 - 2.1MP/1080p, 720p, VGA, D1, CIF; MJPEG - 1280x720, 800x600, VGA, 768x432, D1, CIF
- Video bitrate
- 100Kbps ~ 10Mbps, multi-rate for preview and recording
- Streaming capability
- Dual-stream at different rates and resolutions
- Protocol
- TCP/IP, UDP, AutoIP, RTP(UDP/TCP), RTSP, NTP, HTTP, HTTPS, SSL, DNS, DDNS, DHCP, FTP, SMTP, ICMP, SNMPv1/v2/v3(MIB-2), ONVIF
- Web viewer
- OS - Windows®, Mac® OS, Linux® Browser - Internet Explorer®, Google Chrome®, Mozilla Firefox®, Safari®
Video compression typeH.265, H.264, MJPEG
Frame rateUp to 30fps at all resolutions
Bitrate controlMultistreaming CBR/VBR at H.264, H.265 (controllable frame rate and bandwidth)
IPIPv4, IPv6
ONVIF conformanceYes
Video management softwareDW Spectrum® IPVMS
- Image sensor
- 2.1MP/1080p 1/2.8” CMOS
Total pixels1945 (H) × 1109 (V)
