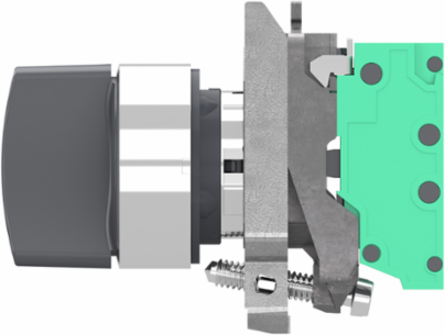

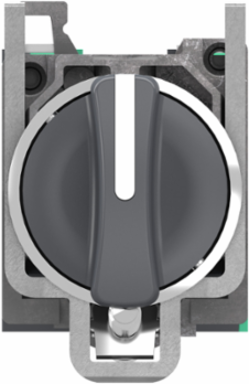

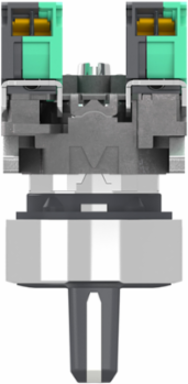

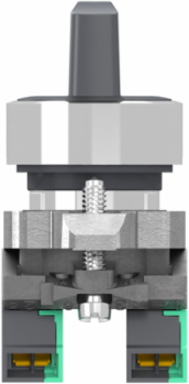

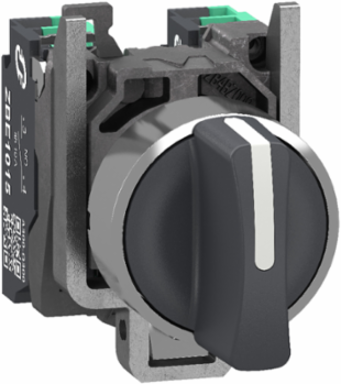

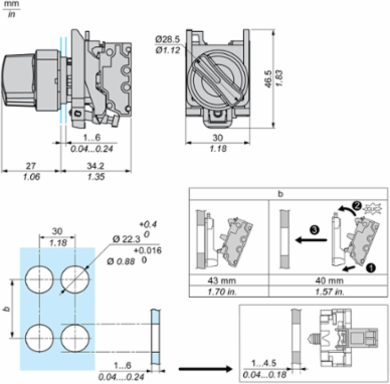

Schneider Electric XB4BD535 Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, spring return to center, 2 NO, compact push in terminals
Schneider Electric XB4BD535 Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, spring return to center, 2 NO, compact push in terminals
- MPN: XB4BD535
- PPN: SCH-XB4BD535
- UNSPSC: 39122217
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$95.68/ EA
Description
This Harmony XB4 modular black selector switch has 3 positions and operates with a spring-return-to-center mechanism. This metal selector switch provides an ergonomic interface for controlling your machines. It is supplied with a standard handle. It provides a clear help in setting your machines in various operating modes, even in darker control rooms, and with a clear visual feedback. It is impact-resistant, dust-resistant, water-resistant, and vibration-resistant thanks to its IP66, IP67, IP69, and IP69K ratings, making it ideal for operation in harsh environments. This selector switch is equipped with 2 normally open (NO) contacts, featuring a slow break operation. It is easily installed into a standard 22mm diameter panel cut-outs and connected to control circuits with push-in terminal connections. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. Harmony delivers an innovative and ergonomic design that improves the reliability of panels, machines, and processes.
Features
- Quick and easy assembly and disassembly
- Robustness to withstand harsh environments
- A wide choice of contact blocks for general purposes or specific applications
- Excellent mechanical connection with operator head
- A large set of accessories to customize your panels
- Tool-free installation enabled by push-in connections, ensuring effortless setup
Specifications
Physical Attributes
- Cap Operator Or Lens Color
- black
Conformance Attributes
- Product Certifications
- EAC, IECEE CB Scheme, CCC, UL, CSA
StandardsIEC 60947-1, IEC 60947-5-1, IEC 60947-5-4, IEC 60947-5-5, UL 60947-1, UL 60947-5-1, UL 60947-5-5, UL 1059, UL 486E, CSA C22.2 No 60947-1, CSA C22.2 No 60947-5-1, CSA C22.2 No 158, CSA C22.2 No 65, IACS E10
Important Information Attributes
- Persona Type Ids
- BM9, EU, LC, OM, OM8, PB, SC, SI, VR
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Customizable
- no, 0

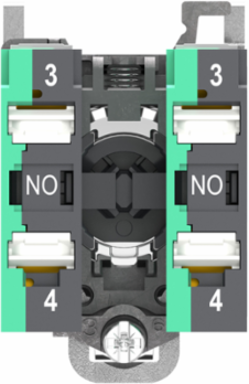

- Terminals Description ISO N 1
- (23-24)NO, (23-24)NO
- Ie Rated Operational Current2
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Carbon Footprint Of The End Of Life Phase C1 To C4
- 0.1424134987, 0.1 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase A1 To A3
- 0.8 kg CO2 eq., 0.8254004921
- Connections Terminals
- push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
- Ie Rated Operational Current5
- 6 A 120 V, AC-15, A300 IEC 60947-5-1, 3 A 240 V, AC-15, A300 IEC 60947-5-1, 0.55 A 125 V, DC-13, Q300 IEC 60947-5-1, 0.27 A 250 V, DC-13, Q300 IEC 60947-5-1
- Local Publishable Date
- 2026-01-12
- Legacy WEEE Scope
- In
- EOLI Availability Display
- Yes
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- ROHS EUR Status
- Compliant
- ROHS EUR Full Compliance Status Id
- COMPLIANT
- Green Premium Status For Reporting
- Green Premium product
- Without Single Use Plastic
- No
- Return Indicator
- Y
- Function Option
- Standard
- Cap Operator Or Lens Color
- black
- Contact Operation
- slow-break
- Contacts Type And Composition
- 2 NO
- Device Short Name
- XB4
- Head Type
- standard
- Mounting Diameter
- 22.5 mm
- Operator Profile
- black standard handle
- Package Weight Lbs
- 96.000 g
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Protective Treatment
- TH
- Resistance To High Pressure Washer
- 7000000 Pa 55 °C 0.1 m
- Shape Of Signaling Unit Head
- round
- Sustainable Packaging
- No
- Type Of Operator
- to centre spring return
- Ith Conventional Free Air Thermal Current2
- 10 A IEC 60947-5-1
- Uimp Rated Impulse Withstand Voltage2
- 4 kV IEC 60947-1
- Medium Desc
- Selector switch, Harmony XB4, metal, black, 22mm, 3 positions, spring return to center, 2 NO, compact push in terminals
- Product Kit Identifier
- N
- Database Version
- 2022-01
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional Unit Description
- This Harmony XB4 modular black selector switch has 2 positions, operates with a stay-put mechanism. It has a metal bezel. This selector switch provides a versatile interface for controlling your machines.This switch s primary function is to control devices as well as switch between a minimum of two electrical circuits with a power consumption of 0.002 W with use rate of 72% for a period of 10 years and product is adhering to standards EN/IEC 60947-5-1
- Energy Model Manufacturing A1 A3 2
- Energy model used: Electricity Mix; Production mix; Low voltage; UE-27
- Global Commercial Status
- Commercialised
- Ui Rated Insulation Voltage5
- 300 V 3)IEC 60947-1
Persona Type NamesCharge Point Operator, End User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician, System Integrator, IT Channel Partner
Market SegmentationCommercial, Industrial
Shock Resistance25 gn 6 ms) 1000 shocks on each axis IEC 60068-2-27, 30 gn 18 ms) half sine wave acceleration IEC 60068-2-27, 50 gn 11 ms) half sine wave acceleration IEC 60068-2-27
Vibration Resistance5 gn (f= 10-500 Hz) conforming to IEC 60068-2-6, 25 mm peak to peak (f= 2-10 Hz) conforming to IEC 60068-2-6
Carbon Footprint Of The Distribution Phase A40.0162153367, 0 kg CO2 eq.
Carbon Footprint Of The Installation Phase A50 kg CO2 eq., 0.0200524682
Carbon Footprint Of The Use Phase B2 B3 B4 B60.1 kg CO2 eq., 0.061943
Connections Terminals3push-in, <= 2 x 1.5 mm² with wire end ferrule IEC 60947-1, push-in, >= 1 x 0.34 mm² without wire end ferrule IEC 60947-1
Local Data StatusPublishable
Pre Comm Date2024-05-23
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2308005EN
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
ROHS EUR In ScopeYes
ROHS EUR Full Compliance StatusCompliant
China ROHS In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Function Option IdSTANDARD
Bezel Materialchromium plated metal
Compatibility CodeXB4
Contacts Materialsilver alloy (Ag/Ni)
Contacts Usagestandard contacts
Fixing Collar Materialzamak
Mechanical Durability1000000 cycles
Operator Position Information3 positions +/- 45°
Overvoltage Categoryclass I conforming to IEC 60536
Positive Openingwithout
Product Or Component Typeselector switch
Range Of ProductHarmony XB4
ReturnabilityYes
Short Circuit Protection10 A cartridge fuse gG IEC 60947-5-1
Total Lifecycle Carbon Footprint1 kg CO2 eq.
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Ui Rated Insulation Voltage2300 V 3)IEC 60947-1
Us Rated Supply Voltage2600 V
Stocking FlagY
Pep CodeENVPEP2308005EN
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-2016 03 29
Data Sourceextrapolated product
Functional Unit UnitUnit
Torque Value0.14 N.m NO changing electrical state
Ith Conventional Free Air Thermal Current510 A IEC 60947-5-1
Uimp Rated Impulse Withstand Voltage54 kV IEC 60947-1
Environment Attributes Main
- Take Back
- Nej, No
- IP Degree Of Protection
- IP66 IEC 60529, IP69, IP69K, IP67
- ROHS Exemption Information
- Yes
- Recycled Metal Content At Cr Level
- 0 %
- Toxic Heavy Metal Free
- Yes
- Carbon Footprint
- 1.0660247958
- Ambient Air Temperature For Storage
- -40-70 °C
- Environmental Disclosure
- ENVPEP2308005EN
- Packaging Without Single Use Plastic
- No
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Verification Date
- 2023-08-01
- Psr Version
- PSR-0005-ed2-2016 03 29
EU ROHS DirectiveCompliant , Compliant
Nema Degree Of ProtectionNEMA 13, NEMA 4X
Reach Free SHVCYes
China ROHS RegulationX
Mercury FreeYes
Ambient Air Temperature For Operation-40-70 °C
Circularity ProfileENVEOLI2308005EN
Packaging Made With Recycled CardboardNo
Reach Free Of SVHCYes
Pep CodeENVPEP2308005EN
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- selector switch
Range Of ProductHarmony XB4
Specifications
- Depth
- 59.2 mm
Overview Attributes
- Device Presentation
- complete product
