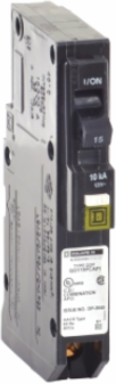

Square D QO115PCAFI eaker, QO, 15 A, 1 Pole, 120 V, 10 kA, Combo Arc Fault, Plug-in Mount
- MPN: QO115PCAFI
- UPC: 785901062615
- PPN: SCH-QO115PCAFI
CAD
$139.17
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
eaker, QO, 15 A, 1 Pole, 120 V, 10 kA, Combo Arc Fault, Plug-in Mount
Features
- 15 Amp, 1-Pole circuit breaker rated for 120V AC circuits
- Plug-On Neutral design connects directly to the neutral bar, no pigtail required
- Combination Arc-Fault protection (CAFI) guards against both parallel and series arcing faults
- Qwik-Open (QO) technology provides fast, reliable trip response
- Visual trip indicator allows for quick fault identification
- Compatible only with QO Plug-On Neutral load centers
- Thermal-magnetic trip unit ensures precise overload and short-circuit protection
- The Schneider Square D QO115PCAFI is a 15-Amp, single-pole Plug-On Neutral (PoN) Combination Arc Fault Circuit Interrupter. This "smart" breaker is designed to detect both series and parallel arcs dangerous electrical discharges that can occur from frayed wires or loose connections tripping the circuit before a fire can start.
- The "P" in the part number stands for Plug-On Neutral. Instead of a white "pigtail" wire that you have to manually land on the neutral bar, this breaker has a neutral clip built into the back. It snaps directly onto the neutral bar of a compatible QO Plug-On Neutral load center, creating a cleaner, faster, and more professional-looking panel.
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Mexico |
|---|---|
| Depth | 74 mm |
| Compliance | TAA Compliant |
|---|
Complementary Attributes
| Line Rated Current | 15 A |
|---|
Important Information Attributes
| Persona Type Ids | EUA, LC, OM, SC |
|---|---|
| Certificate Agency | UL Listed, CSA |
| Carbon Footprint Of The End-of-life Phase [C1 To C4] | 0 kg CO2 eq., 0.048167 |
| Carbon Footprint Of The Manufacturing Phase [A1 To A3] | 2 kg CO2 eq., 1.8041 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Stock Policy | 2 |
| Serviceability | No |
| Field Service Division | PPIBS |
| Manufacturing Carbon Footprint | 1.8041 |
| Weee Scope | In |
| Scope Perimeter | Outside of Europe |
| End Of Life Doc Ref | ENVEOLI2212005 |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 2532 |
| China Rohs In Scope | No |
| Without Single Use Plastic | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | RESIDENTIAL |
| Product Kit Identifier | N |
| Circuit Breaker Application | HACR rated |
| Electrical Connection | pressure plate |
| Mounting Mode | plug-in |
| Number Of Spaces Required | 1 |
| Product Or Component Type | miniature circuit-breaker |
| Returnability | Yes |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 39 kg CO2 eq. |
| Database Version | 2022-01 |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Functional-unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA; |
| Functional-unit Unit | unit |
| Energy Model - Manufacturing [A1-a3] | Energy model used: Mexico |
| Energy Model - Use [B6] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Recyclability Potential In % | 31 |
| Width Nominal | 19 mm |
| Connections - Terminals | plug-on neutral |
| Nbr. Of Units In Pkg. | 1 |
| Take-back | No |
| Air Pollution (M3) Total Life Cycle | 3534.8 |
| Air Pollution (M3) Distribution [A4] | 2.4594 |
| Air Pollution (M3) End Of Life [C1-c4] | 2.3404 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3] | 18.795 |
| Global Warming (Kg.Equivalent.Co2) Total Life Cycle | 39.288 |
| Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6] | 37.375 |
| Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 6.1949 |
| Non-hazardous Waste Disposed Of (Kg) Total Life Cycle | 7.1734 |
| Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6] | 5.7146 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 27.043 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle | 533.33 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4] | 0.8419 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 32.172 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 30.218 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 3.5545 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 23.489 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 0.5245 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 31.647 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 30.218 |
| Water Pollution (M3) Manufacturing [A1-a3] | 152.54 |
| Water Pollution (M3) Operational Energy Use [B6] | 1842.6 |
| Customs Code | 8536200040 |
| Persona Type Names | Consumer, Contractor, Original Equipment Manufacturer, Electrician |
|---|---|
| Carbon Footprint Of The Distribution Phase [A4] | 0.059533, 0.1 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase [A5] | 0.0016245, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase [B2 B3 B4 B6] | 37 kg CO2 eq., 37.375 |
| Local Publishable Date | 2026-04-14 |
| Stocking Flag | N |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Use Carbon Footprint | 37.375 |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Residential |
| Awg Gauge | 14 AWG...8 AWG copper12 AWG...8 AWG aluminium |
| Circuit Breaker Type | combination ARC-fault |
| Energy Efficiency Optimized | False |
| Number Of Poles | 1P |
| Product Availability | Stock - Normally stocked in distribution facility |
| Range Of Product | QO |
| Software Version | EIME v5.9.4 |
| Tightening Torque | 4-4 N.m |
| Pep Code | ENVPEP2212005EN |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Data Source | referent product |
| Functional-unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Energy Model - Installation [A5] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Energy Model - End Of Life [C1-c4] | Electricity mix; AC; consumption mix, at consumer; 120V; US |
| Height Nominal | 121 mm |
| [Ue] Rated Operational Voltage | 120 V AC |
| Carbon Footprint (Kg Co2 Eq Total Life Cycle) | 39.288 |
| Package Weight(Lbs) | 231.332 g |
| Warranty (In Months) | 18 |
| Air Pollution (M3) Manufacturing [A1-a3] | 356.03 |
| Air Pollution (M3) Operational Energy Use [B6] | 3173.9 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle | 474.96 |
| Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6] | 455.05 |
| Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3] | 1.8041 |
| Hazardous Waste Disposed Of (Kg) Total Life Cycle | 7.5576 |
| Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4] | 0.3634 |
| Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3] | 1.4546 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle | 501.16 |
| Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6] | 472.94 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3] | 28.995 |
| Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6] | 503.15 |
| Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3] | 1.9521 |
| Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 3.5545 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle | 497.61 |
| Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6] | 472.94 |
| Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 0.5245 |
| Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3] | 1.4276 |
| Water Pollution (M3) Total Life Cycle | 2008.3 |
| Water Pollution (M3) Distribution [A4] | 9.7918 |
| Water Pollution (M3) End Of Life [C1-c4] | 3.1413 |
Environment Attributes Main
| China Rohs Regulation | Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information. |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Carbon Footprint | 39.288 |
| Circularity Profile | ENVEOLI2212005 |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Without Single Use Plastic | Yes |
| Pep Code | ENVPEP2212005EN |
| Pcr Version | PCR-ed3-EN-2015 04 02 |
| Type Of Verification For The Pep | Independent external review |
| Take Back | No |
|---|---|
| Mercury Free | Yes |
| Ambient Air Temperature For Operation | 40 °C |
| Environmental Disclosure | ENVPEP2212005EN |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Verification Date | 2023-08-01 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | QO |
|---|
Contractual Warranty Attributes
| Warranty Period | 18 months |
|---|
| Warranty | 18 months |
|---|
