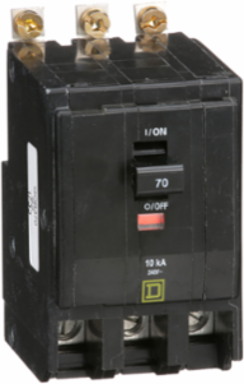

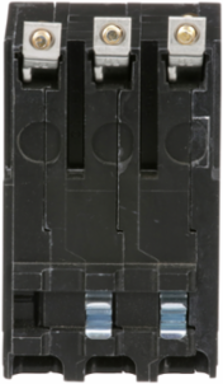

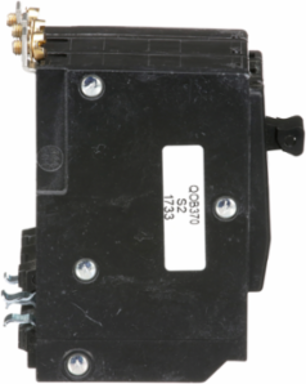

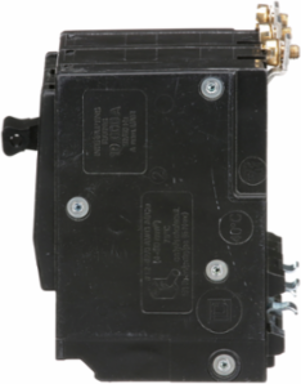

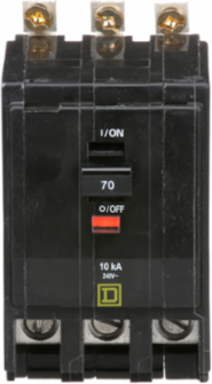

Square D QOB370 Mini Circuit Breaker 70A 3 Pole 120/240VAC 10kA Bolt-On Mount
Square D QOB370 Mini Circuit Breaker 70A 3 Pole 120/240VAC 10kA Bolt-On Mount
- MPN: QOB370
- UPC: 785901019749
- PPN: SCH-QOB370
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$504.38/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB370, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. UL listed CSA certified They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 70A at 120/240VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
Specifications
- Current Rating
- 70 A
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Bolt-on
- Electrical Connection
- Box lugs
- Tightening Torque
- 5.6 N.m
- Width
- 57 mm
- Net Weight
- 0.435 kg
- Ambient Air Temperature for Operation
- 40 0C
- Halogen Content Performance
- Halogen free product
Voltage120/240 V AC
Number of Poles3
Circuit Breaker TypeStandard
Wire SizeAWG 8 to AWG 2 copper or aluminum
Height79 mm
Depth74 mm
Product CertificationsUL Listed, CSA Certified
Mercury FreeYes
RoHS Exemption InformationYes
