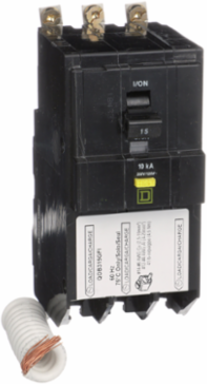

Square D QOB315GFI Mini circuit breaker, QO, 15A, 3 pole, 208Y/120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount
Square D QOB315GFI Mini circuit breaker, QO, 15A, 3 pole, 208Y/120VAC, 10kA, 6mA grd fault A, pigtail, bolt on mount
- MPN: QOB315GFI
- UPC: 785901811183
- PPN: SCH-QOB315GFI
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$1344.97/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 3 pole QO circuit breaker is rated at 15A at 208Y/120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Mercury Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Rohs Exemption InformationYes
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Height
- 105 mm
- Tightening Torque
- 4-4 N.m || 4.6-4.6 N.m 4-20 mm² AWG 12...AWG 4)
- Awg Gauge
- AWG 14...AWG 8 copper or aluminum
- Depth
- 74 mm
Breaking Capacity10 kA 208Y/120 V AC 50/60 Hz
Number Of Spaces Required3
Width57 mm
Net Weight0.640 kg
Specifications
- Circuit Breaker Application
- not rated
- Circuit Breaker Type
- ground fault protecting class A 6 mA
- Poles Description
- 3P
- [In] Rated Current
- 15 A
- [Ue] Rated Operational Voltage
- 208Y/120 V AC
Mounting Modebolt-on
Range Of ProductQO
Electrical Connectionpressure plate
Product Or Component Typeminiature circuit-breaker
