Square D QHB125 Mini Circuit Breaker QO 25A 1 Pole 120/240VAC 65kA Bolt-On Mount
Square D QHB125 Mini Circuit Breaker QO 25A 1 Pole 120/240VAC 65kA Bolt-On Mount
- MPN: QHB125
- UPC: 785901362319
- PPN: SCH-QHB125
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$523.17/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 65kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 25 A
- Breaking Capacity
- 65 kA 120/240 V AC 50/60 Hz
- Mounting Type
- bolt-on
- Electrical Connection
- pressure plate
- Tightening Torque
- 4.6 N.m

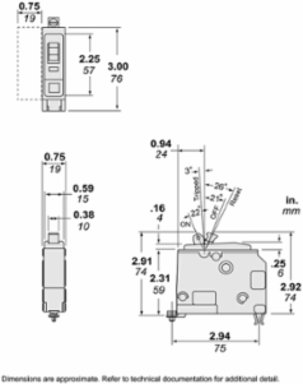

- Width
- 19 mm
- Net Weight
- 0.136 kg
- Product Certifications
- UL listed, CSA certified
- Mercury Free
- Yes
Voltage120/240 V AC
Poles1P
Circuit Breaker Typestandard
Wire SizeAWG 14 to AWG 8 copper or aluminum
Height76 mm
Depth74 mm
Ambient Temperature Rating40 6C
Toxic Heavy Metal FreeYes
RoHS ComplianceCompliant with Exemptions
