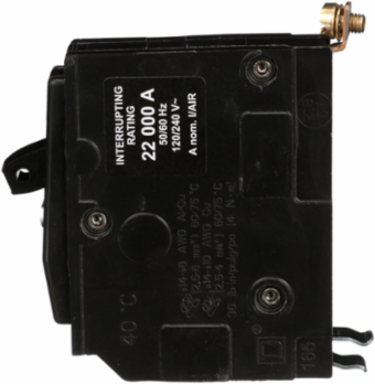

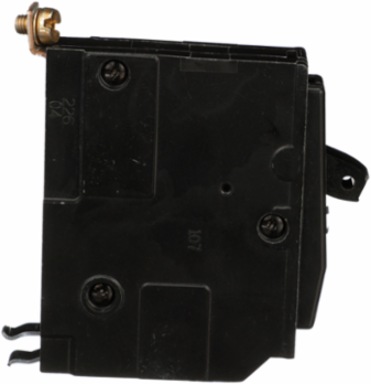

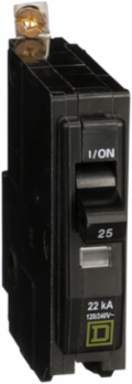

Square D QOB125VH Mini Circuit Breaker 25A 1 Pole 120/240V AC 22kA Bolt-On Mount
Square D QOB125VH Mini Circuit Breaker 25A 1 Pole 120/240V AC 22kA Bolt-On Mount
- MPN: QOB125VH
- UPC: 785901371892
- PPN: SCH-QOB125VH
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$94.66/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 1 pole QO circuit breaker is rated at 25A at 120/240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Voltage
- 120/240 V AC
- Interrupt Rating
- 22 kA 120/240 V AC 50/60 Hz
- Mounting Type
- Bolt-on
- Electrical Connection
- Pressure plate
- Tightening Torque
- 4.6 N.m
- Width
- 19 mm
- Net Weight
- 0.132 kg
- Certifications
- UL listed, CSA Certified
- Toxic Heavy Metal Free
- Yes
Current Rating25 A
Poles1P
Circuit Breaker TypeStandard
Wire SizeAWG 14...AWG 8 copper or aluminum
Height76 mm
Depth74 mm
Ambient Rating40 °C
Halogen ContentHalogen free product
Mercury FreeYes
