Miniature Circuit Breaker 30A 3 Pole 10kA Ground Fault Protection
Miniature Circuit Breaker 30A 3 Pole 10kA Ground Fault Protection
Square D

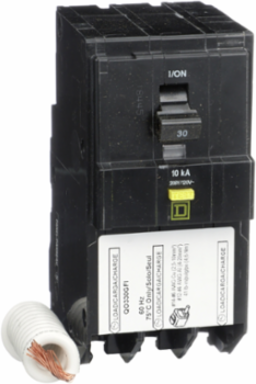

Square D QO330GFI Miniature Circuit Breaker 30A 3 Pole 10kA Ground Fault Protection

  • MPN: QO330GFI
  • UPC: 785901218975
  • PPN: SCH-QO330GFI

CAD

$925.32

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

Miniature Circuit Breaker 30A 3 Pole 10kA Ground Fault Protection

Documentation & Downloads

Specifications

Key Specifications

Country of Origin
Mexico

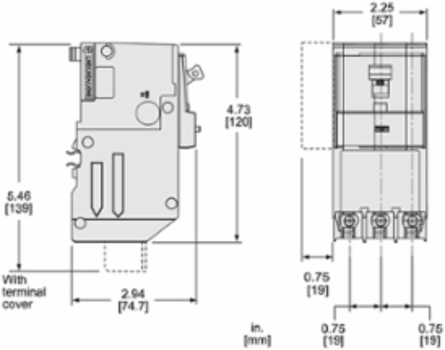

Depth
74 mm
ComplianceTAA Compliant

Complementary Attributes

Line Rated Current
30 A

Important Information Attributes

Persona Type Ids
EU, LC, OM
Tightening Torque
4-4 N.m, 4.6-4.6 N.m 4-20 mm² (12 AWG...4 AWG)
Carbon Footprint Of The Distribution Phase [A4]
0.1594026761, 0.2 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]
0.0043496825, 0 kg CO2 eq.
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
37 kg CO2 eq., 37.375
Local Publishable Date
2026-04-14
Stocking Flag
Y
Device Type
LV equipment - Low voltage circuit breaker
Traceability
No
Average Life Duration
15 year(s)
Weee Scope
In
Scope Perimeter
Outside of Europe
End Of Life Doc Ref
ENVEOLI2212005
Reach Full Compliance Status Id
CONTAINS_SVHC
Rohs Eur In Scope
Yes
Rohs Eur Conformity Date
2532
China Rohs In Scope
No
Without Single Use Plastic
Yes
Tier Id
1
Function Option Id
STANDARD
Market Segmentation Id
RESIDENTIAL
Product Kit Identifier
N
Circuit Breaker Application
not rated
Electrical Connection
pressure plate
Mounting Mode
plug-in
Number Of Spaces Required
3
Product Or Component Type
miniature circuit-breaker
Returnability
Yes
Sustainable Packaging
No
Pep Code
ENVPEP2212005EN
Pep Verification Date
2023-08-01
Psr Version
PSR-0005-ed2-EN-2016 03 29
Data Source
extrapolated product
Functional-unit Quantity
1
Reference Lifetime In Y
20
Energy Model - Installation [A5]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Energy Model - End Of Life [C1-c4]
Electricity mix; AC; consumption mix, at consumer; 120V; US
Width Nominal
57 mm
Nbr. Of Units In Pkg.
1
Take-back
No
Air Pollution (M3) Operational Energy Use [B6]
3173.9
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]
37.375
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
472.94
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]
30.218
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]
30.218
Customs Code
8536200040
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer
Certificate AgencyUL Listed, CSA
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.1 kg CO2 eq., 0.1289696252
Carbon Footprint Of The Manufacturing Phase [A1 To A3]5 kg CO2 eq., 4.8305707409
Local Data StatusPublishable
Return IndicatorY
Stock Policy1
ServiceabilityNo
Field Service DivisionPPIBS
Use Carbon Footprint37.375
Weee Product Category5
Eoli Availability DisplayYes
Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant By Exemption
Rohs Eur Full Compliance StatusCompliant By Exemption
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationResidential
Awg Gauge14 AWG...8 AWG copper12 AWG...8 AWG aluminium
Circuit Breaker Typeground fault protecting class A 6 mA
Energy Efficiency OptimizedFalse
Number Of Poles3P
Product AvailabilityStock - Normally stocked in distribution facility
Range Of ProductQO
Software VersionEIME v5.9.4
Total Lifecycle Carbon Footprint42 kg CO2 eq.
Database Version2022-01
Pcr VersionPCR-ed3-EN-2015 04 02
Type Of Verification For The PepIndependent external review
Functional-unit DescriptionProtect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 120 VAC and rated current 15A In. This protection is ensured in accordance with the following parameters:& 10- Number of poles 1 Pole;& 10- Rated breaking capacity 10 kA;
Functional-unit Unitunit
Energy Model - Manufacturing [A1-a3]Energy model used: Mexico
Energy Model - Use [B6]Electricity mix; AC; consumption mix, at consumer; 120V; US
Height Nominal105 mm
[Ue] Rated Operational Voltage208Y/120 V AC
Package Weight(Lbs)616.885 g
Warranty (In Months)18
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]455.05
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]5.7146
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]503.15
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]472.94
Water Pollution (M3) Operational Energy Use [B6]1842.6

Environment Attributes Main

China Rohs Regulation
Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
Recycled Metal Content At Cr Level
0 %
Carbon Footprint
42.4982927247
Circularity Profile
ENVEOLI2212005
Eu Rohs Directive
Compliant By Exemption
Packaging Without Single Use Plastic
Yes
Pep Code
ENVPEP2212005EN
Pcr Version
PCR-ed3-EN-2015 04 02
Type Of Verification For The Pep
Independent external review
Take BackNo
Mercury FreeYes
Ambient Air Temperature For Operation40 °C
Environmental DisclosureENVPEP2212005EN
Packaging Made With Recycled CardboardNo
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2023-08-01
Psr VersionPSR-0005-ed2-EN-2016 03 29

General Attributes

Product Or Component Type
miniature circuit-breaker
Range Of ProductQO

Contractual Warranty Attributes

Warranty Period
18 months
Warranty18 months
