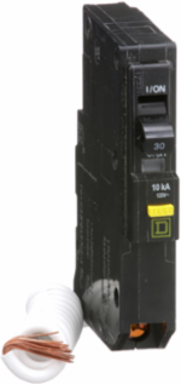

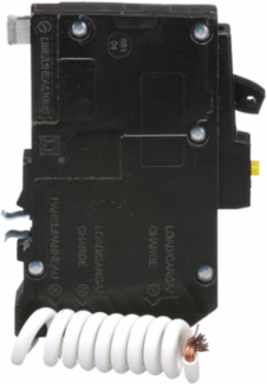

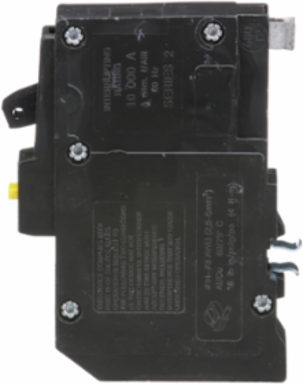

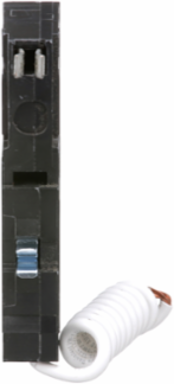

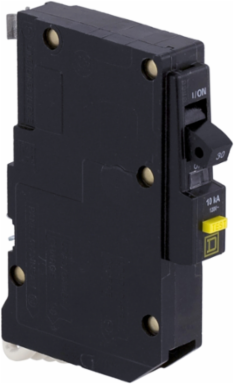

Square D QO130GFI Mini Circuit Breaker 30A 1 Pole 120VAC 10kA Ground Fault Protection
Square D QO130GFI Mini Circuit Breaker 30A 1 Pole 120VAC 10kA Ground Fault Protection
- MPN: QO130GFI
- UPC: 785901255093
- PPN: SCH-QO130GFI
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$151.94/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QO130GFI, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed CSA certified This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 30 A
- Breaking Capacity
- 10 kA 120 V AC 50/60 Hz
- Ground Fault Protection
- 6 mA Class A
- Wire Size
- AWG 14...AWG 8 copper, AWG 12...AWG 8 aluminum

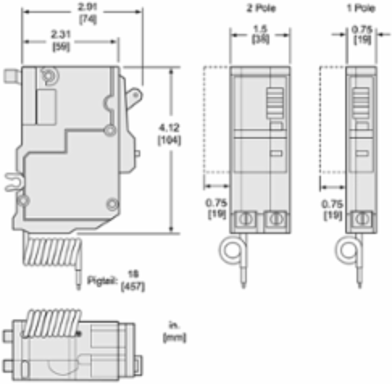

- Height
- 105 mm (4.13 in)
- Depth
- 74 mm (2.91 in)
- Certifications
- UL Listed, CSA Certified
- Mercury Free
- Yes
- China RoHS
- Out of scope
- Electrical Connection
- Pressure plate
Voltage120 V AC
Poles1P
Mounting TypePlug-in
Tightening Torque4-4.6 N.m (35.4-40.7 lbf.in)
Width19 mm (0.75 in)
Net Weight0.122 kg (0.27 lb)
Ambient Air Temperature for Operation40 °C (104 °F)
RoHS ComplianceCompliant with Exemptions
Warranty18 months
Range of ProductQO
