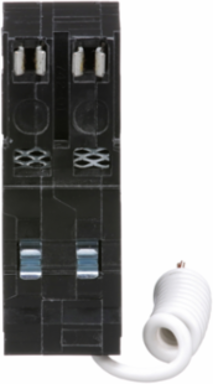

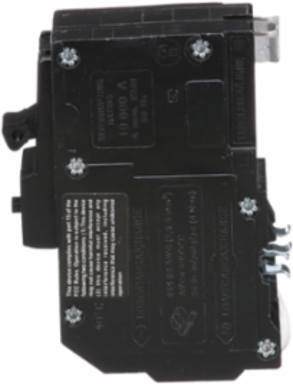

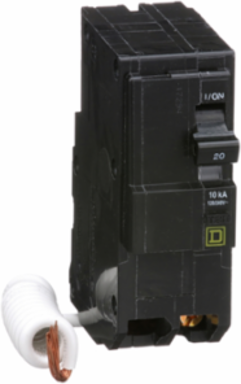

Square D QO220EPD Mini Circuit Breaker 20A 2 Pole 120/240V AC 10kA Ground Fault Protection
Square D QO220EPD Mini Circuit Breaker 20A 2 Pole 120/240V AC 10kA Ground Fault Protection
- MPN: QO220EPD
- UPC: 785901120742
- PPN: SCH-QO220EPD
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$581.43/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QO220EPD, come in plug-in mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Are designed to provide ground fault protection of equipment. UL listed CSA certified This 2 pole QO circuit breaker is rated at 20A at 120/240VAC. This unit provides 10kA breaking capacity and plug in mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 30mA ground fault B protection. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Current Rating
- 20 A
- Interrupt Rating
- 10 kA 120/240 V AC 50/60 Hz
- Number of Poles
- 2

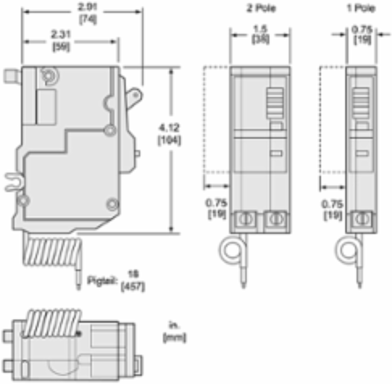

- Depth
- 74 mm (2.91 in)
- Width
- 38 mm (1.50 in)
- Mounting Type
- Plug-in
- Wire Size
- AWG 14-8 copper, AWG 12-8 aluminum
- Product Type
- Miniature circuit-breaker
- Certification
- UL Listed, CSA Certified, RoHS Compliant
- Country of Origin
- Mexico
Voltage120/240 V AC
Ground Fault ProtectionClass B 30 mA
Circuit Breaker TypeGround fault protecting Class B 30 mA
Height105 mm (4.13 in)
Net Weight0.426 kg (0.94 lb)
Electrical ConnectionPressure plate
Tightening Torque4-4.6 N.m (35.4 lbf.in)
Range of ProductQO
Ambient Rating40 °C (104 °F)
