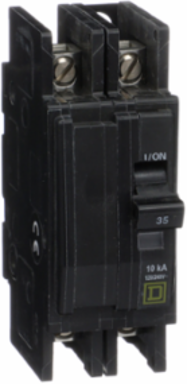

Square D QOU235 Mini Circuit Breaker, 35A, 2 Pole, 120/240 VAC, 10kA
- MPN: QOU235
- UPC: 785901489153
- PPN: SCH-QOU235
CAD
$290.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Description
QO™ and QOU Miniature Circuit Breakers, QOU235, is ideal for OEM applications. QOU miniature circuit breakers are used for overcurrent protection and switching on both AC and DC electrical systems. These Breakers These Breakers provide a means to manually open a circuit.
Documentation & Downloads
Specifications
Additional
- Amperage
- 35 A
- Current Interrupt Rating
- 10 kA
- Circuit Breaker Application
- HACR rated
- Mounting Mode
- Unit mount
- Tightening Torque
- 45 lbf.in (5.08 N.m)
- Width
- 1.5 in (38.10 mm)
- Product Or Component Type
- Miniature circuit-breaker
- Warranty
- 18 months
- EU RoHS Directive
- Compliant with Exemptions
- Toxic Heavy Metal Free
- Yes
- Halogen Content Performance
- Halogen free product
- Country of Origin
- Mexico
Voltage120/240 V AC, 120 V AC, 48 V DC
Circuit Breaker TypeStandard
Electrical ConnectionSlotted box lugs, line and load side
AWG GaugeAWG 14...AWG 2 aluminum/copper
Height4.05 in (102.87 mm)
Depth2.95 in (74.93 mm)
Range Of ProductQOU
Product CertificationsIEC, UL Listed, CSA
China RoHS RegulationProduct out of China RoHS scope
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
