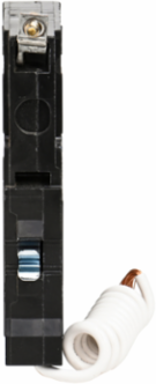

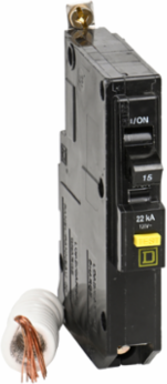

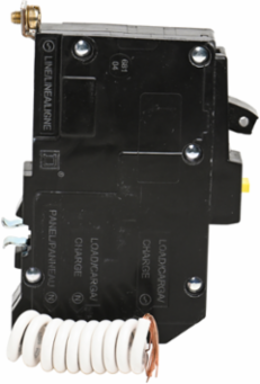

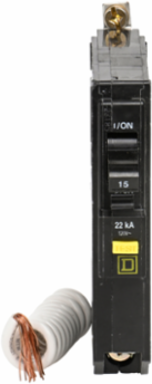

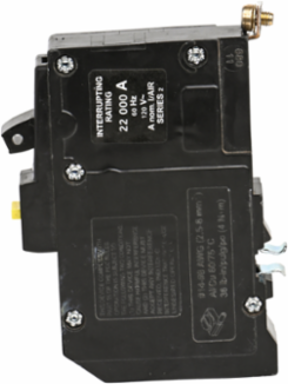

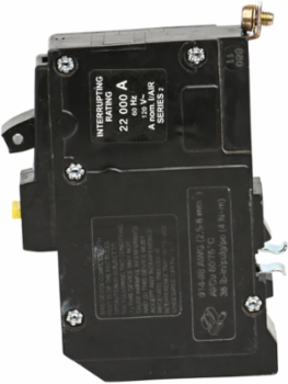

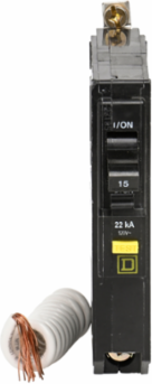

Square D QOB115VHGFI Mini Circuit Breaker 15A 1 Pole 120VAC 22kA Ground Fault A
- MPN: QOB115VHGFI
- UPC: 785901520672
- PPN: SCH-QOB115VHGFI
CAD
$871.58
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Mini Circuit Breaker 15A 1 Pole 120VAC 22kA Ground Fault A
Documentation & Downloads
Specifications
Additional
- Current Rating
- 15 A
- Breaking Capacity
- 22 kA 120 V AC 50/60 Hz
- Number of Poles
- 1P
- Wire Size
- AWG 14 to AWG 8 copper, AWG 12 to AWG 8 aluminum

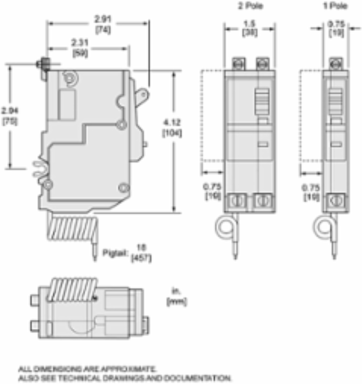

- Height
- 105 mm
- Depth
- 74 mm
- Electrical Connection
- Pressure plate
- Mercury Free
- Yes
- Halogen Content Performance
- Halogen free product
- China RoHS
- Product out of China RoHS scope
- REACH Regulation
- Contains SVHC above threshold
- Product Type
- Miniature circuit-breaker
Voltage120 V AC
Ground Fault ProtectionClass A 6 mA
Mounting TypeBolt-on
Tightening Torque4.6 N.m
Width19 mm
Net Weight0.240 kg
Ambient Temperature Rating40 C
Toxic Heavy Metal FreeYes
Product CertificationsUL listed, CSA
EU RoHS DirectiveCompliant with Exemptions
Range Of ProductQO
Warranty18 months
