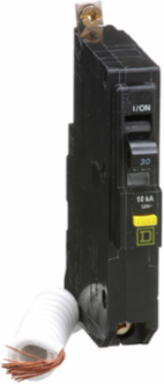

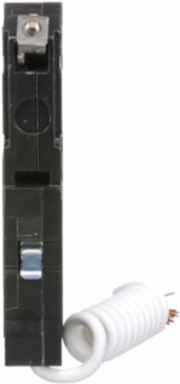

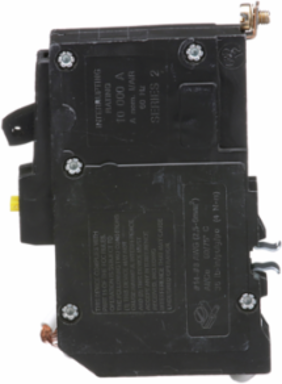

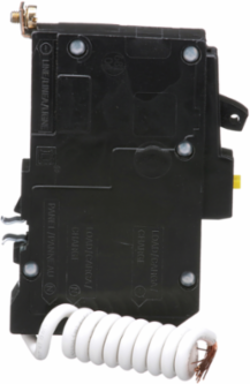

Square D QOB130GFI Mini Circuit Breaker 30A 1 Pole 120V 10kA Ground Fault Class A
Square D QOB130GFI Mini Circuit Breaker 30A 1 Pole 120V 10kA Ground Fault Class A
- MPN: QOB130GFI
- UPC: 785901368731
- PPN: SCH-QOB130GFI
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$453.08/ EA
Description
Square D™ QO™ and QOB Miniature Circuit Breakers, QOB130GFI, come in bolt-on mounted version and in a complete range of amperages and interrupting ranges to fit into various QO distribution panels. Qwik-Gard™ circuit breakers provide overload and short circuit protection, combined with Class A ground fault protection. UL listed CSA certified This 1 pole QO circuit breaker is rated at 30A at 120VAC. This unit provides 10kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. This product includes a 6mA ground fault A with pigtail. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
- Rated Current
- 30 A
- Poles
- 1P
- Ground Fault Protection
- Class A 6 mA
- Wire Size
- AWG 14 to AWG 8 copper, AWG 12 to AWG 8 aluminum
- Height
- 105 mm (4.13 in)
- Depth
- 74 mm (2.91 in)
- Product Certifications
- UL Listed, CSA Certified
- Electrical Connection
- pressure plate
- Range Of Product
- QO
Rated Operational Voltage120 V AC
Breaking Capacity10 kA 120 V AC 50/60 Hz
Mounting TypeBolt-on
Tightening Torque4 - 4 N.m, 4.6 N.m
Width19 mm (0.75 in)
Net Weight0.254 kg (0.56 lb)
Ambient Air Temperature For Operation40 °C (104 °F)
Circuit Breaker Typeground fault protecting class A 6 mA
