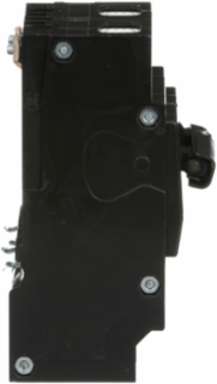

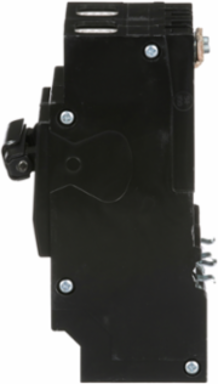

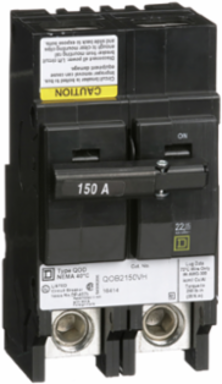

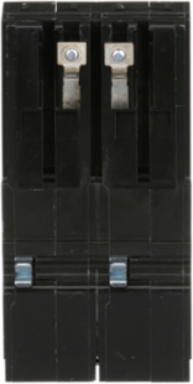

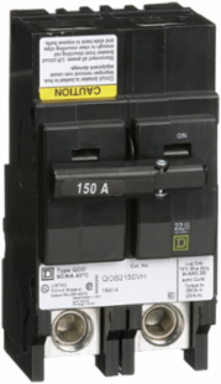

Square D QOB2150VH Mini circuit breaker, QO, 150A, 2 pole, 240VAC, 22kA, bolt on mount
Square D QOB2150VH Mini circuit breaker, QO, 150A, 2 pole, 240VAC, 22kA, bolt on mount
- MPN: QOB2150VH
- UPC: 785901065272
- PPN: SCH-QOB2150VH
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$775.57/ EA
Description
QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 150A at 240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555
Specifications
Environment
- Product Certifications
- UL listed || CSA
Ambient Air Temperature For Operation40 °C
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Sustainable Offer Status
- Green Premium product
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileN/A
Mercury FreeYes
Eu Rohs DirectiveCompliant with Exemptions
Halogen Content PerformanceHalogen free product
Complementary

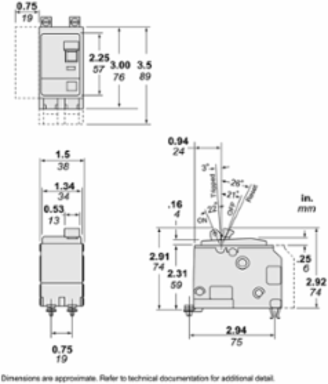

- Height
- 145 mm
- Tightening Torque
- 28.3-28.3 N.m
- Awg Gauge
- AWG 4...300 kcmil copper or aluminum
- Depth
- 124 mm
Breaking Capacity22 kA 120/240 V AC 50/60 Hz || 22 kA 240 V AC 50/60 Hz || 22 kA 120 V AC 50/60 Hz
Number Of Spaces Required4
Width76 mm
Net Weight0.549 kg
Specifications
- Circuit Breaker Application
- HACR rated
- Circuit Breaker Type
- standard
- Poles Description
- 2P
- [In] Rated Current
- 150 A
- [Ue] Rated Operational Voltage
- 120/240 V AC || 240 V AC || 120 V AC
Mounting Modebolt-on
Range Of ProductQO
Electrical Connectionbox lugs
Product Or Component Typeminiature circuit-breaker
