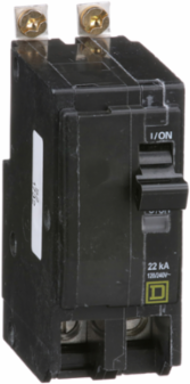

Square D QOB280VH Mini Circuit Breaker 80A 2-Pole 240VAC 22kA Bolt-On Mount

QO and QOB one, two and three pole thermal magnetic circuit breakers provide overcurrent protection and switching on ac and dc systems. These circuit breakers have an over center, trip free toggle mechanism with quick make, quick break action and positive handle indication. They also have VisiTrip trip indication, which provides a visual indication that the circuit breaker has tripped and interrupted the circuit. This 2 pole QO circuit breaker is rated at 80A at 240VAC. This unit provides 22kA breaking capacity and bolt on mounting. A full line of features and factory installed accessories are also available such as shunt trips, auxiliary switches and alarm switches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555. A full line of factory installed accessories, such as shunt trips, auxiliary switches and alarm switches are available. The box lug connectors will accept one 4 AWG to 2/0 AWG copper or aluminum wire. This circuit breaker has a height of 3.50 inches, a width of 1.50 inch and a depth of 2.91 inches. QO circuit breakers are UL Listed under UL File E84967 and are CSA Certified under CSA Master Contract 153555.
