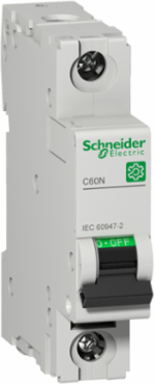

Schneider Electric M9F11120 Miniature Circuit Breaker 1P 20A C Curve 10kA IP20
- MPN: M9F11120
- PPN: SCH-M9F11120
- UNSPSC: 39121603
CAD
$49.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Multi9 C60N is a low voltage miniature circuit breaker (MCB). It is a 1P circuit breaker with 1 protected pole, 20A rated current and C tripping curve. The rated short circuit breaking capacity goes up to 3kA at 415VAC conforming to EN/IEC 60947-2 standard. This product complies with both industrial standard EN/IEC 60898-1 and residential standard EN/IEC 60947-2. It has been designed to offer enhanced protection by preventing, protecting people and equipment from electrical threats. This product protects from short circuit, earth leakage and overload. Its fast closing mechanism, overvolatge resistance and high performance limitation improve its service life. This product is dedicated for original equipment manufacturers (OEM) and control panel builders. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 240VAC. The Ui rated insulation voltage is 500VAC. The Uimp rated impulse withstand voltage is 6kV. The operating frequency is 50Hz or 60Hz. The product can be clipped on a DIN rail. Its width is 2 pitches of 9mm. Pollution degree is 3. Overvoltage category is IV. The product colour is light grey (RAL7035). The dimensions are (W) 18mm x (H) 81mm x (D) 72mm. The weight is 0.12kg. It has an IP20 degree of protection (as per IEC/EN 60529) on its terminals. The operating temperature is -30°C to 70°C. The storage temperature is -40°C to 80°C.
Features
- Protection against short-circuit and overload currents
- Positive contact indication indicating a suitability for isolation according to IEC/EN 60947-2 standard
- Green strip ensuring physical contact opening, allowing safe downstream operations
- Easy to install with unified terminal design and wiring indication
- Increased product service life thanks to overvoltage resistance and high performance limitation
- Fast closing independent of the speed of actuation of the toggle
- Total flexibility with a Line-Load connection reversibility
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Bulgaria |
|---|
| Depth | 72 mm |
|---|
Physical Attributes
| Color | Gray |
|---|
| Wire Stripping Length | 14 mm for top or bottom connection |
|---|
Complementary Attributes
| Ics Rated Service Breaking Capacity | 2.25 kA 75 % GB/T 14048.2 - 415 V AC 50/60 Hz, 15 kA 100 % GB/T 14048.2 - <= 72 V DC7.5 kA 75 % EN/IEC 60947-2 - 240 V AC 50/60 Hz2.25 kA 75 % EN/IEC 60947-2 - 415 V AC 50/60 Hz15 kA 100 % EN/IEC 60947-2 - <= 72 V DC, 7.5 kA 75 % GB/T 14048.2 - 240 V AC 50/60 Hz |
|---|---|
| Line Rated Current | 20 A 50 °C EN/IEC 60947-2 |
| Uimp Rated Impulse Withstand Voltage | 6 kVEN/IEC 60947-2 |
| Ue Rated Operational Voltage | <= 72 V DC, <= 72 V DC, 240 V AC 50/60 Hz between phase and neutral, 415 V AC 50/60 Hz between phase and neutral, <= 72 V DC, <= 72 V DC |
|---|---|
| Ui Rated Insulation Voltage | 500 V AC 50/60 Hz EN/IEC 60947-2 |
Important Information Attributes
| Persona Type Ids | EU, OM, OM8 |
|---|---|
| Network Type | DC, AC |
| Quality Labels | UKCA, RCM |
| Certificate Agency | EAC, KC, CCC |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 0.3195362799843165, 0.3 kg CO2 eq. |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 0.8 kg CO2 eq., 0.7769174251869726 |
| Local Data Status | Publishable |
| Return Indicator | Y |
| Serviceability | No |
| Field Service Division | PPIBS |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant |
| Rohs Eur Full Compliance Status | Compliant |
| China Rohs Label | 1 |
| Without Single Use Plastic | Yes |
| Tier Id | 2 |
| Function Option Id | STANDARD |
| Market Segmentation Id | COMMERCIAL |
| Product Kit Identifier | N |
| Contact Position Indicator | yes |
| Curve Code | C |
| Device Short Name | C60N |
| Energy Efficiency Optimized | False |
| Limitation Class | 3 |
| Magnetic Tripping Limit | 8.5 x In +/- 20 % AC12 x In +/- 20 % DC |
| Mounting Mode | clip-on |
| Network Frequency | 50/60 Hz |
| Number Of Protected Poles | 1 |
| Power Losses Per Pole | 2.2 W |
| Product Name | Multi9 C60 |
| Provision For Padlocking | padlockable |
| Range Of Product | Multi9 |
| Software Version | v5.9.4 |
| Sustainable Packaging | Yes |
| Total Lifecycle Carbon Footprint | 13 kg CO2 eq. |
| Trip Unit Technology | thermal-magnetic |
| Utilisation Category | category A EN/IEC 60947-2 |
| Rated Current 3 | 20 A |
| Data Source | extrapolated product |
| Width Nominal | 18 mm |
| Customs Code | 8536200040 |
| Earth Leakage Protection | separate block |
| Silicone Free | No |
| Functional Unit Description | Protect during 20 years the installation against overloads and short-circuits in circuit with assigned voltage 240VAC and rated current 16A (In). This protection is ensured in accordance with the following parameters:& 10- Number of poles: 1& 10- Rated breaking capacity Icu: 10kA& 10- Tripping curve: C |
| Functional Unit Unit | unité (unit) |
| Energy Consumption On Product Lifetime In Kwh | 28.908 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder |
|---|---|
| Poles Description | 1P |
| Connections Terminals | tunnel type terminal top or bottom) 1-25 mm² - rigid, tunnel type terminal top or bottom) 1-25 mm² - flexible, tunnel type terminal top or bottom) 1-25 mm² - flexible with ferrule |
| Carbon Footprint Of The Distribution Phase A4 | 0.015924550784494854, 0 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0 kg CO2 eq., 0.005167157483393605 |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 12 kg CO2 eq., 11.848692307692307 |
| Local Publishable Date | 2026-07-13 |
| Device Type | LV equipment - Low voltage circuit breaker |
| Traceability | No |
| Average Life Duration | 15 year(s) |
| Weee Product Category | 5 |
| Eoli Availability Display | No need of specific recycling operations |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | Yes |
| Rohs Eur Conformity Date | 1645 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 2 |
| Function Option | Standard |
| Market Segmentation | Commercial |
| Connection Pitch | 18 mm between devices |
| Control Type | toggle |
| Device Application | distribution |
| Electrical Durability | 10000 cycles |
| Heat Dissipation | 3-3 W 240 V - 20 A |
| Local Signalling | ON/OFF indication |
| Mechanical Durability | 20000 cycles |
| Mounting Support | DIN rail |
| Number Of Poles | 1P |
| Overvoltage Category | IV |
| Product Availability | Stock - Normally stocked in distribution facility |
| Product Or Component Type | miniature circuit-breaker |
| Range | Multi9 |
| Returnability | Yes |
| Suitability For Isolation | yes EN/IEC 60947-2 |
| Tightening Torque | 2-2 N.m top or bottom |
| Total Power Losses | 2.2 W |
| Tropicalisation | 2 IEC 60068-1 |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Database Version | 2022-01 |
| Height Nominal | 81 mm |
| Nbr. Of Units In Pkg. | 1 |
| Tsca Regulation | Does not contain Section 6H Chemical |
| Halogen Free Status | Halogen free plastic parts product |
| Warranty In Months | 18 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 20 |
| Recyclability Potential In % | 56 |
Environment Attributes Main
| Ambient Air Temperature For Storage | -40-80 °C, -40-80 °C |
|---|---|
| Halogene Performance | Halogen free plastic parts product |
| China Rohs Regulation | X |
| Mercury Free | Yes |
| Carbon Footprint | 12.999247901164072 |
| Ambient Air Temperature For Operation | -30-70 °C-30-70 °C |
| Eu Rohs Directive | Compliant |
| Ip Degree Of Protection | IP20 conforming to IEC 60529IP40 (modular enclosure) conforming to IEC 60529 |
| Packaging Without Single Use Plastic | Yes |
| Relative Humidity | 95-95 % 55-55 °C |
| Pep Verification Date | 2023-03-02 |
| Psr Version | PSR-0005-ed2-EN-2016 03 29 |
| Take Back | No |
|---|---|
| Recycled Metal Content At Cr Level | 0 % |
| Toxic Heavy Metal Free | Yes |
| Silicon Free | No |
| 9 Mm Pitches | 2 |
| Environmental Disclosure | ENVPEP1304004EN |
| Halogen Content Performance | Halogen free plastic parts product |
| Packaging Made With Recycled Cardboard | Yes |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1304004EN |
| Pcr Version | PEP-PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent external review |
General Attributes
| Product Or Component Type | miniature circuit-breaker |
|---|
| Range Of Product | Multi9 |
|---|
ETIM
| ETIM 8 | EC000042 |
|---|---|
| ETIM 10 | EC000042 |
| ETIM 9 | EC000042 |
|---|
