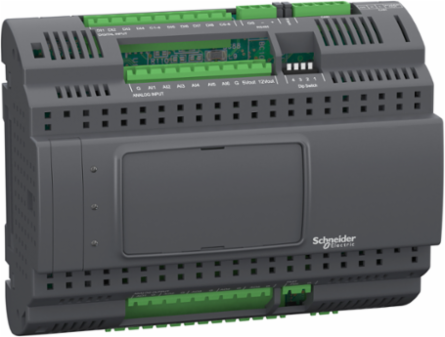

Schneider Electric TM171EP27R Modicon M171/M172 Additional I/O Module, 27 I/O, IP20, 0.19 kg
- MPN: TM171EP27R
- PPN: SCH-TM171EP27R
- UNSPSC: 32151705
CAD
$353.98
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This product is part of the Modicon M171/M172 range, an offer I/O modules for HVAC solutions. This additional I/O module offers 8 discrete inputs with sink or source (positive/negative) discrete input logic. It is a module with discrete input voltage ranges from 24V AC/DC to 48V DC and analogue output voltage ranges from 0V to 15V. This module offers 3 SPST relay output, 2 SPST relay output with same common and 2 SPDT relay output with independent common discrete output. It is an IP20 rated product. Its dimensions are 140mm (width) x 61.6mm (depth) x 110mm (height). It weighs 0.19kg. The main application of this module is HVAC and pumping solution. Modicon M171/M172 benefits maximize profitability and energy efficiency by using scalable automation control with the Modicon M171/M172. Modicon M171/M172 logic controllers and intuitive software EcoStruxure Machine Expert - HVAC are designed for maximizing profitability and energy efficiency.
Features
- Modicon M171/M172/M173 logic controllers help to maximize profitability/energy efficiency
- Reduce time to market thanks to the intuitive programming software EcoStruxure Machine Expert - HVAC
- All of the features and functions you need to design and build machines more profitably are already embedded
- Application Function Blocks reduce energy consumption and help to improve system efficiency
- Stay connected everywhere with multiple BMS connectivity and web server embedded
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | Italy |
|---|---|
| Depth | 61.6 mm |
| Weight | 450 g |
|---|
Complementary Attributes
| Us Rated Supply Voltage | 24 V AC, 48 V |
|---|
Important Information Attributes
| Persona Type Ids | EU, OM, OM8, SI |
|---|---|
| Certificate Agency | CE, cURus, EAC, CSA |
| Carbon Footprint Of The End Of Life Phase C1 To C4 | 1 kg CO2 eq., 1.350286299571271 |
| Carbon Footprint Of The Manufacturing Phase A1 To A3 | 44 kg CO2 eq., 44.2853833873189 |
| Local Data Status | Publishable |
| Return Indicator | N |
| Weee Scope | In |
| Scope Perimeter | At least in Europe |
| End Of Life Doc Ref | ENVEOLI1710005EN |
| Reach Full Compliance Status Id | CONTAINS_SVHC |
| Rohs Eur In Scope | No |
| Rohs Eur Conformity Date | 1929 |
| China Rohs In Scope | Yes |
| With Recycled Cardboard | Yes |
| Tier Id | 1 |
| Function Option Id | STANDARD |
| Market Segmentation Id | INDUSTRIAL |
| Product Kit Identifier | N |
| Mounting Support | DIN rail |
| Overvoltage Category | II |
| Product Or Component Type | additional I/O module |
| Range Of Product | Modicon M171/M172 |
| Returnability | No |
| Software Version | v6.2.5-6 |
| Total Lifecycle Carbon Footprint | 792 kg CO2 eq. |
| Upgradeability | Yes |
| Database Version | 2024-01 |
| Height Nominal | 110 mm |
| Input/Output Number | 6 analog input5 analog output8 digital input7 digital output1 high-speed counter |
| Nbr. Of Units In Pkg. | 1 |
| Warranty In Months | 18 |
| Functional Unit Description | To control simple and compact machines for HVAC/R applications, e.g. fans and water pumps through TRIAC high voltage output, with a power of 18W for a 100% of the time for 10 years. |
| Functional Unit Unit | unit |
| Energy Consumption On Product Lifetime In Kwh | 1576.8 |
| Persona Type Names | End User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator |
|---|---|
| Carbon Footprint Of The Distribution Phase A4 | 0.2118598644282191, 0.2 kg CO2 eq. |
| Carbon Footprint Of The Installation Phase A5 | 0.004797190078512364, 0 kg CO2 eq. |
| Carbon Footprint Of The Use Phase B2 B3 B4 B6 | 746 kg CO2 eq., 746.0855957004956 |
| Local Publishable Date | 2026-01-12 |
| Weee Applicability | Finished product |
| Weee Product Category | 5 |
| Eoli Availability Display | Yes |
| Reach Full Compliance Status | Reference contains Substances of Very High Concern above the threshold |
| Reach Compliance Directive | Reference contains Substances of Very High Concern above the threshold |
| Rohs Eur Status | Compliant By Exemption |
| Rohs Eur Full Compliance Status | Compliant By Exemption |
| China Rohs Label | 5 |
| Product Contributes To Saved And Avoided Emissions | No |
| Tier | 1 |
| Function Option | Standard |
| Market Segmentation | Industrial |
| Display Type | Without Display |
| Number Of Port | 1 CAN port - screw terminal block |
| Product Availability | Non-Stock - Not normally stocked in distribution facility |
| Product Specific Application | HVAC and pumping solution |
| Realtime Clock | without clock at -20-55 °C |
| Sensor Power Supply | 5-5 V DC 50 mA12-12 V DC 150 mA |
| Sustainable Packaging | No |
| Updatability | Yes |
| Weee Label | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins. |
| Data Source | extrapolated product |
| Width Nominal | 140 mm |
| Number Of Inputs/Outputs | 27 |
| Customs Code | 9032100030 |
| Packaging Weight In G | 120 |
| Functional Unit Quantity | 1 |
| Reference Lifetime In Y | 10 |
Environment Attributes Main
| Ambient Air Temperature For Operation | -20-55 °C UL 60730-1, -20-55 °C UL 60730-1-20-55 °C UL 60730-1, -20-55 °C UL 60730-1 |
|---|---|
| Directives | 86/188/EEC - physical agents (noise) directive, 2006/95/EC - low voltage directive |
| Recycled Metal Content At Cr Level | 0 % |
| Mercury Free | Yes |
| Circularity Profile | ENVEOLI1710005EN |
| Eu Rohs Directive | Compliant By Exemption |
| Packaging Made With Recycled Cardboard | Yes |
| Relative Humidity | 10-90 % non-condensing |
| Pep Verification Date | 2025-12-12 |
| Psr Version | No PSR |
| Ambient Air Temperature For Storage | -40-85 °C, -40-85 °C |
|---|---|
| Take Back | No |
| China Rohs Regulation | X |
| Carbon Footprint | 791.9379224418925 |
| Environmental Disclosure | ENVPEP1710005EN |
| Ip Degree Of Protection | IP20 |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| Pep Code | ENVPEP1710005EN |
| Pcr Version | PCR-ed4-2021 09 06 |
| Type Of Verification For The Pep | Independent internal review |
General Attributes
| Product Or Component Type | additional I/O module |
|---|---|
| Upgradeability | Yes |
| Range Of Product | Modicon M171/M172 |
|---|
ETIM
| ETIM 8 | EC001421 |
|---|---|
| ETIM 10 | EC001421 |
| ETIM 9 | EC001421 |
|---|
Output Attributes
| Analogue Output Number | 3 voltage/current 0…10 V or 4…20 mA, 2 open collector/current 1 kHz, 12 V, 35 mA or 4…20 mA |
|---|---|
| Discrete Output Current | 8 A relay SPDT5 A relay SPST |
| Discrete Output Number | 3 relay outputs SPST with same common, 2 relay outputs SPST with same common2 relay outputs SPDT with independent common |
|---|
Input Attributes
| Analogue Input Type | voltage 0...5 V ratiometric)current 4...20 mAimpedance 0...1500 hOhm, impedance 0...300 daOhm, direct input, NTC temperature probe - 50...110 °C 0.1 °C extended), voltage 0...10 VPt 1000 temperature probe - 200...800 °C 0.1 °C, NTC temperature probe - 40...150 °C 0.1 °C |
|---|---|
| Discrete Input Current | 2.5 mA |
| Discrete Input Number | 8 |
| Input Impedance | 20 kOhm |
| Analogue Input Number | 2 analog input NTC4 configurable |
|---|---|
| Discrete Input Logic | sink or source (positive/negative) |
| Discrete Input Voltage | 24 V AC/DC48 V DC |
Batteries & Runtime Attributes
| Removable Battery | No |
|---|
