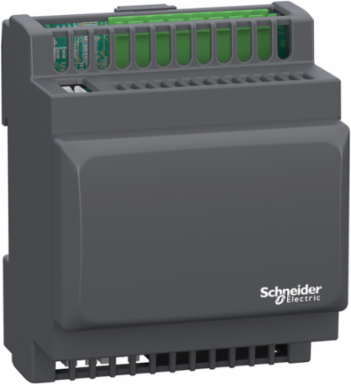

Schneider Electric TM171EO22R Modicon M171/M172 Expansion Module 22 I/O, 0.19 kg, 61.6 mm Depth
- MPN: TM171EO22R
- PPN: SCH-TM171EO22R
CAD
$179.15
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
This I/O expansion module is part of the Modicon M171/M172/M173 range, a control offer for HVAC/Pumping applications. This additional I/O module offers 6 digital inputs, 5 analog inputs, 6 digital outputs, and 5 analog outputs. It has one port for LAN expansion bus. This module offers Additional I/O to the M171 controller. DIs are volt-free, and AIs are are NTC, 0-20mA, 4-20mA, 0-10V, 0-5V, 0-1V. DOs are 2A 250Vac, or open collector, AOs are open collector PPM/PWM or 0-10V. It measures 70.2mm wide, 61.6mm deep, 87mm high, and weighs 0.385kg. This controller is designed for HVAC solutions. It is certified by CE, CSA, EAC, RCM, and CuRus. It is compatible with M171 optimized controllers. It is sold in a 1-piece package. It mounts on 35mm DIN rail. Modicon M171/M172/M173 controllers are designed for complete automation solutions for HVAC and Pumping machines. Modicon M171/M172/M173 range is for OEMs and helps to maximize profitability or energy efficiency in HVAC applications.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy, Sweden, United States
Depth61.6 mm
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8, SI
- [Us] Rated Supply Voltage
- 12..., 24 V
- Carbon Footprint Of The Distribution Phase [A4]
- 0.1115051918043258, 0.1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0.004696289541949586, 0 kg CO2 eq.
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 166 kg CO2 eq., 165.7967990445545
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- Y
- Weee Applicability
- Finished product
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Contacts Usage
- volt-free contacts
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Product Specific Application
- HVAC and pumping solution
- Returnability
- Yes
- Software Version
- v6.2.5-6
- Total Lifecycle Carbon Footprint
- 177 kg CO2 eq.
- Upgradeability
- Yes
- Pep Code
- ENVPEP1710004EN
- Pep Verification Date
- 2025-11-25
- Psr Version
- No PSR
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 10
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Italy, IT
- Energy Model - Use [B6]
- Electricity origin
- Height Nominal
- 87 mm
- Number Of Inputs/Outputs
- 22
- Package Weight(Lbs)
- 263.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder, System Integrator
Input/Output Number5 analog output6 digital input, 5 analog input, 6 digital output
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5 kg CO2 eq., 0.5216254315182522
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.41812723959728
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1710004EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1929
China Rohs In ScopeYes
With Recycled CardboardYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Number Of Port1 LAN expansion bus
Product Or Component Typeadditional I/O module
Range Of ProductModicon M171/M172
Sensor Power Supply12-12 V DC 85 mA5-5 V DC 20 mA
Sustainable PackagingYes
UpdatabilityYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2024-01
Pcr VersionPCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo control simple and compact machines for HVAC applications (e.g. fans and water pumps) for a 100% of the time for 10 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh350.4
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Width Nominal70.2 mm
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536908585
Environment Attributes Main
- Take Back
- No
- China Rohs Regulation
- X
- Carbon Footprint
- 176.8527531970163
- Environmental Disclosure
- ENVPEP1710004EN
- Packaging Made With Recycled Cardboard
- Yes
- Pep Code
- ENVPEP1710004EN
- Pcr Version
- PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Recycled Metal Content At Cr Level0 %
Mercury FreeYes
Circularity ProfileENVEOLI1710004EN
Eu Rohs DirectiveCompliant By Exemption
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2025-11-25
Psr VersionNo PSR
General Attributes
- Product Or Component Type
- additional I/O module
- Upgradeability
- Yes
Range Of ProductModicon M171/M172
ETIM
- ETIM 8
- EC001421
ETIM 9EC001421
Output Attributes
- Analogue Output Number
- 3 voltage 0...10 V, 2 PWM/PPM 20 kHz, 12 V, 35 mA
- Discrete Output Number
- 1 open collector3 relay outputs SPST with same common2 relay outputs SPST with independent common
Discrete Output Current2 A relay
Input Attributes
- Analogue Input Type
- voltage 0...5 V ratiometric), voltage 0...10 VNTC temperature probe - 50...100 °C 0.1 °Ccurrent 0...20 mA/4...20 mA, voltage 0...1 V
- Discrete Input Logic
- sink or source (positive/negative)
Analogue Input Number3 analog input NTC2 configurable
Discrete Input Number6
