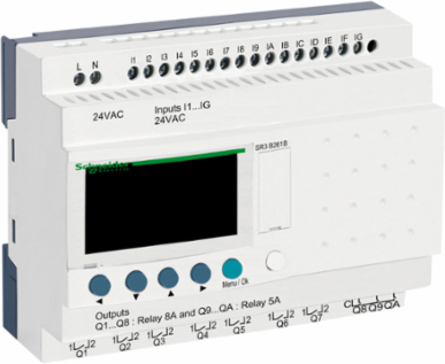

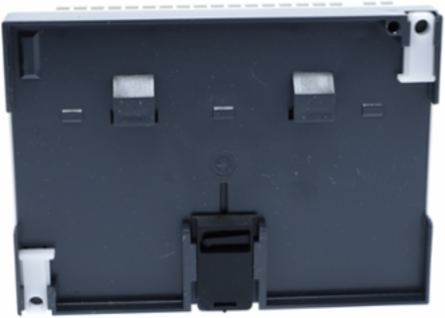

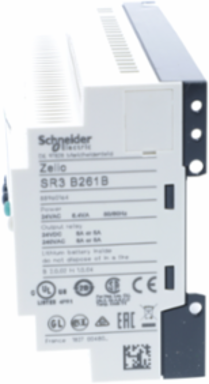

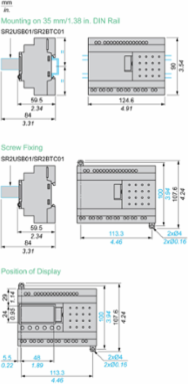

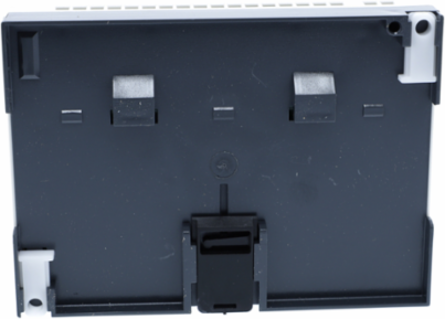

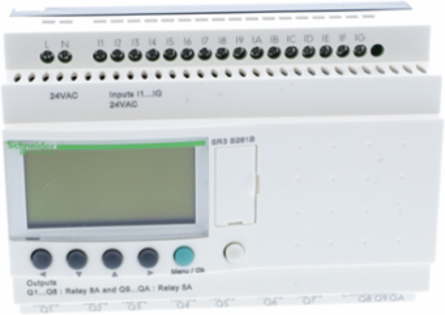

Schneider Electric SR3B261B Zelio Logic Modular Smart Relay, 24V AC, 24 I/O, 10 Outputs

  • MPN: SR3B261B
  • PPN: SCH-SR3B261B
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $452.54

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Company Stock:

    0

    Loading dialog...

    Looking to buy a large quantity?

    To view product inventory

    Spec sheet

    Description

    This Schneider Electric Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 24 volts alternating current, has 24 inputs / outputs with screw-clamp terminals. It has an integrated clock and LCD display. This compact smart relays / programmable controller is ideal for management, remote control or monitoring of simple automation systems. It is suitable for both industrial and commercial applications. It has compact form-factor, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Simple ladder programming, adapted for non-specialists. Discovery package, coming with Zelio Soft programming software, the simplest way to learn and use this relay. Built-in EEPROM flash memory for data backup up to 10 years, easy-to-recover after a power shortage or incident. More I/O than SR2 model, for larger applications. Simple to select, install and program, Zelio Logic is suitable for all your applications. Flexible, it offers you the choice of 2 ranges, compact or modular, extendable and 2 programming languages (FBD or LADDER). Easy to use, Zelio Logic provides a real alternative to solutions based on cabled logic or specific cards.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    Brazil, France

    Complementary Attributes

    Maximum Supply Current
    280 mA without extension), 415 mA with extensions)
    Maximum Altitude Transport3048 m

    Important Information Attributes

    Persona Type Ids
    EU, OM, OM8
    Clock Drift
    12 min/year 0-55 °C, 6 s/month 25-25 °C
    Current State 1 Guaranteed
    >= 2 mA discrete input), >= 2 mA discrete input)>= 2 mA discrete input), >= 2 mA discrete input)
    Environmental Characteristic
    EMC directive conforming to IEC 61000-6-2, EMC directive conforming to IEC 61000-6-3, EMC directive conforming to IEC 61000-6-4, EMC directive conforming to IEC 61131-2 zone B, low voltage directive conforming to IEC 61131-2
    Operating Rate In Hz
    0.1 Hz at Ie)relay output, 10 Hz no load)relay output
    Response Time
    50...255 ms FBD from state 1 to state 0)discrete input50 ms ladder from state 0 to state 1)discrete input, 50 ms ladder from state 1 to state 0)discrete input, 50...255 ms FBD from state 0 to state 1)discrete input, 10 ms from state 0 to state 1)relay output, 5 ms from state 1 to state 0)relay output
    Voltage State 0 Guaranteed
    <= 5 V discrete input, <= 5 V discrete input<= 5 V discrete input, <= 5 V discrete input
    Certificate Agency
    GOST, GL, UL, CSA, C-tick
    Carbon Footprint Of The Distribution Phase [A4]
    0.762363910507548, 0.8 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]
    0.1 kg CO2 eq., 0.07216399082770371
    Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
    167 kg CO2 eq., 166.6066294262015
    Local Publishable Date
    2026-01-12
    Future Imap
    402.12
    Stocking Flag
    N
    Device Type
    PLC System - PLC CPU
    Traceability
    Yes
    Average Life Duration
    20 year(s)
    Weee Product Category
    5
    Eoli Availability Display
    Yes
    Reach Full Compliance Status
    Reference contains Substances of Very High Concern above the threshold
    Reach Compliance Directive
    Reference contains Substances of Very High Concern above the threshold
    Rohs Eur Status
    Compliant By Exemption
    Rohs Eur Full Compliance Status
    Compliant By Exemption
    China Rohs Label
    5
    Without Single Use Plastic
    Yes
    Dangerous Goods Code
    LITHIUM METAL BATTERIES IN EQUIP. BUTTON CELL-BAT EXEMPT
    Tier
    1
    Function Option
    Standard
    Market Segmentation
    Industrial
    Checks
    program memory on each power up
    Contacts Type And Composition
    NO relay output
    Immunity To Microbreaks
    10 ms repeated 20 times
    Local Display
    with
    Overvoltage Category
    III conforming to IEC 60664-1
    Product Or Component Type
    modular smart relay
    Range Of Product
    Zelio Logic
    Software Version
    v6.2.2
    Supply Voltage Limits
    20.4-28.8 V
    Tightening Torque
    0.5 N.m
    Weee Label
    The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version
    2023-02
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Functional-unit Description
    To provide automated control of simple systems from 10 to 40 I/O for 10 years 100% of the time.
    Functional-unit Unit
    Unit
    Energy Model - Manufacturing [A1-a3]
    France, FR
    Energy Model - Use [B6]
    Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Uimp] Rated Impulse Withstand Voltage
    4 kV EN/IEC 60947-1 and EN/IEC 60664-1
    Disturbance Radiated/Conducted
    class B EN 55022-11 group 1
    Package Weight(Lbs)
    385.000 g
    Warranty (In Months)
    18
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Current State 0 Guaranteed<= 0.5 mA discrete input), <= 0.5 mA discrete input)<= 0.5 mA discrete input), <= 0.5 mA discrete input)
    Electrical DurabilityAC-12 500000 cycles 230 V, 1.5 A relay output IEC 60947-5-1, AC-15 500000 cycles 230 V, 0.9 A relay output IEC 60947-5-1, DC-12 500000 cycles 24 V, 1.5 A relay output IEC 60947-5-1, DC-13 500000 cycles 24 V, 0.6 A relay output IEC 60947-5-1
    Number Or Control Scheme Lines0-500 FBD, 0-240 ladder
    Power Consumption In Va10 VA with extensions, 7.5 VA without extension
    Switching Capacity In Ma>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)>= 10 mA 12 V relay output), >= 10 mA 12 V relay output), >= 10 mA 12 V relay output)
    Voltage State 1 Guaranteed>= 14 V discrete input, >= 14 V discrete input>= 14 V discrete input, >= 14 V discrete input
    Connections - Terminalsscrew terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) semi-solid, screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 25...AWG 14) solid, screw terminals, 1 x 0.25...1 x 2.5 mm² AWG 24...AWG 14) flexible with cable end, screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) solid, screw terminals, 2 x 0.25...2 x 0.75 mm² AWG 24...AWG 18) flexible with cable end
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.9616667586330182, 1 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]47 kg CO2 eq., 47.042549663226794
    Local Data StatusPublishable
    Return IndicatorY
    Future Msrp523.60
    Stock Policy2
    ServiceabilityYes
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    End Of Life Doc RefENVEOLI0604006EN
    Reach Full Compliance Status IdCONTAINS_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1846
    China Rohs In ScopeYes
    With Recycled CardboardYes
    Product Contributes To Saved And Avoided EmissionsNo
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Clockwith
    Cycle Time6-90 ms
    Isolation Voltage1780 V
    Mechanical Durability10000000 cycles relay output
    Product AvailabilityStock - Normally stocked in distribution facility
    Protection Typeagainst inversion of terminals (control instructions not executed)
    ReturnabilityYes
    Supply Frequency50/60 Hz
    Sustainable PackagingYes
    Total Lifecycle Carbon Footprint215 kg CO2 eq.
    Pep CodeENVPEP0604006EN
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime, In Y10
    Energy Model - Installation [A5]Electricity Mix; Low voltage; 2018; Europe, EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; Low voltage; 2018; Europe, EU-27
    [Us] Rated Supply Voltage24 V
    Nbr. Of Units In Pkg.1
    Take-backNo

    Environment Attributes Main

    Ambient Air Temperature For Operation
    -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2, -20-55 °C IEC 60068-2-1 and IEC 60068-2-2-20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2, -20-40 °C in non-ventilated enclosure IEC 60068-2-1 and IEC 60068-2-2
    Ip Degree Of Protection
    IP20 IEC 60529 terminal block), IP40 IEC 60529 front panel)
    Recycled Metal Content At Cr Level
    0 %
    Mercury Free
    Yes
    Circularity Profile
    ENVEOLI0604006EN
    Eu Rohs Directive
    Compliant By Exemption
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Code
    ENVPEP0604006EN
    Pcr Version
    PCR-4-ed4-EN-2021 09 06
    Type Of Verification For The Pep
    Independent internal review
    Ambient Air Temperature For Storage-40-70 °C, -40-70 °C
    Take BackNo
    China Rohs RegulationX
    Carbon Footprint215.44537374939657
    Environmental DisclosureENVPEP0604006EN
    Operating Altitude6561.68 ft (2000 m)
    Packaging Without Single Use PlasticYes
    Relative Humidity95-95 % without condensation or dripping water
    Pep Verification Date2024-11-01
    Psr VersionPSR-0005-ed3.1-EN-2023 12 08

    General Attributes

    Product Or Component Type
    modular smart relay
    Range Of ProductZelio Logic

    ETIM

    ETIM 8
    EC001417
    ETIM 9EC001417

    Output Attributes

    Output Thermal Current
    5 A for 2 outputs relay output, 8 A for 8 outputs relay output
    Number Of Outputs
    10 relay
    Output Voltage Limits5...30 V DC relay output), 24...250 V AC

    Contractual Warranty Attributes

    Warranty Period
    18 months
    Warranty18 months

    Input Attributes

    Discrete Input Frequency
    47...53 Hz, 57...63 Hz
    Discrete Input Number
    16
    Input Impedance
    4.6 kOhm discrete input
    Discrete Input Current4.4 mA
    Discrete Input Voltage24 V AC
