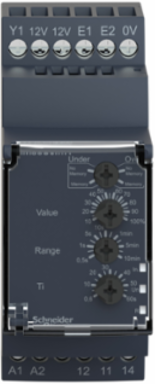

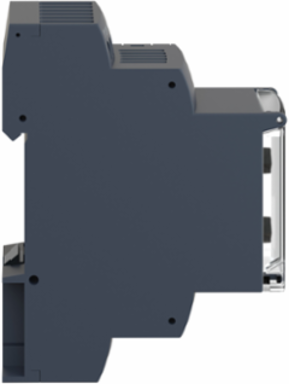

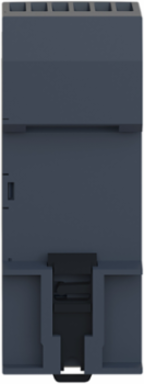

Schneider Electric RM35S0MW Speed Control Relay, 5A, 1 C/O, 24-240V AC/DC, 35mm Width
Schneider Electric RM35S0MW Speed Control Relay, 5A, 1 C/O, 24-240V AC/DC, 35mm Width
- MPN: RM35S0MW
- PPN: SCH-RM35S0MW
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$250.55/ EA
Description
This Harmony RM35-S control relay allows monitoring of speed control. This modular control relay is ideal for monitoring of electrical values and speed variation in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market medium form-factors with 35mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 3-pole DIN device. It also offers a selectable memory function, integral LED for indicating control status, sealable cover, with simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. Multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0
Specifications
Environment
- Product Certifications
- C-Tick || GOST || UL || GL || CSA
- Standards
- NF EN 60255-6 || IEC 60255-6
- Dielectric Test Voltage
- 2 kV AC 50 Hz
- Shock Resistance
- 15 gn 11 ms IEC 60255-21-1
- Ip Degree Of Protection
- IP20 IEC 60529 terminals) || IP30 IEC 60529 casing)
- Ambient Air Temperature For Storage
- -40-70 °C
- Non-Dissipating Shock Wave
- 4 kV
Ambient Air Temperature For Operation-20-50 °C
Immunity To Microbreaks50 ms
Electromagnetic Compatibilityemission standard for industrial environments IEC 61000-6-4 || emission standard for residential, commercial and light-industrial environments IEC 61000-6-3 || immunity for industrial environments NF EN/IEC 61000-6-2
Vibration Resistance0.35 mm 5-57.6 Hz)IEC 60068-2-6/IEC 60255-21-1 || 1 gn 57.6-150 Hz)IEC 60068-2-6/IEC 60255-21-1
Pollution Degree3 IEC 60664-1
Relative Humidity95-95 % 55-55 °C IEC 60068-2-30
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1504008EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1504008EN
Complementary
- Maximum Supply Current For Sensors
- 40 mA < 24 V AC 25 °C || 40 mA < 24 V DC 25 °C || 50 mA 24...240 V AC || 50 mA 24...240 V DC
- Insulation Resistance
- > 500 MOhm 500 V DC between supply and relay output IEC 60255-5 || > 500 MOhm 500 V DC between measurement and relay output IEC 60664-1 || > 1 MOhm 500 V DC between supply and measurement IEC 60255-5 || > 500 MOhm 500 V DC between supply and relay output IEC 60664-1 || > 500 MOhm 500 V DC between measurement and relay output IEC 60255-5 || > 1 MOhm 500 V DC between supply and measurement IEC 60664-1
- Operating Rate
- <= 360 operations/hour full load
- Output Contacts
- 1 C/O
- Polarity
- reversible polarity on DC supply
- Response Time
- 15 ms max on crossing the threshold)
- Input Frequency
- 0.0017-20 Hz
- Maximum Switching Voltage
- 250 V AC/DC
- Reset Time
- 50 ms contact S2 in memory mode on time delay || 1 s supply Un in memory mode on time delay
- Input Compatibility
- 3-wire sensor (E1) PNP or NPN, 12 V, 50 mA || NAMUR sensor (E2), 12 V, 1.5 kOhm || voltage input (E1), 0...30 V, 9.5 kOhm >= 4.5 V <= 1 V || volt-free contact input (E1), 12 V, 9.5 kOhm
- [Ui] Rated Insulation Voltage
- 250 V IEC 60664-1
- Supply Voltage Limits
- 20.4-264 V AC/DC
- Nominal Output Current
- 5 A
- Housing Material
- self-extinguishing plastic
- Impulse Duration
- >= 5 ms high state || >= 5 ms low state
- Width
- 35 mm
- Maximum Power Consumption In W
- 3 W DC
- Run-Up Delay At Power-Up
- 0.05 s
- Supply Frequency
- 50/60 Hz +/- 10 %
Hysteresis5-5 % threshold
Measurement Error+/- 0.1 %/°C with temperature variation || < +/- 1 % over the whole range with voltage variation
Status Led1 LED green power ON || 1 LED yellow inhibit || 1 LED yellow relay (R)
Contacts Materialcadmium free
MarkingCE : EMC 89/336/EEC || CE : 73/23/EEC
Operating Positionany position without derating
Threshold Setting10...100 %
Control Typewithout test button
[Us] Rated Supply Voltage11.5...12.5 V
Connections - Terminalsscrew terminals, 1 x 0.5...1 x 4 mm² AWG 20...AWG 11) solid without cable end || screw terminals, 2 x 0.5...2 x 2.5 mm² AWG 20...AWG 14) solid without cable end || screw terminals, 1 x 0.2...1 x 2.5 mm² AWG 24...AWG 12) flexible with cable end || screw terminals, 2 x 0.2...2 x 1.5 mm² AWG 24...AWG 16) flexible with cable end
Overvoltage CategoryIII IEC 60664-1
Mounting Support35 mm symmetrical DIN rail IEC 60715
Mechanical Durability30000000 cycles
Control Circuit Voltage Limits15 % + 10 % Un
Measurement Accuracy+/- 10 % of the full scale value
Tightening Torque0.6-1 N.m IEC 60947-1
Electrical Durability100000 cycles
Repeat Accuracy+/- 0.5 % input and measurement circuit || +/- 0.5 % time delay
Specifications
- Minimum Switching Current
- 10 mA 5 V DC
- Measurement Range
- 0.05...600 s
- Switching Capacity In Va
- 1250 VA
- Utilisation Category
- AC-12 IEC 60947-5-1 || AC-13 IEC 60947-5-1 || AC-14 IEC 60947-5-1 || AC-15 IEC 60947-5-1 || DC-12 IEC 60947-5-1 || DC-13 IEC 60947-5-1 || DC-14 IEC 60947-5-1
- Time Delay Range
- 0.6...60 s adjustable on energisation 0...10 % of the full scale value)
- Time Delay Type
- adjustable 0.6...60 s Ti- inhibition time delay upon startup
- Maximum Power Consumption In Va
- 5 VA AC
Range Of ProductHarmony Control Relays
Measurement Range0.05...0.5 s || 0.5...5 min || 1...10 min || 1...10 s || 0.5...5 s || 0.1...1 s || 0.1...1 min
Product Or Component Typespeed control relay
Relay NameRM35S
Relay Typespeed control relays
Relay Monitored Parametersoverspeed || underspeed
