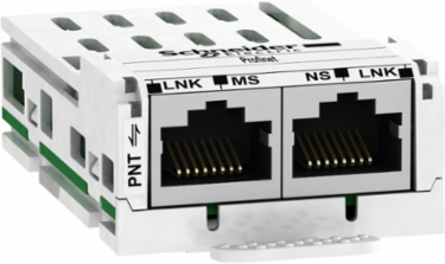

Profinet Communication Module, 100 Mbits, 2 RJ45 Connectors
Schneider Electric

Schneider Electric VW3A3627 Profinet Communication Module, 100 Mbits, 2 RJ45 Connectors

  • MPN: VW3A3627
  • PPN: SCH-VW3A3627
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $560.63

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    This Altivar Profinet communication module has 2 ports with RJ45 connectors. It is compatible with Altivar Process ATV600 (ATV630, ATV650), Altivar Process ATV900 (ATV930, ATV950), Altivar Machine ATV320, Altivar 32 and Altivar Machine ATV340. Removable module allows last minute decisions on drive communication protocol and thus facilitates installation project management.

    Features

    • Featuring native PROFINET functionality operating at a fast 100 Mbits transmission rate, this option card allows systems integrators to map variable speed drives directly into Industrial Ethernet architectures. It ensures rapid deterministic control and real-time parameter streaming, completely bridging the communication gap between Schneider hardware and central controller systems.
    • This versatile, modular card is cross-compatible with a wide range of current Schneider platforms, including Altivar Process (ATV600, ATV900), Altivar Machine (ATV320, ATV340 except Sercos), and legacy Altivar 32 units. This universal utility allows plant maintenance teams to standardize on a single network card across multiple motor control applications, significantly reducing spare part inventory overhead.
    • Outfitted with two integrated Ethernet RJ45 network ports, the card allows you to establish direct line or ring daisy-chain cabling infrastructures from drive to drive. This intelligent design bypasses the need for costly, space-consuming external unmanaged Ethernet switches inside your control enclosures, dropping hardware and installation costs.
    • Conforming fully to the industry-standard PROFIdrive bus profile and IEC 61800-7-201 parameters, the module ensures uniform operating profiles for velocity, torque, and positioning loops. This standardization dramatically accelerates commissioning times for software engineers, eliminating the tedious work of designing custom driver interfaces for every new piece of equipment.
    • Outfitted with four dedicated diagnostic LEDs for Module Status (MS), Network Status (NS), and dual Transmit/Receive channels (TX/RX), this interface card provides real-time, physical feedback on link health. Maintenance personnel can isolate communication drops, duplicate IP addresses, or cabling faults at a glance without having to open a remote programming laptop.

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of Origin
    China, France, Indonesia, Sweden, United States

    Communications & Management Attributes

    Communication Port Protocol
    Link Layer Discovery Protocol, PROFINET

    Important Information Attributes

    Display Type
    1 LED MS (Module Status), 1 LED NS (Network Status), 1 LED TX/RX (Transmit/Receive port 1), 1 LED TX/RX (Transmit/Receive port 2)
    Carbon Footprint Of The End-of-life Phase [C1 To C4]
    0 kg CO2 eq., 0.0284734343
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]
    2 kg CO2 eq., 1.7826438475
    Local Data Status
    Publishable
    Return Indicator
    Y
    Stock Policy
    2
    Serviceability
    No
    Weee Applicability
    Component
    Weee Exclusion Rationale
    Component not in scope – non independent function
    Eoli Availability Display
    No need of specific recycling operations
    Reach Full Compliance Status Id
    CONTAINS_SVHC
    Rohs Eur In Scope
    No
    Rohs Eur Conformity Date
    1851
    China Rohs In Scope
    Yes
    With Recycled Cardboard
    Yes
    Product Contributes To Saved And Avoided Emissions
    No
    Persona Type Names
    End User
    Tier
    1
    Function Option
    Advanced
    Market Segmentation
    Industrial
    Bus Profile
    PROFIdrive
    Product Availability
    Stock - Normally stocked in distribution facility
    Range Of Product
    Altivar
    Software Version
    EIME v5.8.1
    Total Lifecycle Carbon Footprint
    2 kg CO2 eq.
    Pep Code
    ENVPEP2010006EN
    Pep Verification Date
    2020-12-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Data Source
    extrapolated product
    Functional-unit Quantity
    1
    Reference Lifetime In Y
    20
    Energy Model - Manufacturing [A1-a3]
    Energy model used: Indonesia
    Energy Model - Use [B6]
    Electricity Mix; AC; < 1kV; EU-27
    Certificate Agency
    IEC 61800-7-201 (CiA 402)
    Package Weight(Lbs)
    63.000 g
    Warranty (In Months)
    18
    Carbon Footprint Of The Distribution Phase [A4]0.008128515, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0.0022788285, 0 kg CO2 eq.
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]0 kg CO2 eq., 0.00059042
    Local Publishable Date2026-01-12
    Stocking FlagN
    Device TypeVariable speed drive - VSD option & accessory
    TraceabilityNo
    Weee ScopeOut
    Scope PerimeterAt least in Europe
    Reach Full Compliance StatusReference contains Substances of Very High Concern above the threshold
    Reach Compliance DirectiveReference contains Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Label1
    Without Single Use PlasticNo
    Persona Type IdsEU
    Tier Id1
    Function Option IdADVANCED
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Electrical Connection2 connectors RJ45, Ethernet
    Product Or Component Typecommunication module
    ReturnabilityYes
    Sustainable PackagingNo
    Transmission Rate100 Mbits
    Database Version2016-11
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo link the Altivar speed variator to the network, with 2 connectors RJ45, Ethernet IP/Modbus TCP during 20 years. The usage profile taken into account is 100% uptime in use phase.
    Functional-unit UnitUnit
    Energy Consumption On Product Lifetime In Kwh0.001
    Energy Model - Installation [A5]Electricity Mix; AC; < 1kV; EU-27
    Energy Model - End Of Life [C1-c4]Electricity Mix; AC; < 1kV; EU-27
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8517620090

    Environment Attributes Main

    Take Back
    No
    China Rohs Regulation
    X
    Mercury Free
    Yes
    Environmental Disclosure
    ENVPEP2010006EN
    Packaging Made With Recycled Cardboard
    Yes
    Reach Regulation
    Reference contains Substances of Very High Concern above the threshold
    Pep Verification Date
    2020-12-01
    Psr Version
    PSR-0005-ed2-EN-2016 03 29
    Recycled Metal Content At Cr Level0 %
    Toxic Heavy Metal FreeYes
    Carbon Footprint1.8221150452
    Eu Rohs DirectiveCompliant
    Packaging Without Single Use PlasticNo
    Pep CodeENVPEP2010006EN
    Pcr VersionPCR-ed3-EN-2015 04 02
    Type Of Verification For The PepIndependent internal review

    General Attributes

    Product Or Component Type
    communication module
    Range Of ProductAltivar

    ETIM

    ETIM 8
    EC002025
    ETIM 9EC002025
