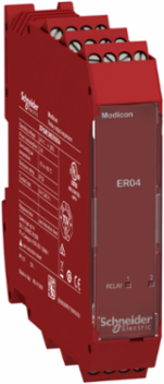

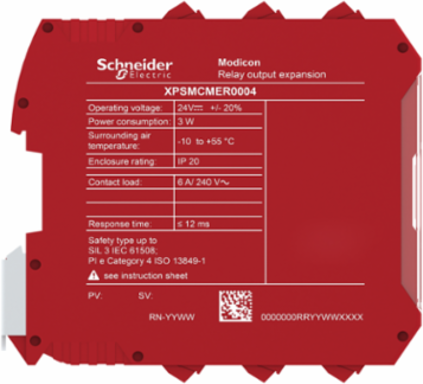

Schneider Electric XPSMCMER0004 Modicon MCM Expansion Module, 4 Relay Outputs, IP20, 24V DC
- MPN: XPSMCMER0004
- PPN: SCH-XPSMCMER0004
CAD
$604.68
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
Modicon MCM Expansion Module, 4 Relay Outputs, IP20, 24V DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy
Depth114.5 mm
Complementary Attributes
- Integrated Connection Type
- not connected to backplane expansion bus
- Maximum Switching Current
- 6 A
- Minimum Switching Current
- 20 mA
Maximum Power Dissipation In W3 W
Maximum Switching Voltage400 V AC250 V DC
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
- Safety Level
- can reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
- Certificate Agency
- RCM, cULus, TÜV
- Carbon Footprint Of The Distribution Phase [A4]
- 0.0391322836857251, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.004006994556426463
- Carbon Footprint Of The Use Phase [B2 B3 B4 B6]
- 112 kg CO2 eq., 111.50379352630267
- Local Publishable Date
- 2026-04-30
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Device Short Name
- XPSMCM
- Electrical Durability
- 20000000 cycles
- Function Of Module
- monitoring safety actuators relay output
- Mechanical Durability
- 20000000 cycles
- Number Of Terminal Blocks
- 6
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Range Of Product
- Preventa Safety automation
- Safety Reliability Data
- B10d = 300000 AC-15 230 V, , <3 A ISO 13849-1B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
- Shock Resistance
- 10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
- Sustainable Packaging
- No
- Switching Voltage
- 10 V DC
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime In Kwh
- 262.8
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
- Customs Code
- 8538908180
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address, 2 LEDs green/red RELAY K1...K2 relay contact
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5102488403826021, 0.5 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.293673359082607
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1847
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating3.5 A, slow-blow
Electrical Connectionscrew terminal
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Product Or Component Typesafe relay output module
Quantity Per Set1
ReturnabilityNo
Service Life20 year(s)
Software Versionv6.2.4
Switching Time12 ms
Total Lifecycle Carbon Footprint122 kg CO2 eq.
Pep CodeENVPEP1406025_V3
Pep Verification Date2026-01-15
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential In %34
Width Nominal22.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)311.000 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1406025_V3
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1406025_V3
- Pcr Version
- PCR-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint122.35085500401003
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2026-01-15
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- safe relay output module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Number Of Outputs
- 4 relay
