Schneider Electric

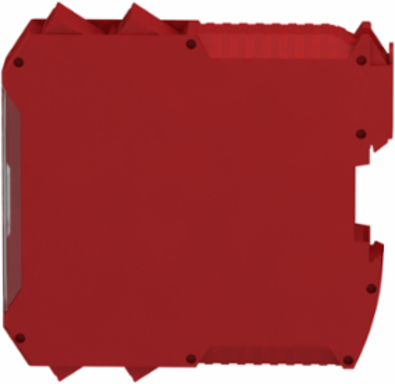

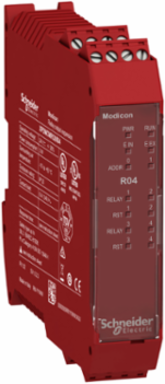

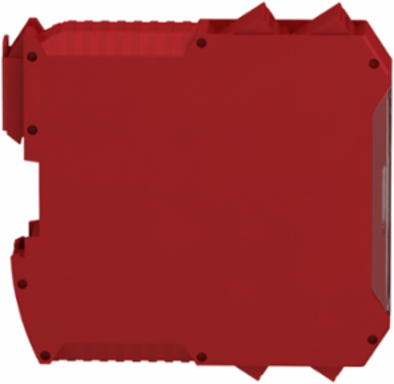

Schneider Electric XPSMCMRO0004 Modicon MCM Relay Output Module, 4 Relay Outputs, 24V DC, IP20

  • MPN: XPSMCMRO0004
  • PPN: SCH-XPSMCMRO0004
  • If you can't find the product or are unsure which one you need, please use the Product Selector tool below

    • CAD

    $937.48

    / EA

    Available to Order

    Lead times may vary. For an accurate estimate please contact us.

    Available To Ship Immediately:0

    Loading dialog...

    Looking to buy a large quantity?

    To View Branch Inventory And Your Custom Pricing

    Spec sheet

    Description

    Modicon MCM Relay Output Module, 4 Relay Outputs, 24V DC, IP20

    Documentation & Downloads

    Specifications

    Key Specifications

    Country of OriginBrazil, France, Italy, United States
    Depth114.5 mm

    Complementary Attributes

    Integrated Connection Typebackplane expansion bus
    Maximum Switching Current6 A
    Minimum Switching Current20 mA
    Maximum Power Dissipation In W3 W
    Maximum Switching Voltage400 V AC250 V DC

    Important Information Attributes

    Persona Type IdsEU, OM, OM8
    Cable Cross Section0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, without bezel0.2-2.5 mm² - 24 AWG...14 AWG solid without cable end, 0.2-1.5 mm² - 24 AWG...16 AWG flexible without cable end, 0.2-2.5 mm² - 24 AWG...14 AWG flexible without cable end, 0.25-1 mm² - 23 AWG...18 AWG flexible with cable end, without bezel0.25-2.5 mm² - 23 AWG...14 AWG flexible with cable end, with bezel, 0.5-1.5 mm² - 20 AWG...16 AWG flexible with cable end, with double bezel0.2-1 mm² - 24 AWG...18 AWG solid without cable end
    Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1can reach SIL 3 IEC 61508SILCL 3 IEC 62061
    Certificate AgencyTÜV, RCM, cULus
    Carbon Footprint Of The Distribution Phase [A4]0.0391322836857251, 0 kg CO2 eq.
    Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.004006994556426463
    Carbon Footprint Of The Use Phase [B2 B3 B4 B6]112 kg CO2 eq., 111.50379352630267
    Local Publishable Date2026-04-30
    Stocking FlagN
    Device TypePLC System - PLC Component
    TraceabilityYes
    Average Life Duration20 year(s)
    Weee Product Category5
    Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
    Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
    Rohs Eur StatusCompliant
    Rohs Eur Full Compliance StatusCompliant
    China Rohs Labele
    Without Single Use PlasticYes
    Tier Id1
    Function Option IdSTANDARD
    Market Segmentation IdINDUSTRIAL
    Product Kit IdentifierN
    Device Short NameXPSMCM
    Electrical Durability20000000 cycles
    Function Of Modulemonitoring safety actuators relay output
    Mechanical Durability20000000 cycles
    Number Of Terminal Blocks4
    Product AvailabilityStock - Normally stocked in distribution facility
    Quality LabelsCE
    Range Of ProductPreventa Safety automation
    Safety Reliability DataB10d = 300000 AC-15 230 V, , <3 A ISO 13849-1B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
    Shock Resistance10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
    Sustainable PackagingNo
    Switching Voltage10 V DC
    Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
    Database Version2024-01
    Pcr VersionPCR-ed4-FR-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Functional-unit DescriptionTo monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.
    Functional-unit Unitunit
    Energy Consumption On Product Lifetime In Kwh262.8
    Energy Model - Installation [A5]No energy used
    Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
    Height Nominal99 mm
    [Uimp] Rated Impulse Withstand Voltage4 kV IEC 61800-5-1
    Nbr. Of Units In Pkg.1
    Take-backNo
    Customs Code8538908180
    Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
    Local Signalling1 LED green PWR power ON1 LED green RUN RUN (status), 1 LED red E IN internal error1 LED red E EX external error2 LEDs orange ADDR node address4 LEDs green/red RELAY K1...K4 relay contact, 4 LEDs yellow RST reset
    Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
    Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
    Carbon Footprint Of The End-of-life Phase [C1 To C4]0.5102488403826021, 0.5 kg CO2 eq.
    Carbon Footprint Of The Manufacturing Phase [A1 To A3]10 kg CO2 eq., 10.293673359082607
    Local Data StatusPublishable
    Return IndicatorY
    Stock Policy2
    ServiceabilityNo
    Field Service DivisionIDIBS
    Weee ScopeIn
    Scope PerimeterAt least in Europe
    Reach Full Compliance Status IdNOT_CONTAINING_SVHC
    Rohs Eur In ScopeNo
    Rohs Eur Conformity Date1847
    China Rohs In ScopeYes
    With Recycled CardboardNo
    Product Contributes To Saved And Avoided EmissionsNo
    Tier1
    Function OptionStandard
    Market SegmentationIndustrial
    Associated Fuse Rating3.5 A, slow-blow
    Electrical Connectionscrew terminal
    Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
    Insulation250 V AC between power supply and housing IEC 61800-5-1
    Mounting Supportomega 35 mm DIN rail EN 50022
    Overvoltage CategoryII
    Product Or Component Typesafe relay output module
    Quantity Per Set1
    ReturnabilityYes
    Service Life20 year(s)
    Software Versionv6.2.4
    Switching Time12 ms
    Total Lifecycle Carbon Footprint123 kg CO2 eq.
    Pep CodeENVPEP1406025_V3
    Pep Verification Date2026-01-15
    Psr VersionPSR-0005-ed3-2023 06 06
    Data Sourceextrapolated product
    Functional-unit Quantity1
    Reference Lifetime In Y10
    Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
    Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
    Recyclability Potential In %34
    Width Nominal22.5 mm
    [Us] Rated Supply Voltage24 V - 20...20 % DC
    Package Weight(Lbs)296.000 g
    Warranty (In Months)18

    Environment Attributes Main

    Ambient Air Temperature For Operation-10-55 °C, -10-55 °C
    Take BackNo
    Recycled Metal Content At Cr Level0 %
    Mercury FreeYes
    Environmental DisclosureENVPEP1406025_V3
    Ip Degree Of ProtectionIP20
    Packaging Without Single Use PlasticYes
    Reach RegulationFree of Substances of Very High Concern above the threshold
    Pep CodeENVPEP1406025_V3
    Pcr VersionPCR-ed4-FR-2021 09 06
    Type Of Verification For The PepIndependent internal review
    Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
    Reach Free ShvcYes
    China Rohs RegulationX
    Carbon Footprint123.43556115178076
    Eu Rohs DirectiveCompliant
    Packaging Made With Recycled CardboardNo
    Reach Free Of SvhcYes
    Relative Humidity10-95 %
    Pep Verification Date2026-01-15
    Psr VersionPSR-0005-ed3-2023 06 06

    General Attributes

    Product Or Component Typesafe relay output module
    Range Of ProductPreventa Safety automation

    ETIM

    ETIM 8EC001449
    ETIM 9EC001449

    Output Attributes

    Discrete Output Number8-8 solid state 125 mA diagnostics)
    Output Typerelay, 4 NO, volt-free
    Number Of Outputs4 relay
    Modicon MCM Relay Output Module, 4 Relay Outputs, 24V DC, IP20
    Modicon MCM Relay Output Module, 4 Relay Outputs, 24V DC, IP20
