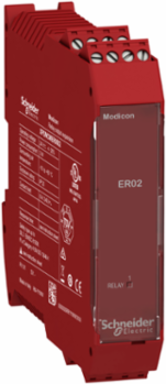

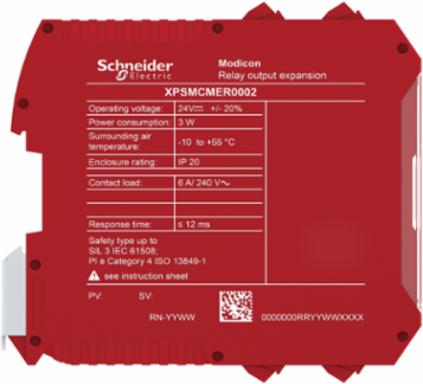

Schneider Electric XPSMCMER0002 Safe Relay Output Module, 2NO + 1NC, 24V DC, IP20
- MPN: XPSMCMER0002
- PPN: SCH-XPSMCMER0002
CAD
$437.49
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Safe Relay Output Module, 2NO + 1NC, 24V DC, IP20
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy
Depth114.5 mm
Complementary Attributes
- Maximum Switching Voltage
- 400 V AC, 250 V DC
- Maximum Power Dissipation In W
- 3 W
- Minimum Switching Current
- 20 mA
Integrated Connection Typenot connected to backplane expansion bus
Maximum Switching Current6 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end
- Local Signalling
- 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 1 LED green/red RELAY K1 relay contact
- Safety Reliability Data
- B10d = 300000 AC-15 230 V, , <3 A ISO 13849-1, B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1, B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
- Certificate Agency
- TÜV, cULus, RCM
- Carbon Footprint Of The Distribution Phase [A4]
- 0.03261023640477092, 0 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.0033391621303553855
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 112 kg CO2 eq., 111.50379352630267
- Local Publishable Date
- 2026-04-30
- Stocking Flag
- Y
- Device Type
- PLC System - PLC Component
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Reach Full Compliance Status
- Free of Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Free of Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant
- Rohs Eur Full Compliance Status
- Compliant
- China Rohs Label
- e
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Market Segmentation Id
- INDUSTRIAL
- Product Kit Identifier
- N
- Device Short Name
- XPSMCM
- Electrical Durability
- 20000000 cycles
- Insulation
- 250 V AC between power supply and housing IEC 61800-5-1
- Mounting Support
- omega 35 mm DIN rail EN 50022
- Overvoltage Category
- II
- Product Or Component Type
- safe relay output module
- Quantity Per Set
- 1
- Returnability
- No
- Shock Resistance
- 10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
- Sustainable Packaging
- No
- Switching Voltage
- 10 V DC
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Database Version
- 2024-01
- Pcr Version
- PCR-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
- Functional-unit Description
- To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.To monitor with multiple safety means the presence of residual and hazardous voltage and short-circuits between each input and earth and between 32 inputs in an industrial environment at 100% of the time for 10 years.
- Functional-unit Unit
- unit
- Energy Consumption On Product Lifetime, In Kwh
- 262.8
- Energy Model - Installation [A5]
- No energy used
- Energy Model - End Of Life [C1-c4]
- Global, European and French datasets are used.
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Carbon Footprint Of The End-of-life Phase [C1 To C4]0.4252073669855017, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]9 kg CO2 eq., 8.57806113256884
Local Data StatusPublishable
Return IndicatorN
Stock Policy2
ServiceabilityNo
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
Reach Full Compliance Status IdNOT_CONTAINING_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1847
China Rohs In ScopeYes
With Recycled CardboardNo
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Market SegmentationIndustrial
Associated Fuse Rating3.5 A, slow-blow
Electrical Connectionscrew terminal
Function Of Modulemonitoring safety actuators relay output
Mechanical Durability20000000 cycles
Number Of Terminal Blocks4
Product AvailabilityNon-Stock - Not normally stocked in distribution facility
Quality LabelsCE
Range Of ProductPreventa Safety automation
Service Life20 year(s)
Software Versionv6.2.4
Switching Time12 ms
Total Lifecycle Carbon Footprint122 kg CO2 eq.
Pep CodeENVPEP1406025_V3
Pep Verification Date2026-01-15
Psr VersionPSR-0005-ed3-2023 06 06
Data Sourceextrapolated product
Functional-unit Quantity1
Reference Lifetime, In Y10
Energy Model - Manufacturing [A1-a3]Electricity Mix; Low voltage; 2020; France, FR
Energy Model - Use [B6]Electricity Mix; Low voltage; 2020; Europe, EU-27
Recyclability Potential, In %34
Width Nominal22.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)236.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Environmental Disclosure
- ENVPEP1406025_V3
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
- Pep Code
- ENVPEP1406025_V3
- Pcr Version
- PCR-ed4-FR-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Carbon Footprint122.35085500401003
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
Pep Verification Date2026-01-15
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Product Or Component Type
- safe relay output module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Number Of Outputs
- 2 relay
Output Typerelay, 2 NO + 1 NC, volt-free
