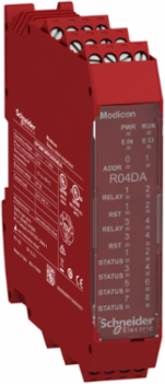

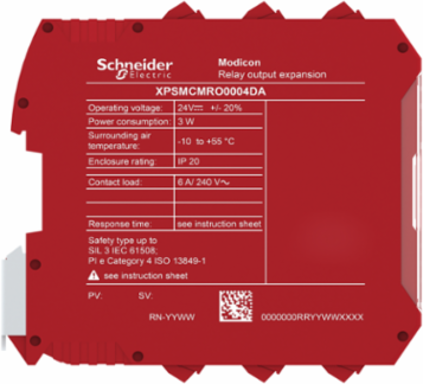

Schneider Electric XPSMCMRO0004DA Schneider Electric XPSMCMRO0004 Modicon MCM Safety Relay Output Module, 4 Outputs, IP20, 24V DC
- MPN: XPSMCMRO0004DA
- PPN: SCH-XPSMCMRO0004DA
CAD
$1143.72
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Schneider Electric XPSMCMRO0004 Modicon MCM Safety Relay Output Module, 4 Outputs, IP20, 24V DC
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, France, Italy
Depth114.5 mm
Complementary Attributes
- Maximum Switching Voltage
- 400 V AC, 250 V DC
- Maximum Power Dissipation In W
- 3 W
- Minimum Switching Current
- 20 mA
Integrated Connection Typebackplane expansion bus
Maximum Switching Current6 A
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Cable Cross Section
- 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, without bezel, 0.2-2.5 mm² - AWG 24...AWG 14 solid without cable end0.2-1.5 mm² - AWG 24...AWG 16 flexible without cable end, 0.2-2.5 mm² - AWG 24...AWG 14 flexible without cable end, 0.25-1 mm² - AWG 23...AWG 18 flexible with cable end, without bezel, 0.25-2.5 mm² - AWG 23...AWG 14 flexible with cable end, with bezel, 0.5-1.5 mm² - AWG 20...AWG 16 flexible with cable end, with double bezel, 0.2-1 mm² - AWG 24...AWG 18 solid without cable end
- Local Signalling
- 1 LED green PWR power ON, 1 LED green RUN RUN (status), 1 LED red E IN internal error, 1 LED red E EX external error, 2 LEDs orange ADDR node address, 4 LEDs green/red RELAY K1...K4 relay contact, 4 LEDs yellow RST requires reset, 8 LEDs yellow STATUS diagnostics output
- Safety Reliability Data
- B10d = 300000 AC-15 230 V, , <3 A ISO 13849-1, B10d = 750000 AC-15 230 V, , <1 A ISO 13849-1, B10d = 10000000 DC-13 24 V, , <2 A ISO 13849-1
- Certificate Agency
- cULus, TÜV, RCM
- Local Data Status
- Publishable
- Return Indicator
- N
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- IDIBS
- Weee Scope
- In
- Scope Perimeter
- At least in Europe
- Reach Full Compliance Status Id
- NOT_CONTAINING_SVHC
- Rohs Eur In Scope
- No
- Rohs Eur Conformity Date
- 1847
- China Rohs In Scope
- Yes
- With Recycled Cardboard
- No
- Product Contributes To Saved And Avoided Emissions
- No
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Associated Fuse Rating
- 3.5 A, slow-blow
- Electrical Connection
- screw terminal
- Function Of Module
- monitoring safety actuators relay output
- Mechanical Durability
- 20000000 cycles
- Number Of Terminal Blocks
- 6
- Product Availability
- Non-Stock - Not normally stocked in distribution facility
- Quality Labels
- CE
- Range Of Product
- Preventa Safety automation
- Service Life
- 20 year(s)
- Sustainable Packaging
- No
- Switching Voltage
- 10 V DC
- Height Nominal
- 99 mm
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 61800-5-1
- Nbr. Of Units In Pkg.
- 1
- Take-back
- No
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Electromagnetic Compatibilityelectrostatic discharge immunity test - test level: 6 kV (on contact) conforming to IEC 61000-4-2, electrostatic discharge immunity test - test level: 20 kV (on air) conforming to IEC 61000-4-2, susceptibility to electromagnetic fields - test level: 10 V/m (80...1000 MHz) conforming to IEC 61000-4-3, susceptibility to electromagnetic fields - test level: 30 V/m (1.4 GHz...2 GHz) conforming to IEC 61000-4-3
Safety Levelcan reach category 4 ISO 13849-1, can reach PL = e ISO 13849-1, can reach SIL 3 IEC 61508, SILCL 3 IEC 62061
Vibration Resistance+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1+/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1, +/-0.35 mm (f= 10-55 Hz) conforming to IEC 61496-1
Connections - Terminals2 captive screw clamp terminals, removable terminal block, 1 captive screw clamp terminals, removable terminal block
Local Publishable Date2025-11-25
Stocking FlagY
Device TypePLC System - PLC Component
TraceabilityYes
Average Life Duration20 year(s)
Weee Product Category5
Reach Full Compliance StatusFree of Substances of Very High Concern above the threshold
Reach Compliance DirectiveFree of Substances of Very High Concern above the threshold
Rohs Eur StatusCompliant
Rohs Eur Full Compliance StatusCompliant
China Rohs Labele
Without Single Use PlasticYes
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Device Short NameXPSMCM
Electrical Durability20000000 cycles
Insulation250 V AC between power supply and housing IEC 61800-5-1
Mounting Supportomega 35 mm DIN rail EN 50022
Overvoltage CategoryII
Product Or Component Typesafe relay output module
Quantity Per Set1
ReturnabilityNo
Shock Resistance10 gn 16 ms 1000 shocks on each axis)IEC 61496-1
Switching Time12 ms
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Width Nominal22.5 mm
[Us] Rated Supply Voltage24 V - 20...20 % DC
Package Weight(Lbs)308.0 g
Warranty (In Months)18
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C, -10-55 °C
- Take Back
- No
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Ip Degree Of Protection
- IP20
- Packaging Without Single Use Plastic
- Yes
- Reach Regulation
- Free of Substances of Very High Concern above the threshold
Ambient Air Temperature For Storage-20-85 °C, -20-85 °C
Reach Free ShvcYes
China Rohs RegulationX
Eu Rohs DirectiveCompliant
Packaging Made With Recycled CardboardNo
Reach Free Of SvhcYes
Relative Humidity10-95 %
General Attributes
- Product Or Component Type
- safe relay output module
Range Of ProductPreventa Safety automation
ETIM
- ETIM 8
- EC001449
ETIM 9EC001449
Output Attributes
- Discrete Output Number
- 8-8 solid state 125 mA diagnostics)
- Output Type
- relay, 4 NO, volt-free
Number Of Outputs4 relay
