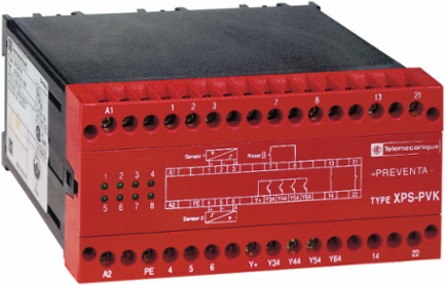

Telemecanique Sensors XPSPVK3784 Double-Bodied Solenoid Valve Module, 230 V AC, 0.9 kg, IP40
- MPN: XPSPVK3784
- PPN: SCH-XPSPVK3784
CAD
$1696.83
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Double-Bodied Solenoid Valve Module, 230 V AC, 0.9 kg, IP40
Documentation & Downloads
Specifications
Key Specifications
| [Us] Rated Supply Voltage | 230 V AC - 15...10 % |
|---|---|
| Product Or Component Type | Preventa safety module |
| Safety Module Name | XPSPVK |
| Output Type | relay, 1 NO transfer function + 1 NC feedback loop, volt-free |
| Safety Reliability Data | MTTFd = 90.2 years ISO 13849-1 || DC = 0...99 % ISO 13849-1 || PFHd = 1.25E-8 1/h IEC 62061 |
| Safety Level | can reach PL e/category 4 ISO 13849-1 || can reach SILCL 3 IEC 62061 |
| Range Of Product | Preventa Safety automation |
|---|---|
| Enclosure Type | removable |
| Number Of Additional Circuits | 4 solid state outputs |
| Safety Module Application | for dynamic monitoring of double-bodied solenoid valves |
| Function Of Module | dynamic monitoring of double-bodied solenoid valves |
Complementary
| Height | 73 mm |
|---|---|
| Minimum Output Voltage | 17 V relay output |
| [Ith] Conventional Free Air Thermal Current | 2.5 A |
| [Uimp] Rated Impulse Withstand Voltage | 4 kV III IEC 60647-5-1, DIN VDE 0110 part 1 |
| Connections - Terminals | captive screw clamp terminals, 2 x 0.5...2 x 1.5 mm² with cable end || captive screw clamp terminals, 2 x 2.5 mm² without cable end |
| Power Consumption In Va | 16 VA |
| Number Of Terminal Blocks | 32 |
| Width | 152 mm |
| Breaking Capacity | 10 mA 48 V solid state output circuit || 20 mA 24 V solid state output circuit || 1.5 A 24 V DC-13)50 ms relay output |
| Maximum Response Time On Input Open | 40 ms |
| Mounting Support | 35 mm symmetrical DIN rail |
|---|---|
| Minimum Output Current | 10 mA relay output |
| Associated Fuse Rating | 4 A gG relay output EN/IEC 60947-5-1, DIN VDE 0660 part 200 |
| Net Weight | 0.9 kg |
| [Ui] Rated Insulation Voltage | 300 V 2)IEC 60647-5-1, DIN VDE 0110 part 1 |
| Local Signalling | 8 LEDs |
| Enclosure Material | polycarbonate |
| Depth | 118 mm |
| Supply Frequency | 50/60 Hz |
| Breaking Capacity | 180 VA holding AC-15 C300 relay output || 1800 VA inrush AC-15 C300 relay output |
Environment
| Product Certifications | UL || CSA || TÜV |
|---|---|
| Standards | IEC 692 || IEC 60204-1 || IEC 60947-5-1 |
| Ambient Air Temperature For Storage | -25-85 °C |
| Ambient Air Temperature For Operation | -10-55 °C |
|---|---|
| Ip Degree Of Protection | IP10 terminals)IEC 60529 || IP40 enclosure)IEC 60529 |
Contractual warranty
| Warranty | 18 months |
|---|
Offer Sustainability
| Rohs Exemption Information | Yes |
|---|---|
| Environmental Disclosure | ENVPEP1408008EN |
| Pvc Free | Yes |
| Weee | The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins |
| Circularity Profile | ENVEOLI1408008EN |
| Mercury Free | Yes |
|---|---|
| Sustainable Offer Status | Green Premium product |
| Reach Regulation | Reference contains Substances of Very High Concern above the threshold |
| China Rohs Regulation | X |
| Eu Rohs Directive | Pro-active compliance (Product out of EU RoHS legal scope) |
