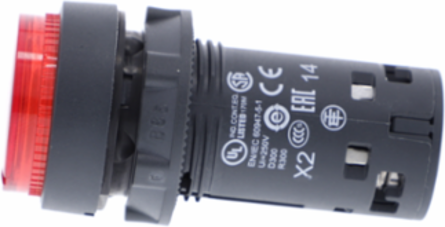

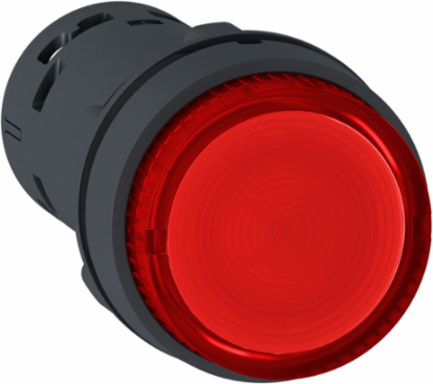

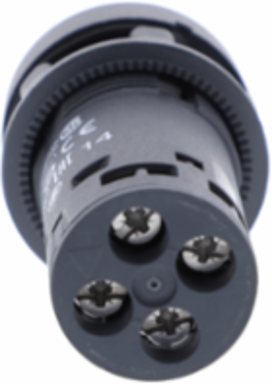

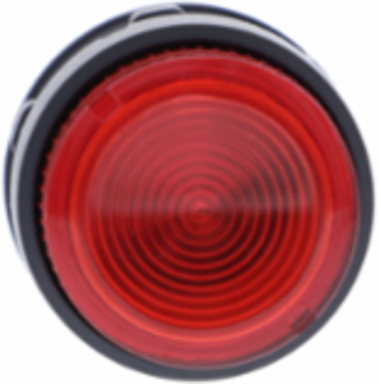

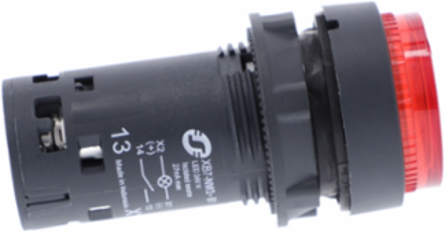

Schneider Electric XB7NW34B1 Monolithic Illuminated Push Button, 22mm, Red, 24V AC/DC, IP65
- MPN: XB7NW34B1
- PPN: SCH-XB7NW34B1
CAD
$177.89
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
This Harmony XB7, illuminated projecting monolithic red push button operates with a spring return mechanism, is supplied with 24V AC/DC, uses an integral LED and screw clamp terminals. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance due to clear colors and illumination via integral LED, minimizing errors in machine control and enabling complex machine statuses to be read at a glance. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP65, making it ideal for operation in harsh environments. It has a double insulated plastic bezel. Its wide range of operating temperatures from -25°C to 70°C allows versatility in usage of product.
Documentation & Downloads
Specifications
Key Specifications
- Range Of Product
- Harmony XB7
- Mounting Diameter
- 22 mm
- Product Or Component Type
- illuminated push-button
- Ip Degree Of Protection
- IP20 IEC 60529 rear face) || IP65 IEC 60529 front face)
- Connections - Terminals
- screw clamp terminals, <= 2 x 1.5 mm² with cable end IEC 60947-1 || screw clamp terminals, 1 x 0.34...2 x 2.5 mm² without cable end IEC 60947-1
- Sale Per Indivisible Quantity
- 10
- Device Short Name
- XB7
- Bulb Base
- integral LED
Light SourceLED
Type Of Operatorspring return
Shape Of Signaling Unit Headround
Device Presentationmonolithic product
Contacts Type And Composition1 NO
Operator Profilered projecting, unmarked
[Us] Rated Supply Voltage24 V AC/DC
Complementary
- Terminals Description Iso N°1
- (13-14)NO
- Fixing Center
- >= 30 x 40 mm support panel) metal 1-6 mm || >= 30 x 40 mm support panel) plastic 2-6 mm
- Fixing Mode
- fixing nut beneath head 2-2.4 N.m
- [Uimp] Rated Impulse Withstand Voltage
- 4 kV IEC 60947-1
- Current Consumption
- 18...27 mA
- Service Life
- 70000 h at rated voltage and 25 °C
- Signalling Type
- steady
- Contact Operation
- slow-break
- Mechanical Durability
- 300000 cycles
- Tightening Torque
- 0.8-1.2 N.m IEC 60947-1
- Cad Overall Depth
- 57.5 mm
- Device Mounting
- fixing hole 22.5 mm 22.3 +0.4/0 IEC 60947-1
Short-Circuit Protection4 A cartridge fuse gG IEC 60947-5-1
Positive Openingwith (only NO)
Net Weight0.023 kg
Cad Overall Height29 mm
Electrical Durability1000000 cycles, DC-13, 0.3 A 24 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.03 A 230 V 216000 cyc/mn 0.5 IEC 60947-5-1 appendix C || 1000000 cycles, AC-15, 0.09 A 240 V 108000 cyc/mn 0.5 IEC 60947-5-1 appendix C
[Ui] Rated Insulation Voltage250 V 3)IEC 60947-1
[Ie] Rated Operational Current0.1 A 250 V, DC-13, R300 IEC 60947-5-1 || 0.22 A 125 V, DC-13, R300 IEC 60947-5-1 || 0.3 A 240 V, AC-14, D300 IEC 60947-5-1 || 0.6 A 120 V, AC-14, D300 IEC 60947-5-1
Supply Voltage Limits19.2-30 V DC || 21.6-26.4 V AC
Electrical Reliabilityλ <= 10exp(-6) 17 V 5 mA IEC 60947-5-4
Cad Overall Width29 mm
Shape Of Screw Headcross JIS No 1 || cross Philips no 1 || cross pozidriv No 1 || slotted flat Ø 4 mm || slotted flat Ø 5.5 mm
Environment
- Product Certifications
- GOST || CCC
- Standards
- JIS C8201-5-1 || UL 508 || IEC 60947-5-1 || CSA C22.2 No 14 || IEC 60947-1 || JIS C8201-1
- Vibration Resistance
- 5 gn 2-500 Hz)IEC 60068-2-6
- Nema Degree Of Protection
- NEMA 12 UL 50 E
- Protective Treatment
- TH
Ambient Air Temperature For Operation-25-70 °C
Shock Resistance50 gn 11 ms) half sine wave acceleration IEC 60068-2-27 || 30 gn 18 ms) half sine wave acceleration
Ambient Air Temperature For Storage-40-70 °C
Electrical Shock Protection Classclass II IEC 61140
Electromagnetic Emissionclass B IEC 55011
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP1805012EN
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- X
- Eu Rohs Directive
- Pro-active compliance (Product out of EU RoHS legal scope)
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI1805012EN
