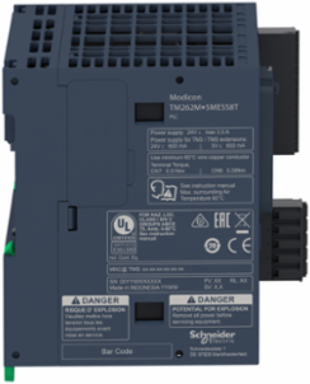

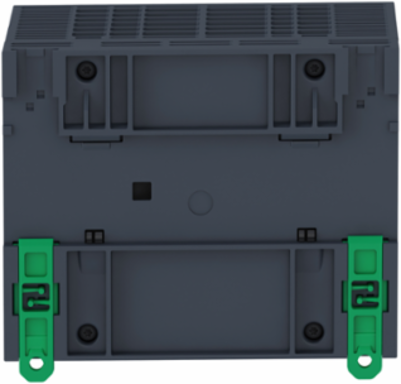

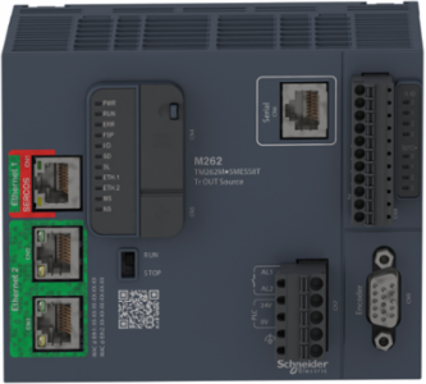

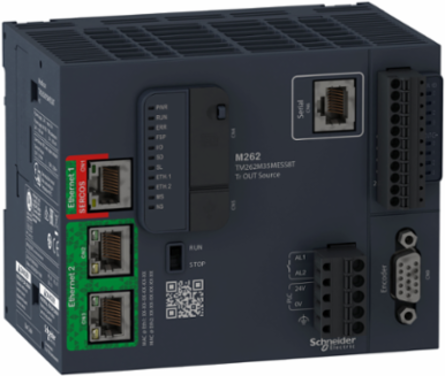

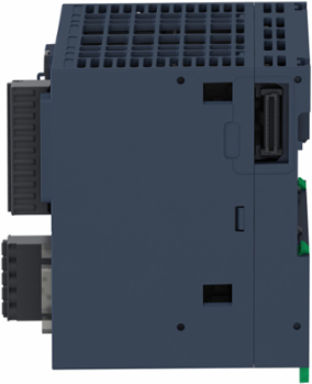

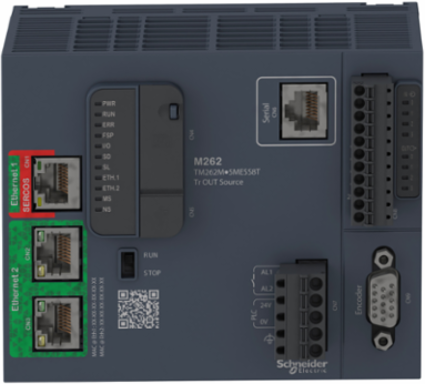

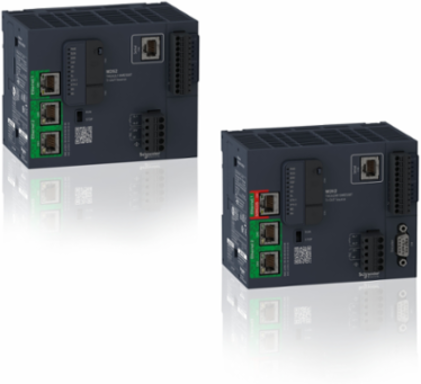

Schneider Electric TM262M35MESS8T Modicon M262 Motion Controller, 3ns/Instruction, 24 Axes, 125mm Width

MPN: TM262M35MESS8T
PPN: SCH-TM262M35MESS8T

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading dialog...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

Modicon M262 Motion Controller, 3ns/Instruction, 24 Axes, 125mm Width

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	Brazil, France, Indonesia, Mexico, Singapore, United States

Depth	90 mm

Communications & Management Attributes

Communication Port Protocol	Modbus SL IO scanner, ASCII modem management, EtherNet/IP adapter, EtherNet/IP scannerModbus TCP client/server, Modbus TCP IO scanner, Modbus TCP NVL, Ethernet RSTP, Modbus SL client/server, Modbus SL modem management, Machine ExpertASCII managerSercos III master

Communication Service	MQTTs, OPC UA server (Encrypt), OPC UA client (Encrypt), HTTPs Methods (API), web server, web visu, TLS 1.2, TLS 1.3, SNTP, NTP client/server, FTP client/server, FTPs server, SQL client (remote access), DHCP client, DHCP server, DNS client, POP3s client, SMTP client, SNMP client/server

Complementary Attributes

Integrated Connection Type	Ethernet/Sercos 1 RJ45 10/100BASE-TEthernet 2 2 RJ45 100/1000BASE-Tserial link RJ45 RS232/RS485, 1 encoder female SUB-D 15 RS422/SSI, Smart Communication Bus, TM3 IO bus, USB type mini B
Maximum Number Of Connected Devices	EtherNet/IP: 64, Modbus TCP: 64Modbus TCP/EtherNet/IP: 128
Maximum Leakage Current	10 µA output
Maximum Tungsten Load	<1.5 W<1.5 W

Maximum Cable Distance Between Devices	shielded cable <3 m fast input, shielded cable <3 m fast output, unshielded cable <50 m input, unshielded cable <50 m outputshielded cable <30 m RS485 linkshielded cable <15 m RS232
Maximum Current Per Output Common	0.5 A Q0...Q3 fast output
Maximum Output Frequency	300 kHz

Important Information Attributes

Persona Type Ids	EU, OM, OM8
Application Structure	8 event tasks, 4 cyclic master tasks, 3 cyclic master tasks + 1 freewheeling task, 8 external event tasks
Configurable Filtering Time	0.001 ms fast input, 0.002 ms fast input, 0.005 ms fast input, 0.01 ms fast input, 0.05 ms fast input, 0., 0.5 ms fast input, 1 ms fast input, 4 ms fast input, 12 ms fast input
Electrical Connection	removable spring terminal block for inputs and outputs, removable spring terminal block for connecting the 24 V DC power supply
Insulation	between fast input and internal logic 550 V AC, non-insulated between inputs, between output and internal logic 550 V AC, non-insulated between outputs, between input and output 550 V AC, between supply and internal logic 550 V AC, non-insulated between supply and ground
Memory Capacity	32 MB program RAM, 32 MB OS/website RAM192 MB system memory RAM
Positioning Functions	libraries axes coordinated, libraries axes synchronous, Sercos 3 motion bus
Resistance To Conducted Disturbances	10 V 0.15...80 MHz IEC 61000-4-43 V 0.1...80 MHz, 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz)
Response Time	<= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output, <= 1 µs turn-off, Q0...Q3 fast output<= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-on, I0...I3 fast input, <= 1 µs turn-off, I0...I3 fast input, <= 1 µs turn-on, Q0...Q3 fast output, <= 1 µs turn-on, Q0...Q3 fast output
Vibration Resistance	1 gn 8.4-200 Hz panel mounting3.5 mm 2-8.4 Hz symmetrical rail1 gn 8.4-200 Hz symmetrical rail, 3.5 mm 2-8.4 Hz panel mounting
Voltage State 1 Guaranteed	>= 15 V DC, >= 15 V DC>= 15 V DC, >= 15 V DC
Maximum Number Of I/O Expansion Module	7 TM3 IO module (remote I/O-Architecture), 7 TM3 IO module (local I/O-Architecture), 64 TM3, TM5 or TM7 IO island (distributed I/O-Architecture)
Carbon Footprint Of The End-of-life Phase [C1 To C4]	0.42708, 0.4 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]	19 kg CO2 eq., 18.701
Local Data Status	Publishable
Return Indicator	Y
Stock Policy	2
Serviceability	Yes
Field Service Division	IDIBS
Manufacturing Carbon Footprint	18.701
Weee Scope	In
Scope Perimeter	At least in Europe
End Of Life Doc Ref	ENVEOLI1904006EN
Reach Full Compliance Status Id	CONTAINS_SVHC
Rohs Eur In Scope	No
Rohs Eur Conformity Date	1936
China Rohs In Scope	Yes
With Recycled Cardboard	Yes
Product Contributes To Saved And Avoided Emissions	No
Tier	1
Function Option	Advanced
Market Segmentation	Industrial
Cycle Time	0.5 ms
Encoder Type	incremental encoder
Overvoltage Protection	with
Inrush Current	40 A
Product Availability	Stock - Normally stocked in distribution facility
Range Of Product	Logic/motion controller - Modicon M262
Reset Time	200 ms automatic reset fast output
Resistance To Electrostatic Discharge	4 kV on contact IEC 61000-4-28 kV on air IEC 61000-4-2
Shock Resistance	15 gn 11 ms
Supply Voltage Limits	20.4-28.8 V DC
Total Lifecycle Carbon Footprint	1 204 kg CO2 eq.
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version	2016-11
Pcr Version	PCR-ed3-EN-2015 04 02
Data Source	referent product
Reference Lifetime In Y	10
Energy Model - Manufacturing [A1-a3]	Energy model used: Indonesia
Energy Model - Use [B6]	Electricity mix; AC; < 1kV; EU-27
Recyclability Potential In %	39
Width Nominal	125 mm
Discrete I/O Number	8
Nbr. Of Units In Pkg.	1
Take-back	No
Acidification Of Soil And Water (Kg.Equivalent.So2) Total Life Cycle	4.9807
Air Pollution (M3) Total Life Cycle	53336
Air Pollution (M3) Distribution [A4]	4.5445
Air Pollution (M3) End Of Life [C1-c4]	9.6348
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Manufacturing [A1-a3]	181.16
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Operational Energy Use [B6]	13446
Global Warming (Kg.Equivalent.Co2) Total Life Cycle	1203.8
Global Warming (Kg.Equivalent.Co2) Operational Energy Use [B6]	1184.6
Hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	14.657
Net Use Of Fresh Water (M3) Total Life Cycle	4295.3
Non-hazardous Waste Disposed Of (Kg) Total Life Cycle	4422.1
Non-hazardous Waste Disposed Of (Kg) Operational Energy Use [B6]	4416.6
Radioactive Waste Disposed Of (Kg) Operational Energy Use [B6]	2.9496
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	236.23
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	20650
Total Use Of Primary Energy During The Life Cycle (Mj) Total Life Cycle	23906
Total Use Of Primary Energy During The Life Cycle (Mj) Distribution [A4]	1.5105
Total Use Of Primary Energy During The Life Cycle (Mj) End Of Life [C1-c4]	1.3362
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Manufacturing [A1-a3]	9.2903
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	7.758
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	20881
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Distribution [A4]	1.5085
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) End Of Life [C1-c4]	1.3349
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	2.8172
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	6.4731
Water Pollution (M3) Total Life Cycle	50795
Water Pollution (M3) Distribution [A4]	17.568
Water Pollution (M3) Operational Energy Use [B6]	48880
Customs Code	8537109160

Persona Type Names	End User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Clock Drift	<= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C<= 10 s/month 25-25 °C, <= 10 s/month 25-25 °C
Data Storage Equipment	<= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional)<= 32 GB SDHC card optional), <= 32 GB SDHC card optional), <= 32 GB SDHC card optional)
Electromagnetic Emission	conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBµV/m30-230 kHz IEC 55011conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions230-1000 MHz IEC 55011
Local Signalling	1 LED (green/red) for PWR, 1 LED (green/red) for RUN, 1 LED (green/red) for ERROR (fault), 1 LED (green/red) for stop forced, 1 LED (green/red) for I/O error (I/O)1 LED (green/orange) for SD card activity, 1 LED (green/orange) for SL activity, 1 LED (green/red) for ETH1 state, 1 LED (green/red) for ETH2 state, 1 LED (green/red) for EIP MS, 1 LED (green/red) for EIP NS, 1 LED (green/red) for Sercos
Mounting Support	top hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Protection Type	short-circuit and overload protection with automatic reset, reverse polarity protection, short-circuit protection
Resistance To Fast Transients	2 kV IEC 61000-4-4 power lines)1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link), 1 kV IEC 61000-4-4 input), 1 kV IEC 61000-4-4 transistor output)
Upstream Connectivity	IIoT-ready machine to cloud, connected machine to plant
Voltage State 0 Guaranteed	<= 5 V DC, <= 5 V DC<= 5 V DC, <= 5 V DC
Certificate Agency	CE, cULus, cULus HazLoc Class I Division 2 CSA 22-2 No 213, RCM, EAC, Achilles, KC
Carbon Footprint Of The Distribution Phase [A4]	0.10683, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]	0 kg CO2 eq., 0.0086323
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]	1 185 kg CO2 eq., 1184.6
Local Publishable Date	2026-01-12
Stocking Flag	N
Device Type	PLC System - PLC CPU
Traceability	Yes
Average Life Duration	20 year(s)
Use Carbon Footprint	1184.6
Weee Product Category	5
Eoli Availability Display	Yes
Reach Full Compliance Status	Reference contains Substances of Very High Concern above the threshold
Reach Compliance Directive	Reference contains Substances of Very High Concern above the threshold
Rohs Eur Status	Compliant By Exemption
Rohs Eur Full Compliance Status	Compliant By Exemption
China Rohs Label	5
Without Single Use Plastic	Yes
Tier Id	1
Function Option Id	ADVANCED
Market Segmentation Id	INDUSTRIAL
Product Kit Identifier	N
Data Backed Up	1 GB built-in flash memory backup of user programs
Execution Time For 1 Kinstruction	0.003 ms
Immunity To Microbreaks	0.01 ms
Power Consumption In W	82 W
Product Or Component Type	Motion controller
Realtime Clock	with
Resistance To Electromagnetic Fields	10 V/m 80 MHz...1 GHz IEC 61000-4-33 V/m 1.4 GHz...2 GHz IEC 61000-4-31 V/m 2 GHz...3 GHz IEC 61000-4-3
Returnability	Yes
Software Version	EIME v5.8.1
Sustainable Packaging	Yes
Transmission Rate	115 kbit/s 15-15 m RS485115 kbit/s 3-3 m RS232480 Mbit/s 3-3 m USB10/100 Mbit/s Ethernet110/100/1000 Mbit/s Ethernet2
Pep Code	ENVPEP1904006EN
Pep Verification Date	2021-10-01
Type Of Verification For The Pep	Independent internal review
Functional-unit Description	For logic control of multiple input and output arrangements (TM262L) and for motion control of up to 16 synchronized axes, embedding a safety control application capable of attaining SIL3 (TM262M) 100% of the time for 10 years.
Energy Consumption On Product Lifetime In Kwh	2417.76
Energy Model - Installation [A5]	Electricity mix; AC; < 1kV; EU-27
Energy Model - End Of Life [C1-c4]	Electricity mix; AC; < 1kV; EU-27
Height Nominal	100 mm
[Us] Rated Supply Voltage	24 V DC - 15...20 %
Carbon Footprint (Kg Co2 Eq Total Life Cycle)	1203.8
Package Weight(Lbs)	850.0 g
Warranty (In Months)	18
Acidification Of Soil And Water (Kg.Equivalent.So2) Operational Energy Use [B6]	4.9412
Air Pollution (M3) Manufacturing [A1-a3]	2337.7
Air Pollution (M3) Operational Energy Use [B6]	50984
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Total Life Cycle	13630
Depletion Of Abiotic Resources - Fossil Fuels (Mj) Distribution [A4]	1.5009
Depletion Of Abiotic Resources - Fossil Fuels (Mj) End Of Life [C1-c4]	1.092
Global Warming (Kg.Equivalent.Co2) Manufacturing [A1-a3]	18.701
Hazardous Waste Disposed Of (Kg) Total Life Cycle	16.593
Hazardous Waste Disposed Of (Kg) End Of Life [C1-c4]	1.3184
Net Use Of Fresh Water (M3) Operational Energy Use [B6]	4295.1
Non-hazardous Waste Disposed Of (Kg) Manufacturing [A1-a3]	5.5234
Radioactive Waste Disposed Of (Kg) Total Life Cycle	2.953
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	20889
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Distribution [A4]	1.5085
Total Use Of Non-renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) End Of Life [C1-c4]	1.3349
Total Use Of Primary Energy During The Life Cycle (Mj) Manufacturing [A1-a3]	245.52
Total Use Of Primary Energy During The Life Cycle (Mj) Operational Energy Use [B6]	23658
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Total Life Cycle	3017.7
Total Use Of Renewable Primary Energy Resources (Primary Energy And Primary Energy Resources Used As Raw Materials) (Mj) Operational Energy Use [B6]	3008.4
Use Of Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	7.758
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Manufacturing [A1-a3]	228.47
Use Of Non-renewable Primary Energy Excluding Non-renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	20650
Use Of Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	2.8172
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Total Life Cycle	3014.9
Use Of Renewable Primary Energy Excluding Renewable Primary Energy Resources Used As Raw Materials (Mj) Operational Energy Use [B6]	3008.4
Water Pollution (M3) Manufacturing [A1-a3]	1876.5
Water Pollution (M3) Installation [A5]	1.3092
Water Pollution (M3) End Of Life [C1-c4]	19.339

Environment Attributes Main

Ambient Air Temperature For Operation	-20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-50 °C vertical installation), -20-45 °C flat mounting), -20-45 °C flat mounting)-20-60 °C horizontal installation), -20-60 °C horizontal installation), -20-50 °C vertical installation), -20-45 °C flat mounting)
Relative Humidity	10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
Recycled Metal Content At Cr Level	0 %
Mercury Free	Yes
Circularity Profile	ENVEOLI1904006EN
Eu Rohs Directive	Compliant By Exemption
Operating Altitude	0...6561.68 ft (0...2000 m)
Packaging Without Single Use Plastic	Yes
Reach Regulation	Reference contains Substances of Very High Concern above the threshold
Pep Code	ENVPEP1904006EN
Pcr Version	PCR-ed3-EN-2015 04 02

Ambient Air Temperature For Storage	-40-85 °C, -40-85 °C
Take Back	No
China Rohs Regulation	X
Carbon Footprint	1203.8
Environmental Disclosure	ENVPEP1904006EN
Ip Degree Of Protection	IP20
Packaging Made With Recycled Cardboard	Yes
Product Compatibility	external encoder 5/24 V DC no encoder power supply
Storage Altitude	0-3000 m
Pep Verification Date	2021-10-01
Type Of Verification For The Pep	Independent internal review

General Attributes

Product Or Component Type	Motion controller

Range Of Product	Logic/motion controller - Modicon M262

ETIM

ETIM 8	EC000236

ETIM 9	EC000236

Output Attributes

Discrete Output Current	0.5 A fast output Q0...Q3)
Discrete Output Number	4 transistor fast output
Discrete Output Voltage	24 V DC
Maximum Output Frequency	300 kHz

Discrete Output Logic	source
Discrete Output Type	transistor
Maximum Current Per Output Common	0.5 A Q0...Q3 fast output
Output Voltage Limits	30 V DC

Surge Protection And Filtering Attributes

Configurable Filtering Time	0.001 ms fast input, 0.002 ms fast input, 0.005 ms fast input, 0.01 ms fast input, 0.05 ms fast input, 0., 0.5 ms fast input, 1 ms fast input, 4 ms fast input, 12 ms fast input

Surge Withstand	1 kV power lines (DC) common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV relay output differential mode IEC 61000-4-5, 1 kV input common mode IEC 61000-4-5, 1 kV transistor output common mode IEC 61000-4-5
