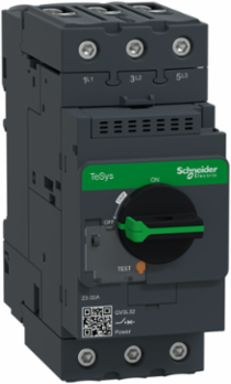

Schneider Electric GV3L32 TeSys Deca Motor Circuit Breaker 3P 32A Magnetic Rotary Handle
Schneider Electric GV3L32 TeSys Deca Motor Circuit Breaker 3P 32A Magnetic Rotary Handle
- MPN: GV3L32
- PPN: SCH-GV3L32
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Loading dialog...
Looking to buy a large quantity?
To view product inventory
CAD$435.69/ EA
Description
TeSys GV motor circuit breaker, 3 poles (3P), 32A/690V, for 3-phase motor applications 15kW@400V. It provides a magnetic protection with a tripping level at 14xIn, high breaking capacity Icu 100kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary handle guaranteed for 50 000 cycles AC-3. To complete motor protection, use it in association with a thermal overload relay LRD332 (to be ordered separately). Multi standards certified (IEC, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Specifications
Environment
- Product Certifications
- CCC || UL || CSA || EAC || LROS (Lloyds register of shipping) || BV || ABS || DNV-GL || UKCA
- Ambient Air Temperature For Operation
- -20-60 °C
- Climatic Withstand
- IACS E10
- Ip Degree Of Protection
- IP20 IEC 60529
- Fire Resistance
- 960 °C IEC 60695-2-11
Mechanical Robustnessshocks 15 Gn for 11 ms contactor open || shocks 30 Gn for 11 ms contactor closed || vibrations 4 Gn, 5...300 Hz
StandardsEN/IEC 60947-2 || EN/IEC 60947-4-1 || UL 60947-4-1 || CSA C22.2 No 60947-4-1
Ambient Air Temperature For Storage-40-80 °C
Operating Altitude3000 m
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP060901
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Eu Rohs Directive
- Compliant with Exemptions
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
WeeeThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Circularity ProfileENVEOLI060901
Complementary
- [In] Rated Current
- 32 A

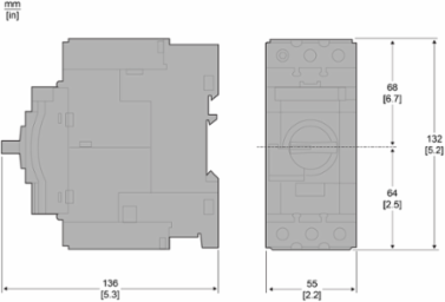

- Height
- 132 mm
- Magnetic Tripping Current
- 448-448 A
- Utilisation Category
- category A IEC 60947-2
- Fixing Mode

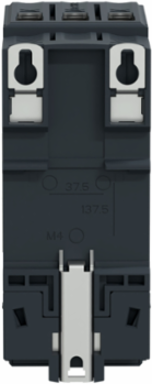

- 35 mm symmetrical DIN rail clipped || panel screwed with 3 x M4 screws)
- [Ics] Rated Service Short-Circuit Breaking Capacity
- 100 % 230/240 V AC 50/60 Hz || 100 % 400/415 V AC 50/60 Hz || 100 % 440 V AC 50/60 Hz || 50 % 500 V AC 50/60 Hz || 50 % 690 V AC 50/60 Hz
- Power Dissipation Per Pole
- 8 W
- [Ui] Rated Insulation Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- Suitability For Isolation
- yes IEC 60947-1
- Mechanical Durability
- 50000 cycles
- Colour
- dark grey
- Depth
- 136 mm
[Ue] Rated Operational Voltage690 V AC 50/60 Hz IEC 60947-2
Network TypeAC
Motor Power Kw15-15 kW 400/415 V AC 50/60 Hz || 18.5-18.5 kW 500 V AC 50/60 Hz || 22-22 kW 690 V AC 50/60 Hz
Net Weight0.96 kg
[Uimp] Rated Impulse Withstand Voltage6 kV IEC 60947-2
Control Typerotary handle
Electrical Durability50000 cycles AC-3 415 V In
Breaking Capacity100 kA Icu 230/240 V AC 50/60 Hz || 100 kA Icu 400/415 V AC 50/60 Hz || 50 kA Icu 440 V AC 50/60 Hz || 12 kA Icu 500 V AC 50/60 Hz || 6 kA Icu 690 V AC 50/60 Hz
Tightening Torque5 N.m screw clamp terminal
Poles Description3P
Width55 mm
Network Frequency50/60 Hz
Specifications
- Product Or Component Type
- motor circuit breaker
- Range
- TeSys Deca
- Device Short Name
- GV3L
Product NameTeSys GV3 || TeSys Deca
Device Applicationmotor protection
Trip Unit Technologymagnetic
