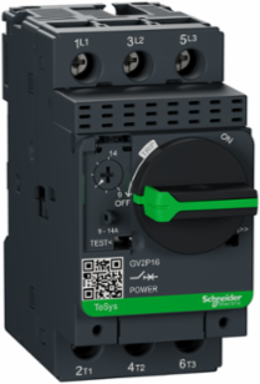

Schneider Electric GV2P16 TeSys Deca Motor Circuit Breaker 3-Phase 14A Thermal-Magnetic
- MPN: GV2P16
- PPN: SCH-GV2P16
CAD
$223.23
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Loading dialog...
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Spec sheet
Description
The GV2 manual starter and protector provides manual isolation, manual motor control, and thermal overcurrent protection in one compact unit. The basic motor starter GV2P controls motors with full load currents up to 32 A. The manual starter is three pole with horsepower ratings. The manual starter is operated by a rotary handle. The Class 10 ambient compensated thermal over current is adjustable from 9 ampere to 14 ampere. This device has screw clamp terminals. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).
Features
- The Schneider GV2P16 is a 3-pole (3P) manual motor circuit breaker from the TeSys Deca (formerly TeSys GV2) range. It provides comprehensive motor control and protection in a single compact device, combining the functions of a manual disconnect, short-circuit protection, and thermal overload protection.
- The GV2P16 features an adjustable thermal trip setting of 9 to 13 Amps. This range is specifically designed for small to medium 3-phase motors. For example, it is typically used for 5.5 kW motors at 400/415V or approximately 7.5 HP to 10 HP at 480V/600V (depending on the motor's specific FLA). The adjustable dial allows you to calibrate the protection precisely to your motor's nameplate data.
- Despite its small size, this breaker is engineered for high-performance safety. It offers an ultimate short-circuit breaking capacity (Icu) of 100kA at 400/415V and 42kA at 480V (UL/CSA). This "high breaking capacity" rating means it can safely interrupt even massive electrical faults without failing, protecting your downstream equipment and personnel.
- Unlike the "push-button" style of the GV2ME series, the GV2P16 uses an ergonomic rotary handle. This handle provides clear visual status (ON, OFF, TRIP) and is designed for high durability, guaranteed for 100,000 mechanical and electrical cycles. The rotary design also allows for easy integration with door-mounted extended handle kits for control panel exteriors.
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, Costa Rica, France, United Kingdom, Thailand, United States
Depth97 mm
Physical Attributes
- Color
- dark grey
Complementary Attributes
- Line Rated Current
- 14 A
- Rated Duty
- uninterrupted IEC 60947-4-1
Maximum Operating Rate25 cyc/h
Important Information Attributes
- Persona Type Ids
- EU, LC, OM, OM8, PB, SC
- Market Segmentation Id
- COMMERCIAL, INDUSTRIAL
- Electrical Durability
- 100000 cycles AC-3 415 V In, 100000 cycles AC-3e 415 V In
- Motor Power Kw
- 5.5-5.5 kW 400/415 V AC 50/60 Hz7.5-7.5 kW 500 V AC 50/60 Hz9-9 kW 690 V AC 50/60 Hz, 11-11 kW 690 V AC 50/60 Hz
- Range Of Product
- TeSys GV2, TeSys Deca
- Certificate Agency
- CCC, UL, CSA, EAC, ATEX, LROS (Lloyds register of shipping), BV, RINA, DNV-GL, UKCA
- Connections - Terminals
- power circuit: screw clamp terminal 2 cable(s) 1-6 mm² - solid, power circuit: screw clamp terminal 2 cable(s) 1.5-6 mm² - flexible without cable end, power circuit: screw clamp terminal 2 cable(s) 1-4 mm² - flexible with cable end
- Carbon Footprint Of The End-of-life Phase [C1 To C4]
- 0.5472314673555232, 0.5 kg CO2 eq.
- Carbon Footprint Of The Manufacturing Phase [A1 To A3]
- 2 kg CO2 eq., 1.9839778765972182
- Local Data Status
- Publishable
- Return Indicator
- Y
- Stock Policy
- 2
- Serviceability
- No
- Field Service Division
- PPIBS
- Service Catalog Item
- Finished good
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 3
- Without Single Use Plastic
- Yes
- Tier Id
- 1
- Function Option Id
- STANDARD
- Product Kit Identifier
- N
- Control Type
- rotary handle
- Device Short Name
- GV2P
- Magnetic Tripping Current
- 253.4-253.4 A
- Mechanical Robustness
- shocks 30 Gn for 11 msvibrations 5 Gn, 5...150 Hz
- Network Type
- AC
- Phase Failure Sensitivity
- yes IEC 60947-4-1
- Product Availability
- Stock - Normally stocked in distribution facility
- Product Or Component Type
- motor circuit breaker
- Returnability
- Yes
- Suitability For Isolation
- yes IEC 60947-1
- Thermal Protection Adjustment Range
- 9-14 A IEC 60947-2
- Total Lifecycle Carbon Footprint
- 42 kg CO2 eq.
- Weee Label
- The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
- Pep Code
- ENVPEP2211002EN
- Pep Verification Date
- 2026-04-17
- Psr Version
- PSR-0005-ed3-2023 06 06
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime In Y
- 20
- Energy Model - Manufacturing [A1-a3]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Energy Model - Use [B6]
- Electricity Mix; Low voltage; 2020; Europe, EU-27
- Recyclability Potential In %
- 51
- Width Nominal
- 45 mm
- [Ue] Rated Operational Voltage
- 690 V AC 50/60 Hz IEC 60947-2
- [Uimp] Rated Impulse Withstand Voltage
- 6 kV IEC 60947-2
- Package Weight(Lbs)
- 336.000 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Contractor, Original Equipment Manufacturer, OEM - Control Panelbuilder, Panel Builder, Electrician
Market SegmentationCommercial, Industrial
Fixing Mode35 mm symmetrical DIN rail clipped, panel screwed with 2 x M4 screws)
Mounting Positionhorizontal, vertical
Utilisation Categorycategory A IEC 60947-2AC-3 IEC 60947-4-1, AC-3e IEC 60947-4-1
[Ics] Rated Service Short-circuit Breaking Capacity100 % 230/240 V AC 50/60 Hz IEC 60947-2, 100 % 400/415 V AC 50/60 Hz IEC 60947-275 % 440 V AC 50/60 Hz IEC 60947-2, 75 % 500 V AC 50/60 Hz IEC 60947-2, 100 % 690 V AC 50/60 Hz IEC 60947-2
Carbon Footprint Of The Distribution Phase [A4]0.0923095728029102, 0.1 kg CO2 eq.
Carbon Footprint Of The Installation Phase [A5]0 kg CO2 eq., 0.03680775299710592
Carbon Footprint Of The Use Phase [B2 B3 B4 B6]40 kg CO2 eq., 39.83372946850174
Local Publishable Date2026-07-07
Stocking FlagN
Device TypeLV equipment - Low voltage circuit breaker
TraceabilityNo
Average Life Duration15 year(s)
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI2211002
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeYes
Rohs Eur Conformity Date1936
China Rohs In ScopeNo
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier1
Function OptionStandard
Compatibility CodeGV2P
Device Applicationmotor protection
Fire Resistance960 °C IEC 60695-2-11
Mechanical Durability100000 cycles
Network Frequency50/60 Hz IEC 60947-2
Number Of Poles3P
Power Dissipation Per Pole2.5 W
Product NameTeSys GV2
RangeTeSys Deca
Software Versionv6.2.4
Sustainable PackagingYes
Tightening Torque1.7 N.m screw clamp terminal
Trip Unit Technologythermal-magnetic
R Thermal Protection Adj Range 39-14 A
Database Version2024-01
Pcr VersionPEP-PCR-ed4-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionProtect the installation from overloads and short circuits in a circuit with rated voltage Ue, rated current In, with Np poles, a rated breaking capacity Icu, and, if applicable, the specific specifications, in the Industrial application area, according to the appropriate use scenario, and during the reference service life of the product of 20 years.
Functional-unit Unitunit
Energy Consumption On Product Lifetime In Kwh98.55
Energy Model - Installation [A5]No energy used
Energy Model - End Of Life [C1-c4]Global, European and French datasets are used.
Height Nominal89 mm
[Ith] Conventional Free Air Thermal Current14 A IEC 60947-2
[Ui] Rated Insulation Voltage690 V AC 50/60 Hz IEC 60947-2
Nbr. Of Units In Pkg.1
Take-backNo
Customs Code8536200020
Environment Attributes Main
- China Rohs Regulation
- Product out of China RoHS scope , Product out of China RoHS scope. Substance declaration for your information.
- Take Back
- No
- Mercury Free
- Yes
- Ambient Air Temperature For Operation
- -20-60 °C-20-60 °C
- Climatic Withstand
- IACS E10
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- <= 6561.68 ft (2000 m)<= 6561.68 ft (2000 m)
- Packaging Without Single Use Plastic
- Yes
- Pep Code
- ENVPEP2211002EN
- Pcr Version
- PEP-PCR-ed4-2021 09 06
- Type Of Verification For The Pep
- Independent internal review
Ambient Air Temperature For Storage-40-80 °C, -40-80 °C
Recycled Metal Content At Cr Level0 %
Carbon Footprint42.49405613825449
Circularity ProfileENVEOLI2211002
Environmental DisclosureENVPEP2211002EN
Ip Degree Of ProtectionIP20 IEC 60529
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep Verification Date2026-04-17
Psr VersionPSR-0005-ed3-2023 06 06
General Attributes
- Range Of Product
- TeSys GV2, TeSys Deca
Product Or Component Typemotor circuit breaker
ETIM
- ETIM 8
- EC000074
ETIM 9EC000074
Contractual Warranty Attributes
- Warranty Period
- 18 months
Warranty18 months
