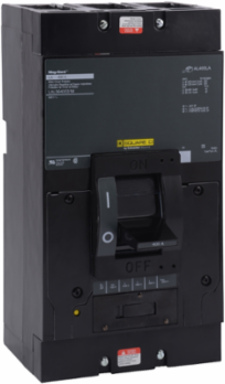

Square D LAL3640031M Motor circuit protector, LA, unit mount, 400A, 3 pole, 22kA, 600VAC, 10kA, 250VDC

Motor circuit protector, LA, unit mount, 400A, 3 pole, 22kA, 600VAC, 10kA, 250VDC

Square D LAL3640031M Motor circuit protector, LA, unit mount, 400A, 3 pole, 22kA, 600VAC, 10kA, 250VDC

MPN: LAL3640031M
UPC: 785901358381
PPN: SCH-LAL3640031M

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

Description

Motor circuit protector, LA, unit mount, 400A, 3 pole, 22kA, 600VAC, 10kA, 250VDC

Specifications

Complementary

Terminal Identifier: AL400LA

Mounting Mode: unit mount

Magnetic Tripping Current: 2250-2250 A

[In] Rated Current: 400 A

Electrical Connection: lugs, load || lugs, line

Magnetic Hold Current: 1125 A

Height11 in

Tightening Torque13-13 N.m 42-304 mm² AWG 1...600 kcmil) || 13-13 N.m 42-127 mm² AWG 1...250 kcmil)

Poles Description3P

Width6 in

Depth5.84 in

Environment

Product Certifications: IEC || UL listed || CSA

Offer Sustainability

China Rohs Regulation: Product out of China RoHS scope. Substance declaration for your information

Rohs Exemption Information: Yes

Environmental Disclosure: ENVPEP1410004EN

Pvc Free: Yes

Reach Regulation: Reference contains Substances of Very High Concern above the threshold

Circularity ProfileN/A

Mercury FreeYes

Sustainable Offer StatusGreen Premium product

Eu Rohs DirectiveCompliant with Exemptions

Halogen Content PerformanceHalogen free plastic parts product

Specifications

Trip Unit Technology: thermal-magnetic

Product Or Component TypeMotor Circuit Protector
