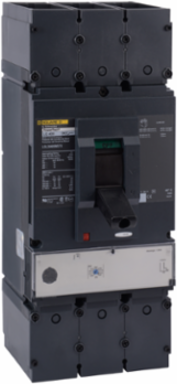

Square D LGL36400M37X Motor circuit protector, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 1.3M, 80%
Square D LGL36400M37X Motor circuit protector, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 1.3M, 80%
- MPN: LGL36400M37X
- UPC: 785901435785
- PPN: SCH-LGL36400M37X
Spec sheet
Loading compare button...
Available to Order
Company Stock:
0
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
Description
Motor circuit protector, PowerPacT L, 400A, 3 pole, 600VAC, 18kA, lugs, MicroLogic 1.3M, 80%
Specifications
Environment
- Ambient Air Temperature For Operation
- -25-70 °C
- Ambient Air Temperature For Storage
- -50-85 °C
- Product Certifications
- UL || CSA || NOM
- Ip Degree Of Protection
- front cover IP40
Pollution Degree3 IEC 60947-1
StandardsUL || CSA || NEMA || NOM-003-SCFI-2000 || IEC 60947-2
Operating Altitude< 2000 m without derating || 5000 m with derating
Contractual warranty
- Warranty
- 18 months
Offer Sustainability
- China Rohs Regulation
- Product out of China RoHS scope. Substance declaration for your information
- Rohs Exemption Information
- Yes
- Environmental Disclosure
- ENVPEP2206029EN
- Pvc Free
- Yes
- Reach Regulation
- Reference contains Substances of Very High Concern above the threshold
Circularity ProfileENVEOLI2206029EN
Mercury FreeYes
Sustainable Offer StatusGreen Premium product
Eu Rohs DirectiveCompliant with Exemptions
Complementary
- Circuit Breaker Application
- HACR rated
- Network Frequency
- 50/60 Hz
- Terminal Identifier
- AL600LS52K3
- [In] Rated Current
- 400-400 A
- Trip Unit Technology
- electronic, standard, MicroLogic 1.3 M, I
- Height
- 340 mm
- [Ui] Rated Insulation Voltage
- 750 V IEC 60947-2
- Communication Interface
- Modbus || Ethernet
- Tightening Torque
- 50-50 N.m 70-240 mm² AWG 2/0...500 kcmil)
- Breaking Capacity Code
- G
- Poles Description
- 3P
- Awg Gauge
- 2 x AWG 2/0...500 kcmil aluminum/copper
- Width
- 140 mm
- Electrical Connection
- lugs, line || lugs, load
- Net Weight
- 6.2 kg
- Control Type
- toggle
Mounting Modeunit mount lug)
Wire Stripping Length31 mm || 61 mm
Utilisation Categorycategory A
[Ics] Rated Service Breaking Capacity65 kA 220/240 V AC 50/60 Hz IEC 60947-2 || 35 kA 380/440/415 V AC 50/60 Hz IEC 60947-2 || 18 kA 500/525 V AC 50/60 Hz IEC 60947-2 || 20 kA 250 V DC IEC 60947-2 || 20 kA 500 V DC IEC 60947-2
Trip Unit NameMicroLogic 1.3 M
Breaking Capacity65 kA 240 V AC 50/60 Hz UL 489 || 35 kA 480 V AC 50/60 Hz UL 489 || 18 kA 600 V AC 50/60 Hz UL 489 || 20 kA 250 V DC UL 489 || 20 kA 500 V DC UL 489
Suitability For Isolationyes IEC 60947-2
[Ue] Rated Operational Voltage600 V AC 50/60 Hz IEC 60947-3
Mounting Supportlug
Magnetic Tripping Current500-1200 A
Local Signallingready 1 LED green) || switched off (OFF) 1 trip indicator green)
Colourblack
Protection Technologycurrent limiter
Depth110 mm
[Uimp] Rated Impulse Withstand Voltage8 kV IEC 60947-2
Specifications
- Product Or Component Type
- Motor Circuit Protector
- Device Application
- distribution
- Range
- PowerPact
Product NamePowerPact L
Device Short NameL-Frame
