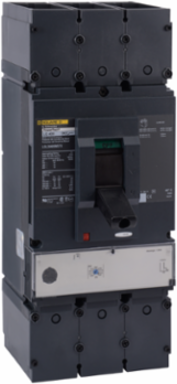

Square D LLL36400M37X PowerPacT L Motor Circuit Protector 400A 3 Pole 600VAC 50kA
- MPN: LLL36400M37X
- UPC: 785901477594
- PPN: SCH-LLL36400M37X
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
The PowerPacT L Motor Circuit Protector from Schneider Electric is engineered to deliver reliable protection for motor applications with its impressive 400A capacity. This three-pole unit is designed for use in 600VAC systems and provides robust short-circuit protection with a rating of 50kA, ensuring your electrical systems operate safely and efficiently. Ideal for power distribution environments, this molded case circuit breaker combines advanced technology with durable construction, making it a critical component for safeguarding motors and associated equipment. Its thoughtful design not only enhances operational reliability but also simplifies installation and maintenance, making it an essential choice for industrial applications.
Documentation & Downloads
Specifications
Additional
- Amperage
- 400 A
- Breaking Capacity
- 125 kA 240 V AC, 100 kA 480 V AC, 50 kA 600 V AC, 20 kA 250 V DC, 50 kA 500 V DC UL 489
- Rated Impulse Withstand Voltage
- 8 kV IEC 60947-2
- Rated Insulation Voltage
- 750 V IEC 60947-2
- Protection Technology
- Current limiter
- AWG Gauge
- 2 x AWG 2/0...500 kcmil aluminum/copper
- Mounting Mode
- Unit mount lug
- Power Wire Stripping Length
- 31 mm, 61 mm (1.22 in, 2.40 in)
- Width
- 140 mm (5.51 in)
- Net Weight
- 6.2 kg (13.67 lb)
- Circuit Breaker Application
- HACR rated
- Product Certifications
- UL, CSA, NOM
- Pollution Degree
- 3 IEC 60947-1
- Ambient Air Temperature for Storage
- -50 to 85 °C (-58 to 185 °F)
- Color
- Black
- RoHS Compliance
- Compliant with Exemptions
- PVC Free
- Yes
Voltage600 V AC 50/60 Hz IEC 60947-3
Rated Service Breaking Capacity125 kA 220/240 V AC, 100 kA 380/440/415 V AC, 50 kA 500/525 V AC, 20 kA 250 V DC, 20 kA 500 V DC IEC 60947-2
Magnetic Tripping Current500-1200 A
Trip Unit TechnologyElectronic, standard, MicroLogic 1.3 M
Suitability for IsolationYes IEC 60947-2
Local Signalling1 LED green, 1 trip indicator green
Tightening Torque50 N.m (442.54 lbf.in)
Height340 mm (13.39 in)
Depth110 mm (4.33 in)
Communication InterfaceModbus, Ethernet
StandardsUL, CSA, NEMA, NOM-003-SCFI-2000, IEC 60947-2
IP Degree of ProtectionFront cover IP40
Ambient Air Temperature for Operation-25 to 70 °C (-13 to 158 °F)
Operating Altitude< 2000 m without derating, up to 5000 m with derating
Country of OriginUS
Mercury FreeYes
Warranty18 months
